Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
64 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

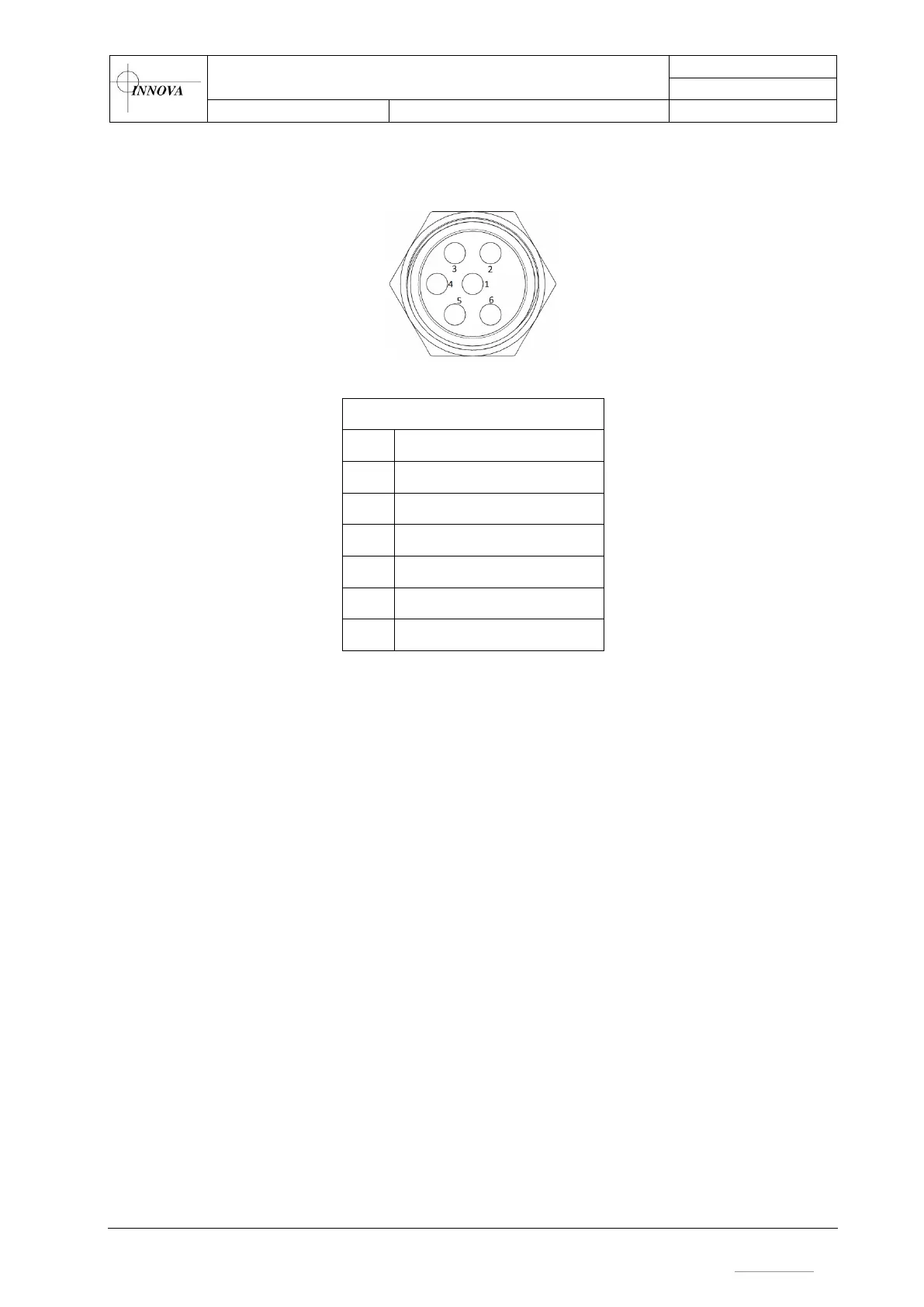

6.19 C12 – 110VAC RS232 Interface
6.19.1 Subsea
Seacon MCBH6F
PIN
FUNCTION
1
110/230VAC L1
2
110/230VAC L2
3
PE
4
RS232 0V
5
RS232 Tx (Downlink)
6
RS232 Rx (Uplink)
Recommended mates for Seacon MCBH6F: Seacon MCIL6M
