Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
41 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

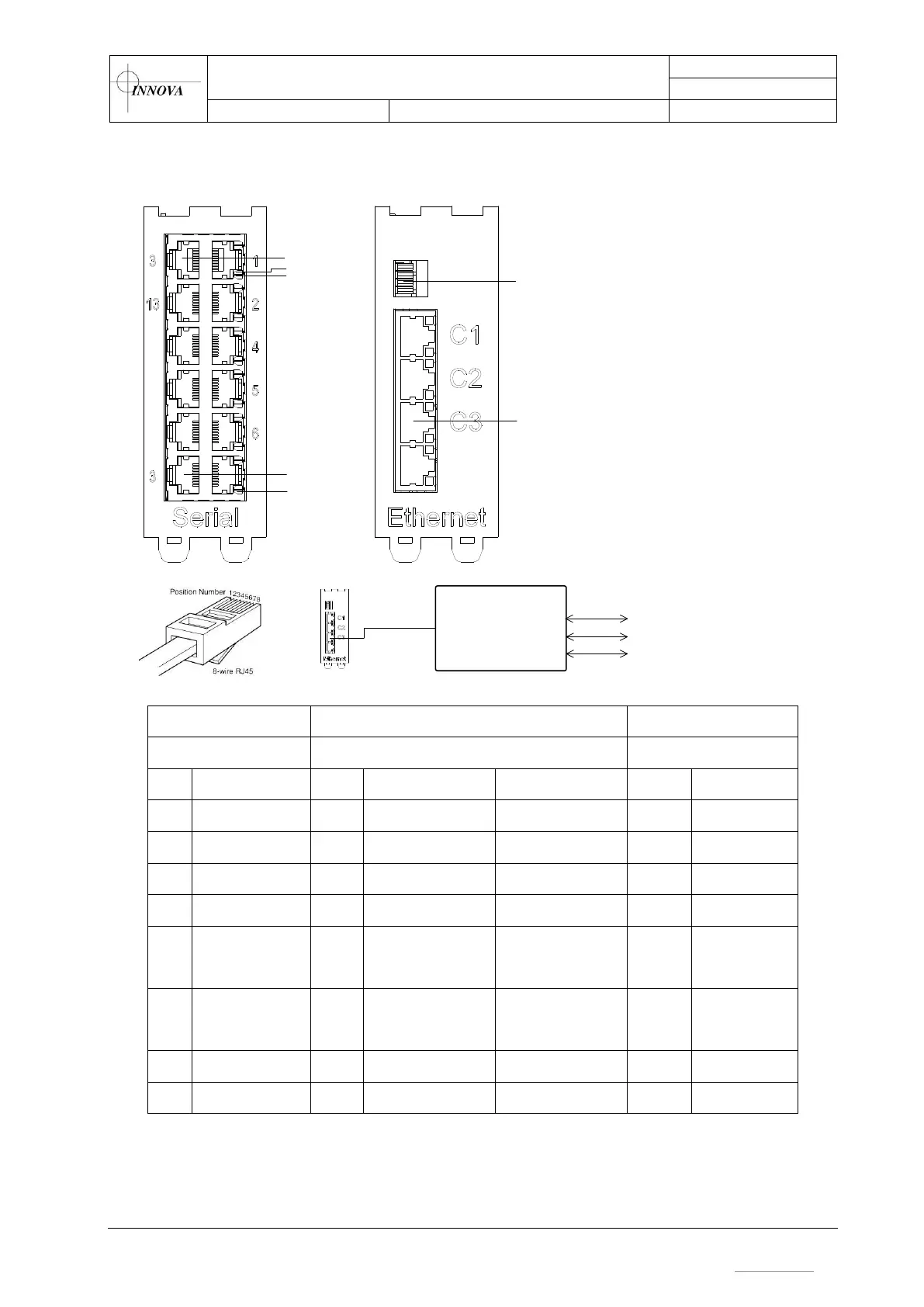

6.7.1 Topside
C3 RX LED
C3 TX LED
C3 RS232/RS485
C3 Gbit jumper
default off
C3 Ethernet
C3 TTL 5V
C3 TTL TX LED
Serial Interface
Ethernet Interface
TTL Interface
RJ-45 (3 - Top)
RJ-45(C3)
RJ-45 (3 - Bottom)
Pin
Function
Pin
Function
Color
Pin
Function
1
N/C
1
Eth, BiDir A+
White/Orange
1
TTL – 5V
2
RS485 +
2
Eth, BiDir A-
Orange
2
N/C
3
RS485 -
3
Eth, BiDir B+
White/Green
3
N/C
4
Serial - 0V
4
Eth, BiDir C+
Blue
4
N/C
5
RS232 – RX
(Downlink)
5
Eth, BiDir C-
White/Blue
5
N/C
6
RS232 – TX
(Uplink)
6
Eth, BiDir B-
Green
6
N/C
7
N/C
7
Eth, BiDir D+
White/Brown
7
N/C
8
N/C
8
Eth, BiDir D-
Brown
8
TTL – 0V
Ethernet
Switch
Ch1
Ch2
Ch3
Ch4
C3 – Multi interface (100Mbps)
C3 – Multi interface (100Mbps)
C9 – Multi interface (100Mbps)
