Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
63 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

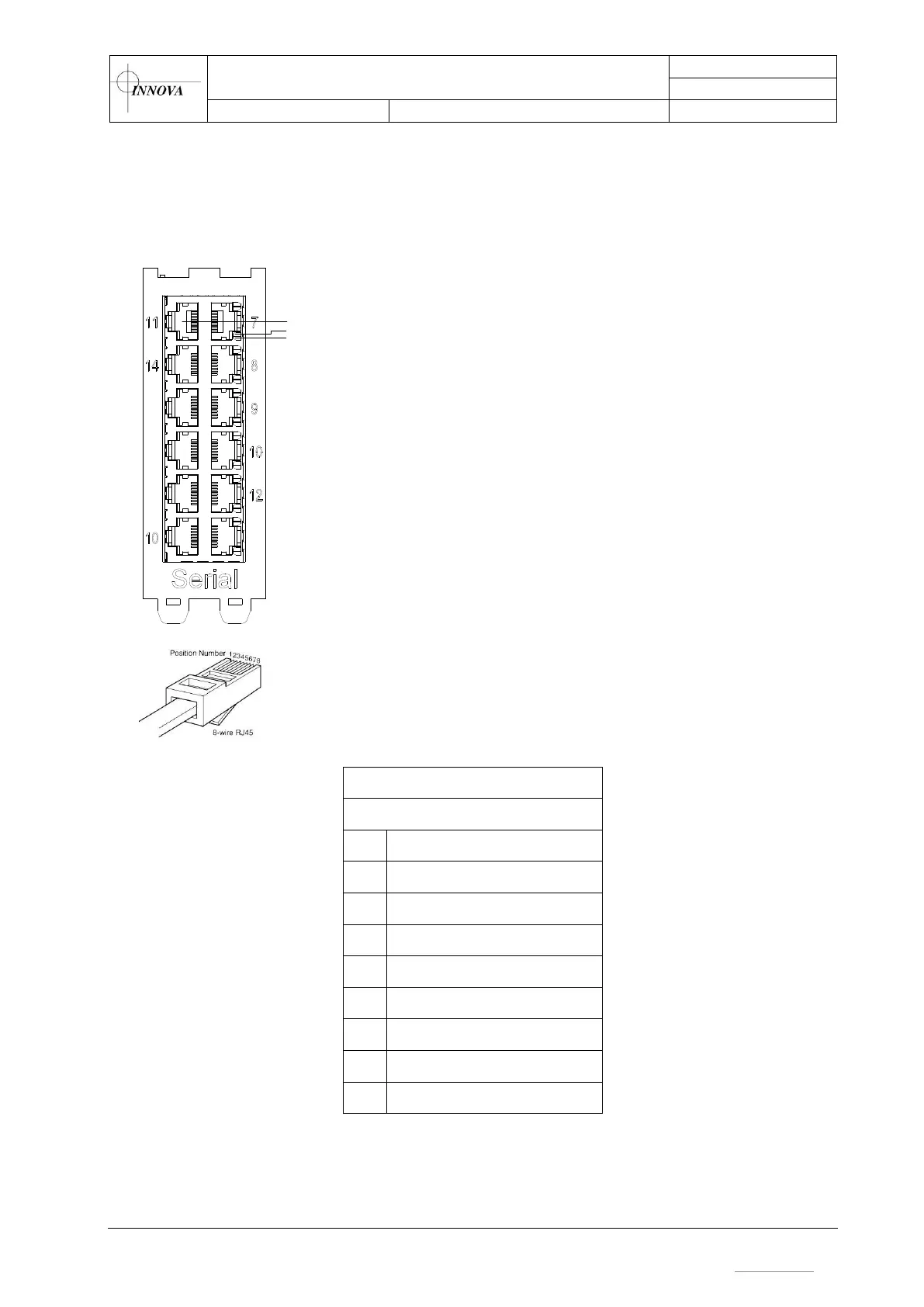

6.18.2 Topside
C11 RX LED
C11 TX LED
C11 RS232
RS232/RS485 Interface
RJ-45(11)
Pin
Function
1
N/C
2
RS485 +
3
RS485 -
4
Serial - 0V
5
RS232 – RX (Downlink)
6
RS232 – TX (Uplink)
7
N/C
8
N/C
