3.4.3 Configuring the outputs
Before powering up the subsea equipment, each output should be configured correctly according
to the requirements of the connected devices. Please refer to section 3.3 for considerations on
where and how to connect different types of equipment. A plan for this should be made prior to
configuring the outputs.
Important: Before powering up any sensors, make sure that the output voltages on
C1 and C2 are set to match the power requirements of the connected equipment (24
or 48 VDC). Damage to equipment may occur if powered up with incorrect voltage.
For safety reasons, 24 and 48 VDC are routed to different pins on the output connectors. Please
refer to Appendix A for pinouts.
The outputs are configured as follows:
- Press the "CONTROL" button on the top left side of the touch screen to return to the
operation screen.

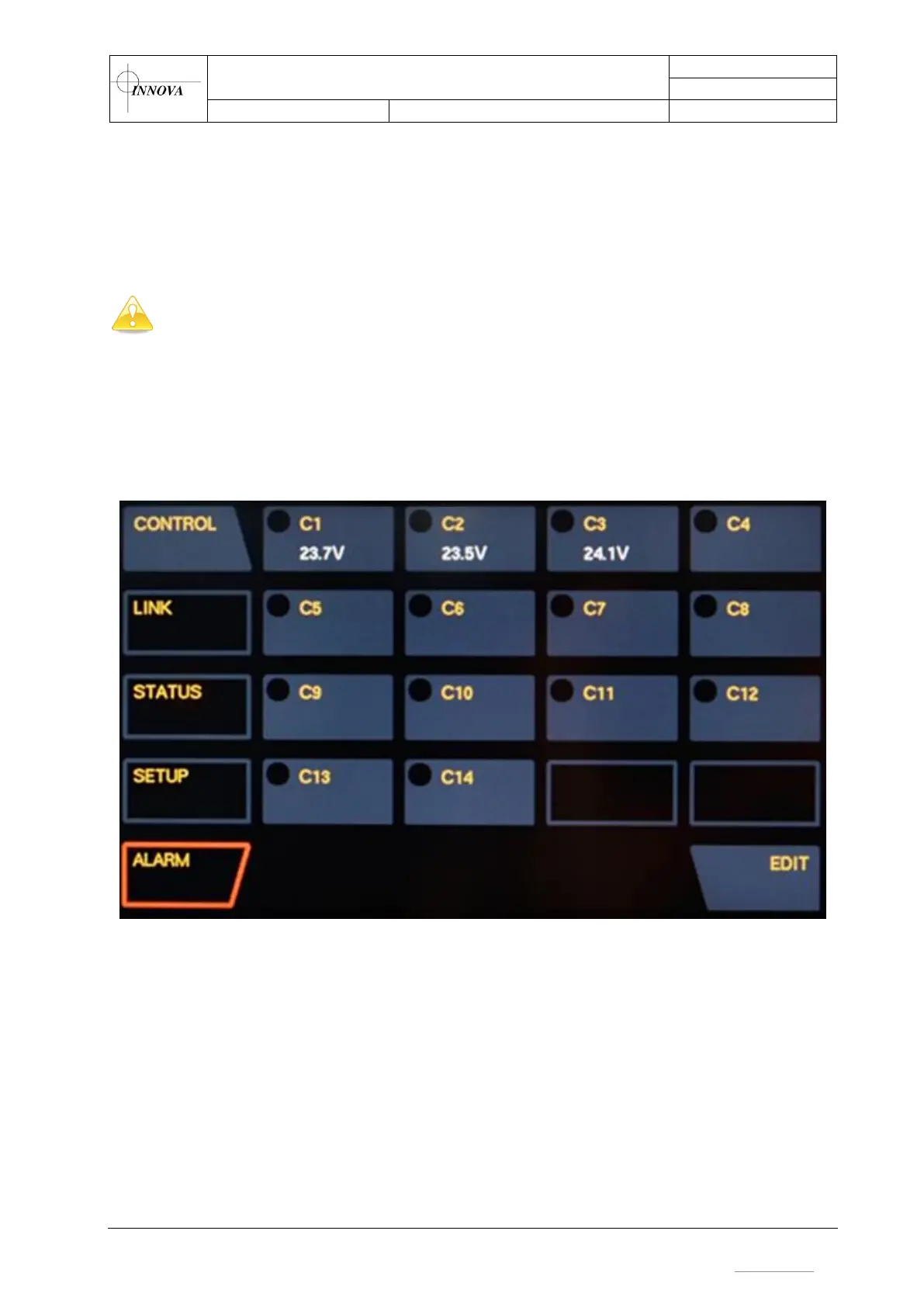

Figure 7 - CONTROL screen
- Press the "EDIT" button on the bottom right side of the touch screen.
