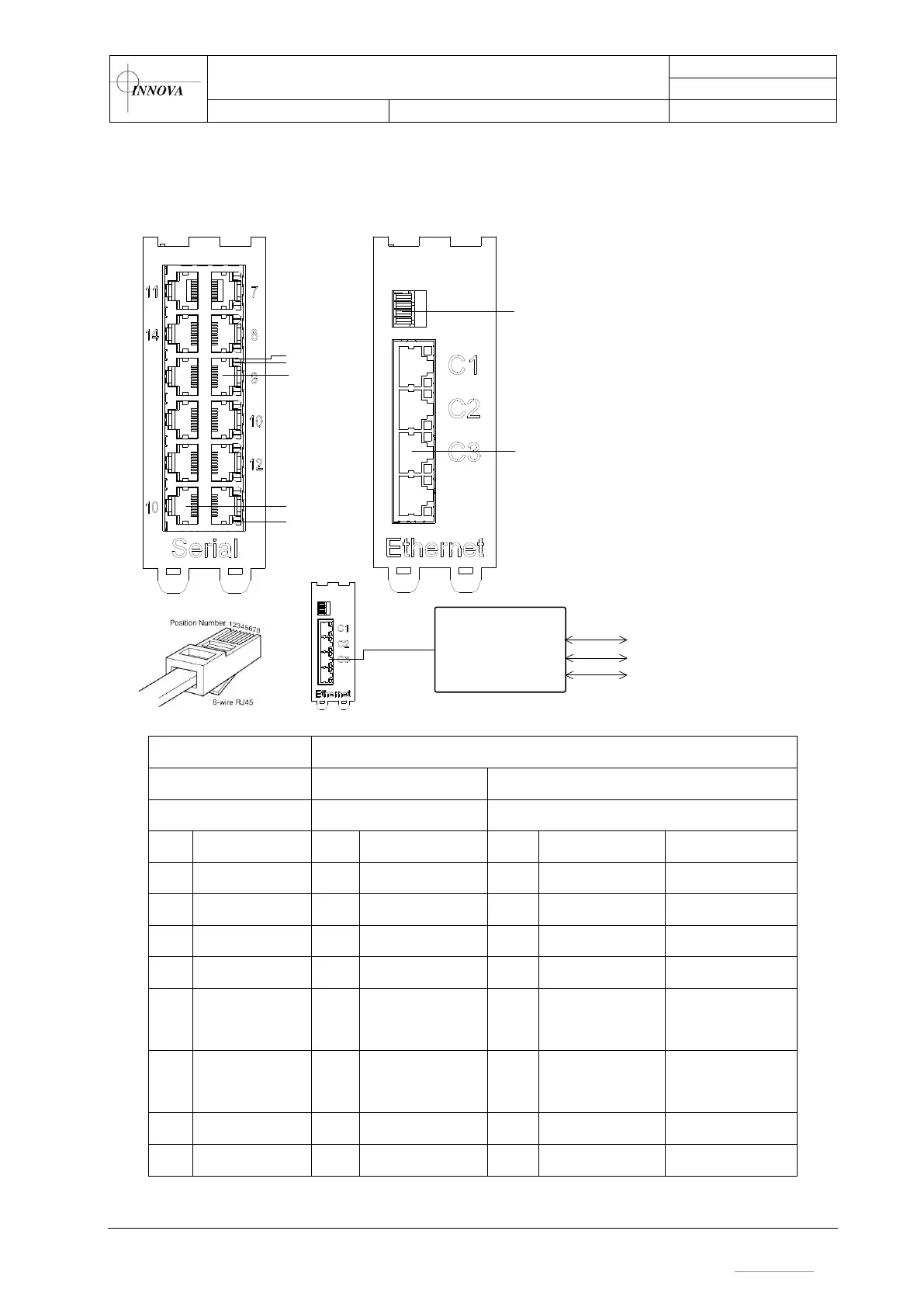

6.16.2 Topside
C9 RX LED OPTIONAL
C9 TX LED OPTIONAL
C9 RS232 OPTIONAL
C3 Gbit jumper
(default off)
C3/C9 Ethernet
C10/C9 TTL TX LED
C10/C9 TTL 5V
OPTIONAL
STANDARD
RS232 Interface
TTL Interface
Ethernet interface
RJ-45 (9)
RJ-45 (10 - Bottom)
RJ-45 (C3)
Pin
Function
Pin
Function
Pin
Function
Color
1
N/C
1
TTL – 5V
1
Eth, BiDir A+
White/Orange
2
N/C
2
N/C
2
Eth, BiDir A-
Orange
3
N/C
3
N/C
3
Eth, BiDir B+
White/Green
4
RS232 - 0V
4
N/C
4
Eth, BiDir C+
Blue
5
RS232 – RX
(Downlink)
5
N/C
5
Eth, BiDir C-
White/Blue
6
RS232 – TX
(Uplink)
6
N/C
6
Eth, BiDir B-
Green
7
N/C
7
N/C
7
Eth, BiDir D+
White/Brown
8
N/C
8
TTL – 0V
8
Eth, BiDir D-
Brown
Ethernet
Switch
Ch1
Ch2
Ch3
Ch4
C3 – Multi interface (100Mbps)
C3 – Multi interface (100Mbps)
C9 – Multi interface (100Mbps)
This connection
has to be 1Gbps
