Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
68 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

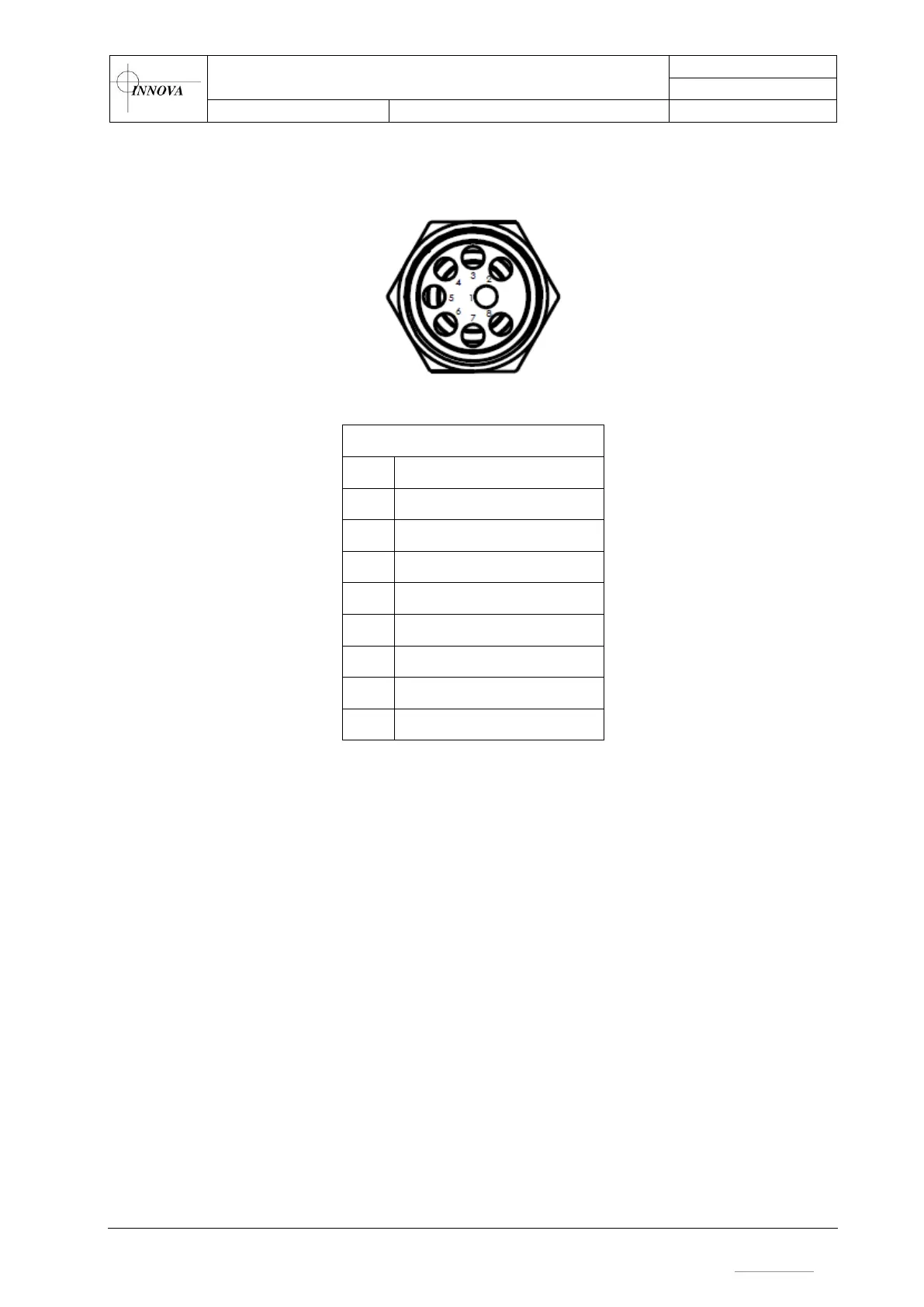

6.21 C14 – RS232/RS485 Interface
6.21.1 Subsea
MCBH8F
PIN
FUNCTION
1
0V
2
24V
3
N/C
4
Serial 0V
5
RS232 Tx (Downlink)
6
RS485+
7
RS232 Rx (Uplink)
8
RS485-
Recommended mates for Seacon MCBH8F: Seacon MCIL8M
