Innova Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
29 of 74
Project No.:
604653
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no
Matrix
Serial
Board
Ch1
Ch2
Ch3
Ch4
LINK
AV
ELECTRIC
Matrix Serial #1
Ch5
Ch6
Ch7
Ch8
Ch9
Internally used
C8 RS232
N/C
C10 RS232
C12 RS232
C11 RS232/RS485
C14 RS232/RS485
C10 5V TTL/PPS
C7 RS232

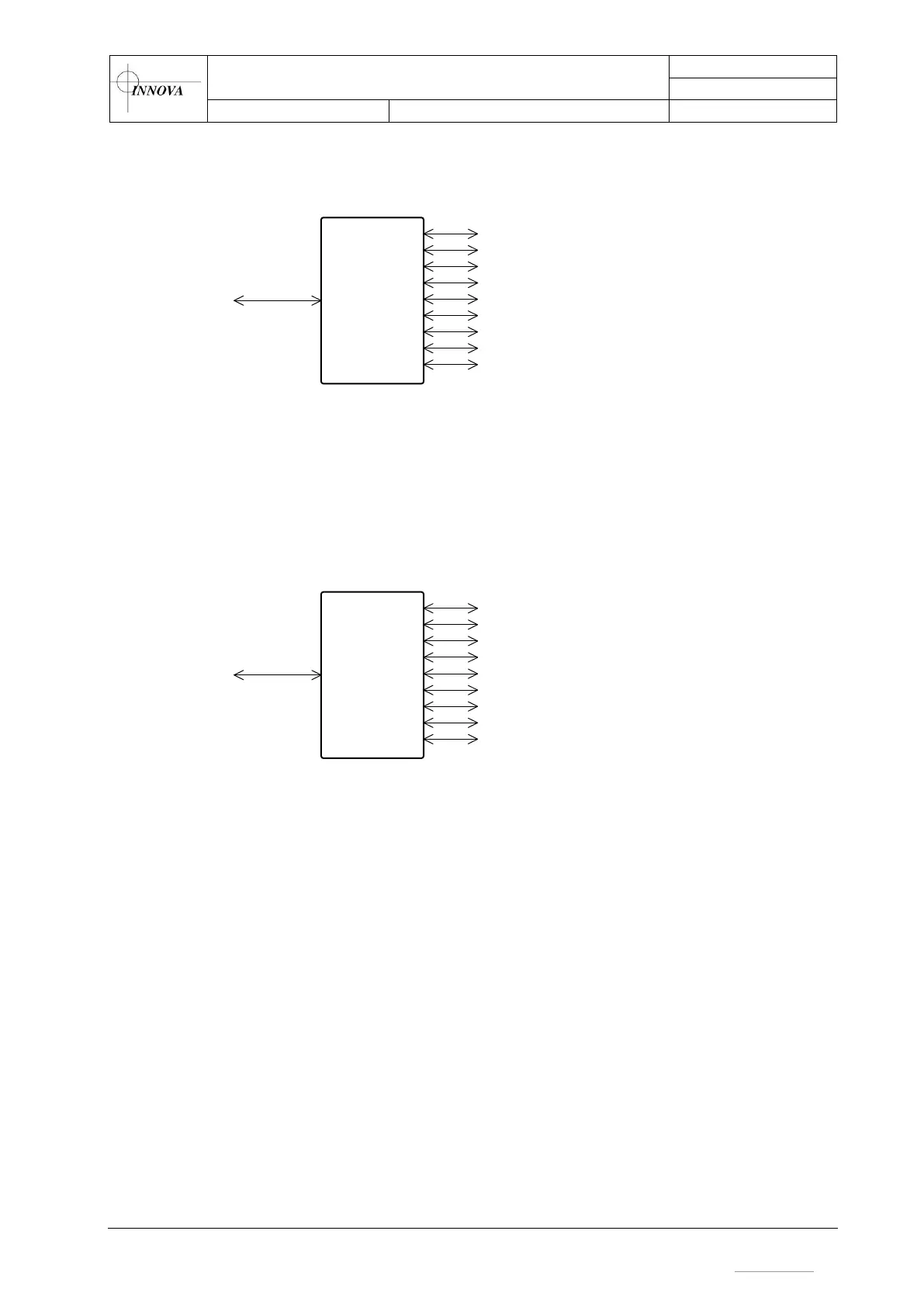

Figure 14 Matrix Serial board #1
Matrix
Serial
Board
Ch1
Ch2
Ch3
Ch4
LINK
AV
ELECTRIC
Matrix Serial #2
Ch5
Ch6
Ch7
Ch8
Ch9
Internally used
C2 RS232
C4 RS232
C5 RS232
C6 RS232
C3 RS232/RS485
C13 RS232/RS485
C3 5V TTL/PPS
C1 RS232
Figure 15 Matrix Serial board #2
5.2.11 DV camera (optional)
The Matrix subsea canister is configured for 3 HD-SDI DV camera channels. Channel 1 to 3 on
the LINK DV board is used for camera 1 to 3. Control of the cameras is by a dedicated RS232
link for each of the cameras. The LINK serial extension board number 2 channel 1 to 3 is used
for controlling camera 1 to 3.
