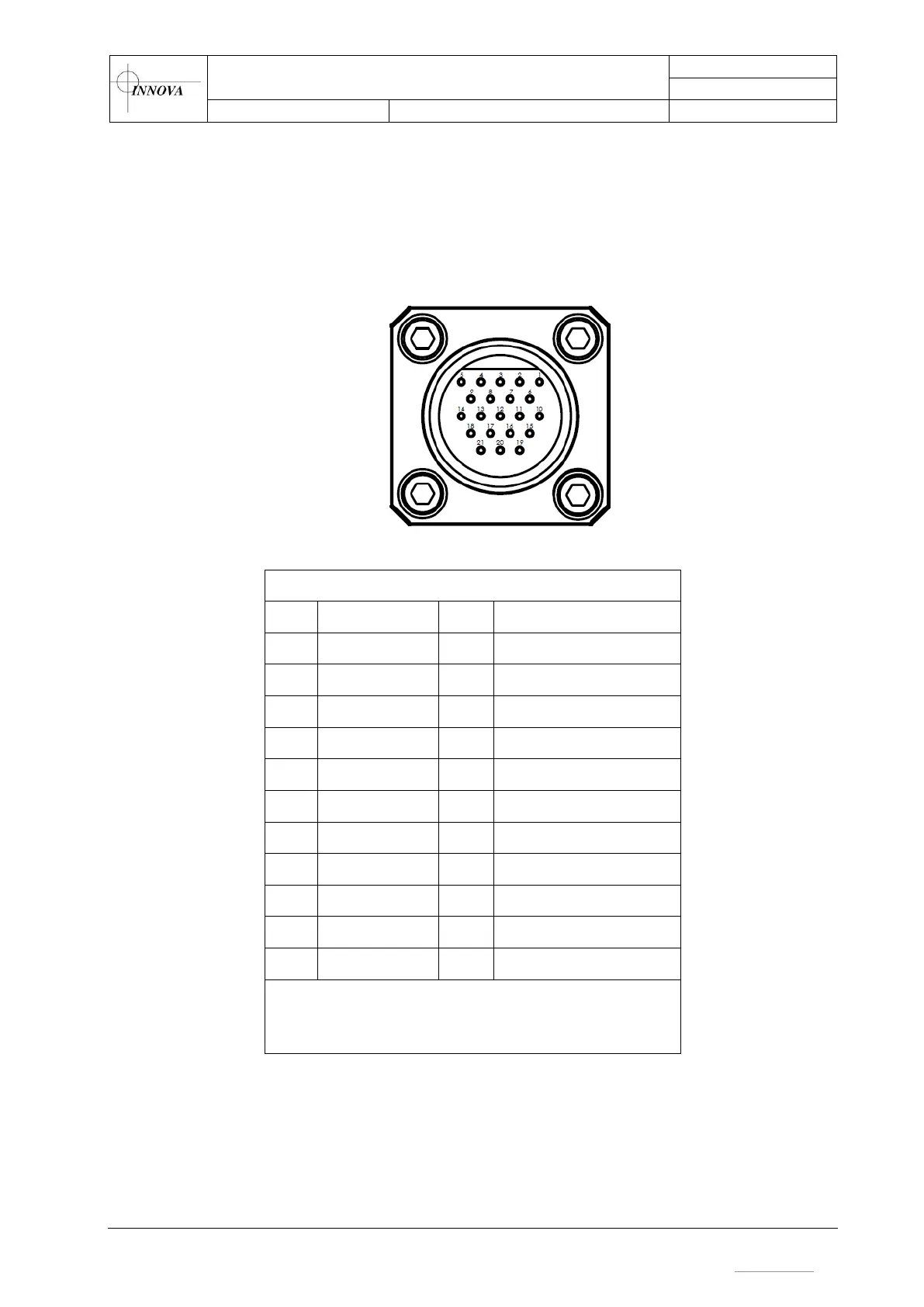

6.7 C3 – Multi Interface connector
Power output:
• Hardware switchable 48VDC or 24VDC 150W Max (Not client accessable)
• Fuse size settable in software, Max 6A
• Software resettable fuse
Seacon 5506-2021
PIN
FUNCTION
PIN
FUNCTION
1
Eth, Rd- 1
12
RS485+
2
Eth, Rd+ 1
13
Eth, Td+ 2
3
Trigger
14
Eth, Td- 2
4
Eth, Rd- 2
15
RS232/RS485 0V
5
Eth, Rd+ 2
16
RS232 Tx (Downlink)
6
48VDC*
17
RS232 Rx (Uplink)
7
0V
18
NC
8
24VDC*
19
NC
9
RS485-
20
Trigger 0V
10
Eth, Td- 1
21
NC
11
Eth, Td+ 1
* Standard set-up is 24VDC output voltage; pin 8 is
NC in this case. The unit can be modified to output
48VDC
Recommended mates for Seacon 5506-2021: Seacon 55A1-2021 or Seacon 5501-2021
