4. STATUS DISPLAY
In this chapter, you will find a description of all possible messages and operations
using the Status Display.
4.1. STATUS DISPLAY OVERVIEW
The Status Display of the Intel® Cockpit Controller (CTR) shows all relevant information
for flying.

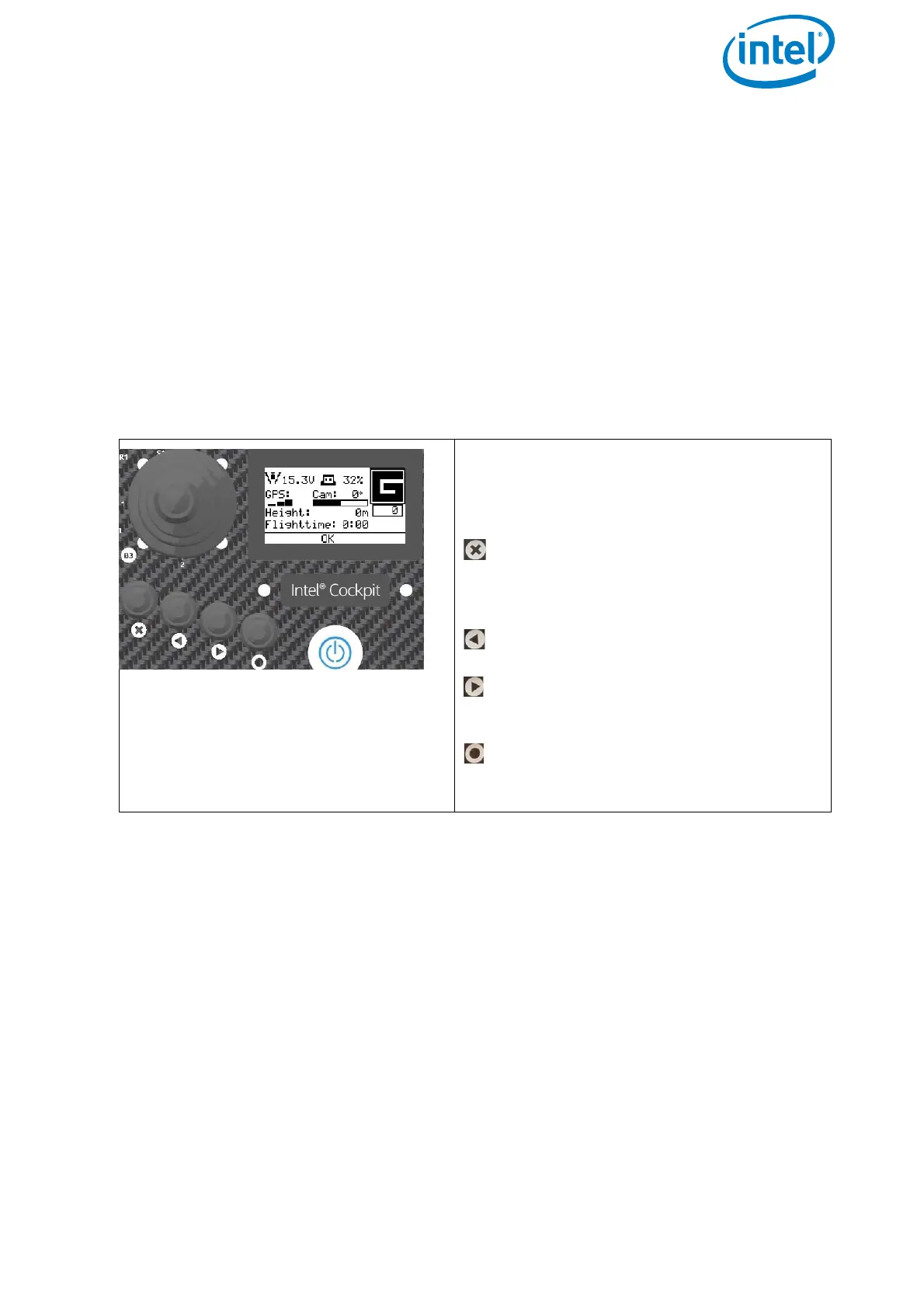

Figure 4.1: Status Display
On the Status Display you can view the
current settings and adjust specific func-
tions of the UAV. To do so, you use the
four buttons.
Escape (left side) is used to leave
menus / sub-menus and to clear func-
tions. In the following text, it is dis-
played as ESC.
With the LEFT arrow button (middle,
left side),
and the RIGHT arrow button (middle,
right side) you can scroll through
menus or alter parameters.
Enter (right side) is used to enter
menus and activate functions. In the
following text, it’s displayed as ENT.
