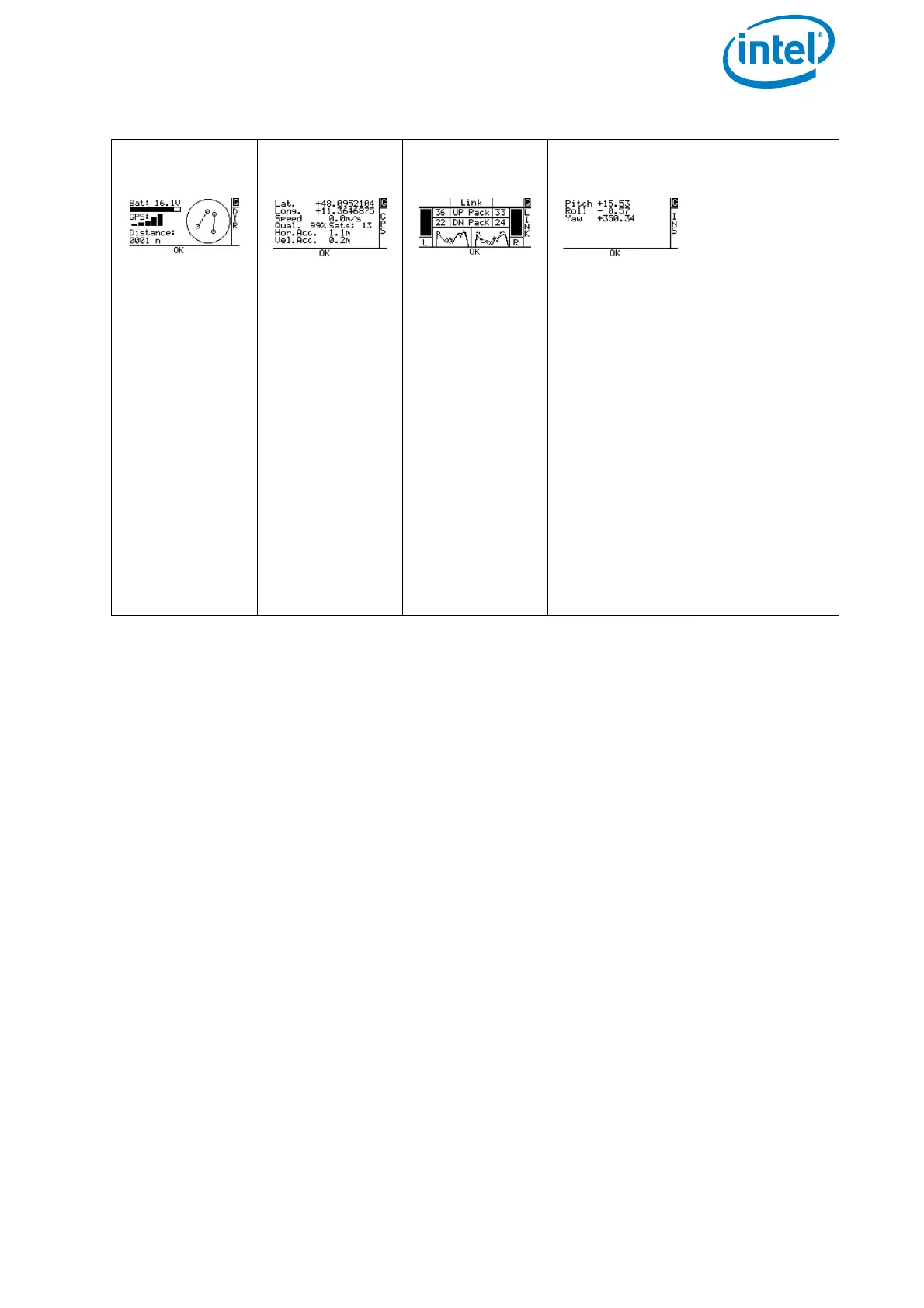

Orientation
Screen
shows:
• Battery sta-
tus
• GPS signal
strength
• Distance to
Home Posi-
tion
•UAV Orien-
tation
• Possible
warnings
• Flight
mode
GPS Info
Screen
shows:
• Latitude
• Longitude
• Speed
• Reception
quality
• Horizontal
accuracy
• Velocity
accuracy
• Possible
Warnings
• Flight
mode
Data Link
Screen
shows:
• Left and
right trans-
mitting and
receiving
packages
• Graph
•analyzer
• Signal
quality
• Possible
warnings
• Flight
mode
Attitude
Angles Screen
shows:
• Pitch Angle
• Roll Angle
• Yaw Angle
• Possible
warnings
• Flight
mode
Table 4.1: Status Display Menu Structure (Continued)
