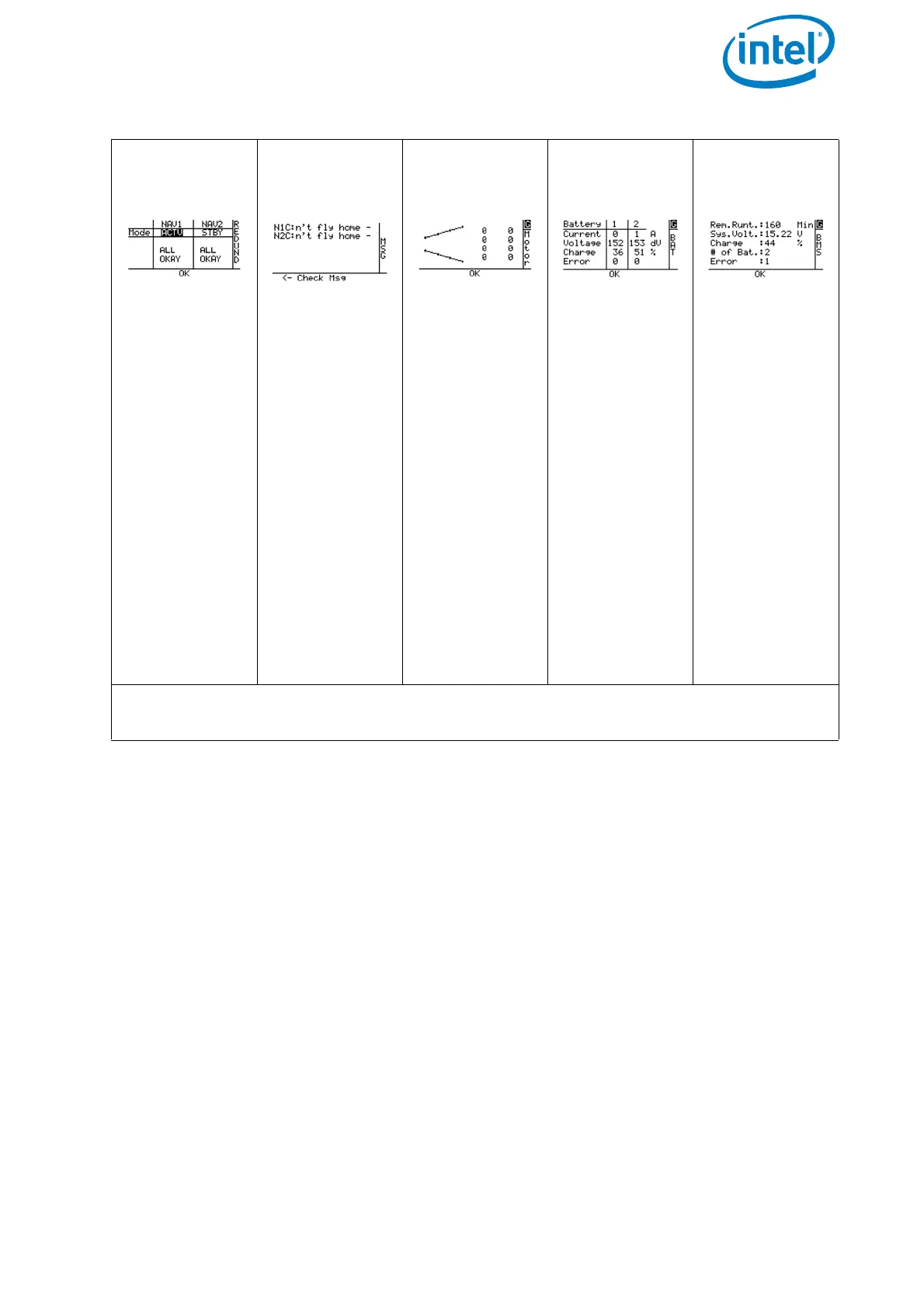

Flight control-
ler Screen
shows:
•NAV1
•NAV2
• Warnings
• Redun-
dancy
• Possible
warnings
Error Message
Screen
(optional)
shows:
• Possible
flight con-
troller (e.g.
N1C/N2C)
For system
warnings see
“AscTec Trin-
ity Control
Unit System
Warnings” on
page 129.
Motor Screen
shows:
• Graphic of
the Intel®
Falcon™ 8+
UAV with
spinning
propellers
• Speed of
each pro-
peller (as a
coefficient)
• Flight
mode
Battery Screen
shows for bat-
tery 1 and 2:
• Actual cur-
rent in
ampere (A)
•Actual sys-
tem volt-
age in
decivolt
(dV)
•Charge
state of
each bat-
tery in per-
cent
• Number of
errors
BMS Screen
shows:
• Remaining
runtime of
the UAV in
minutes
•Actual UAV
voltage
• Charge
state of the
UAV in per-
cent
• Number of
batteries
inserted
• Number of
errors
Pushing the RIGHT/LEFT arrow buttons in these screens brings you back to the Main
Screen.
Table 4.1: Status Display Menu Structure (Continued)
