USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2017 Intel Corporation. All rights reserved 150
4.1.2. The Main Information Screens
The following section describes the nine main information screens of the Status
Display in detail.
Figure 4.2: Main Information Screens

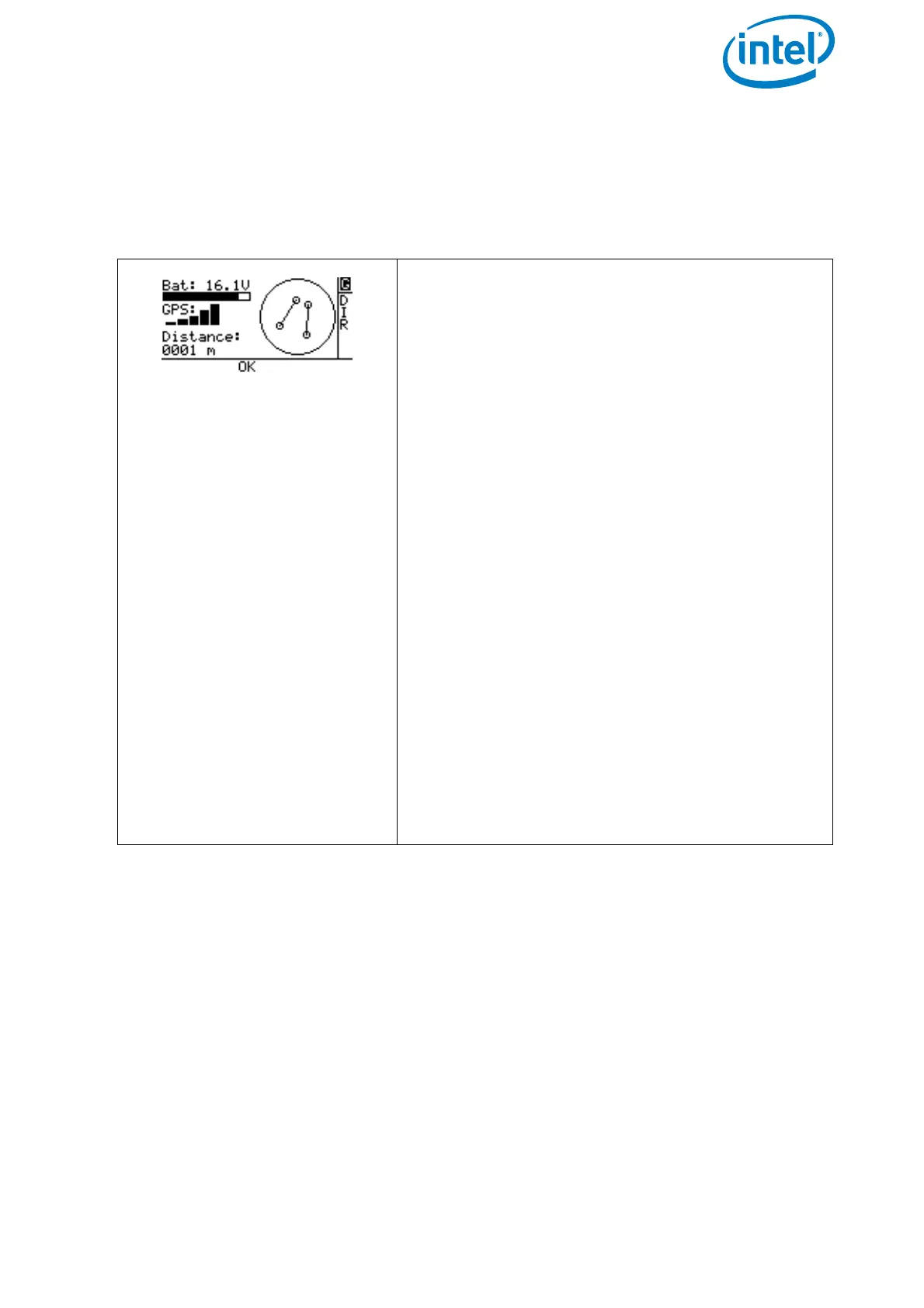

Orientation Screen
Displays the UAV orientation regarding its starting
position. The displayed V-shape of the UAV will
turn respectively when the heading of the Intel®
Falcon™ 8+ UAV is changed. This can be of help
when the orientation of the UAV is difficult to see
in low contrast situations such as when flying in
front of dark trees. The screen shows the follow-
ing information:
Bat: 16.1V = Voltage level of the Intel® Fal-
con™ 8+ UAV battery. This is the same informa-
tion as on the Main Screen.
G = Flight Mode. This is the same information as
on the Main Screen.
GPS = Quality indicator of the GPS signal. This is
the same information as on the Main Screen.
Distance = Direct line of sight distance
between UAV and Home Position, and only visible
when airborne at a distance of at least 10 m.
Graphical display of UAV orientation = Orienta-
tion of the UAV regarding the Home Position, and
only visible when airborne at a distance of at least
10 m.
OK = Status line. Same information as on
the Main Screen.
