Images can later be processed with photogrammetry software as with any regular
preplanned mapping flight. More complex flights should be planned and performed
with the AscTec Navigator Software.

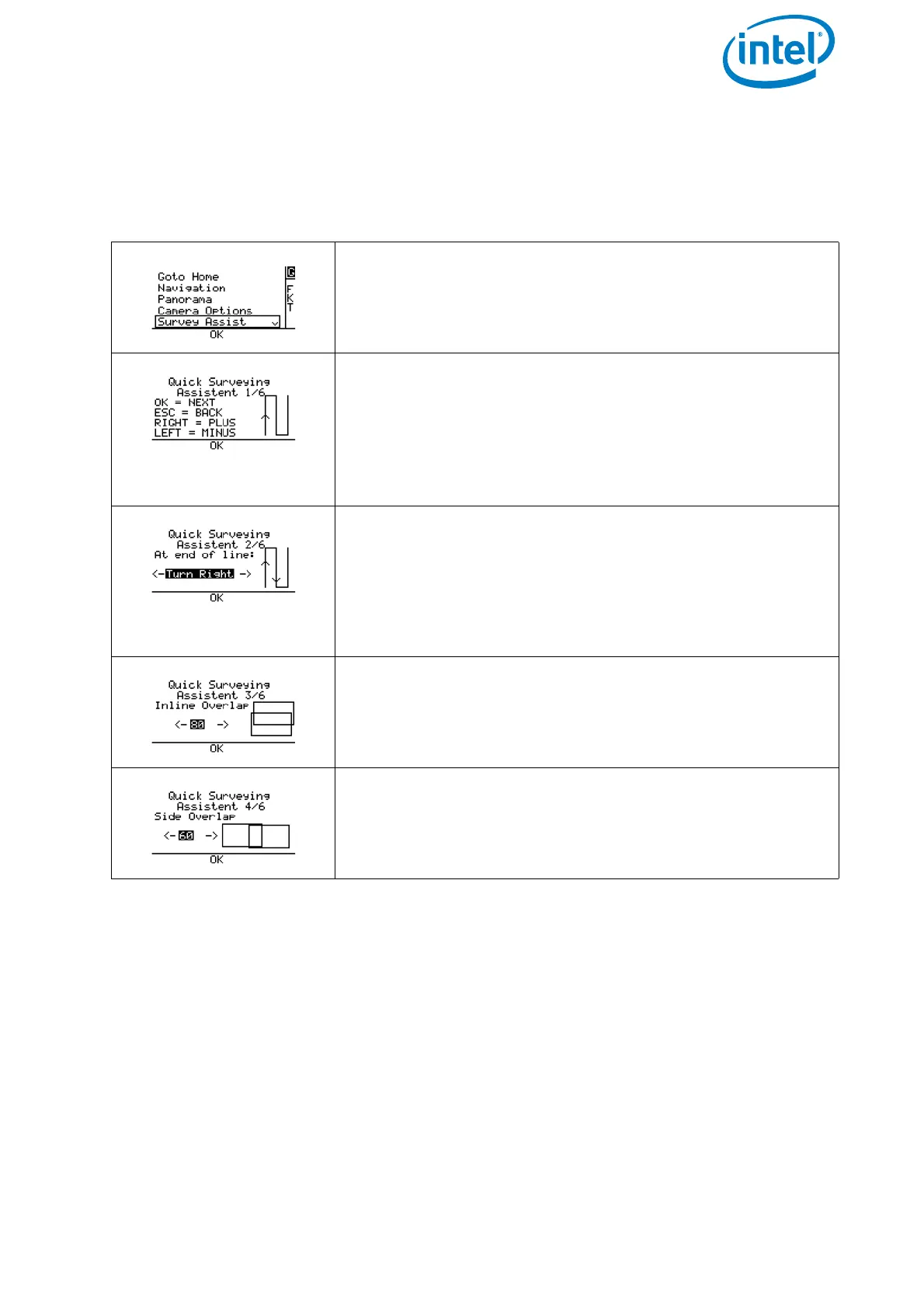

Figure 5.4: Quick Surveying Assistant
Pushing ENT in the Main Screen opens the screen to the
left.
Use the arrow RIGHT/LEFT button to select
Survey Assist and push ENT.
An introduction screen is opened, explaining the com-
mands to navigate the menu.
Pushing ENT opens the next screen.
Pushing ESC brings you back to the previous screen.
Use the arrow LEFT/RIGHT button to increase or
decrease values.
At the end of line: Define the direction in which
the Intel® Falcon™ 8+ UAV turns after completing the first
line of images.
Use the arrow RIGHT/LEFT button to select Turn
Right
or Turn Left and push ENT. The next screen
opens.
Inline Overlap: Define the percentage of image
overlap in the direction of flight (along track).
Side Overlap: Define the percentage of image overlap
between the lines (cross track).
To Next Page
