USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2017 Intel Corporation. All rights reserved 31

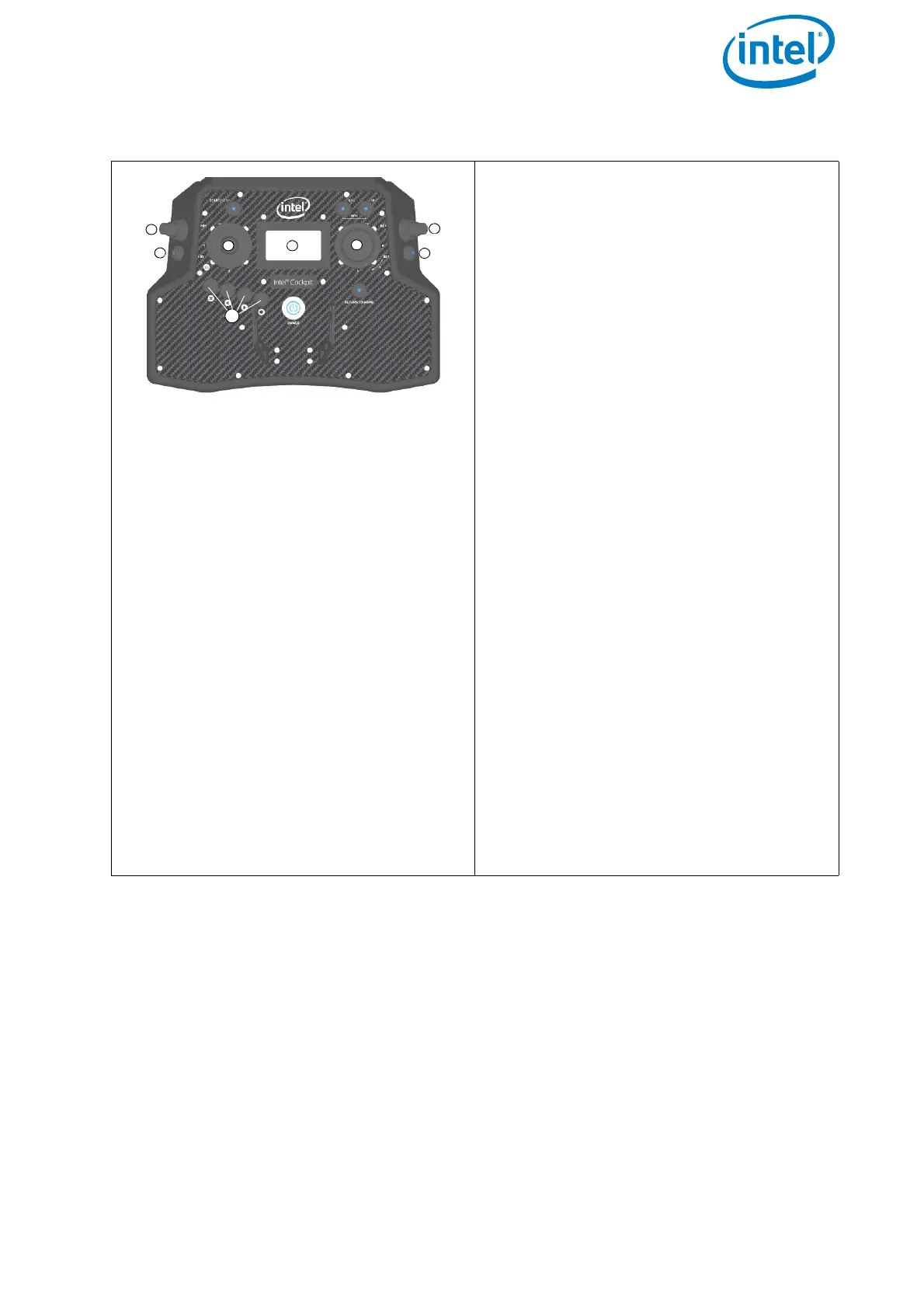

Figure 2.12: Camera Control Via the Intel® Cockpit Controller (CTR)
All cameras integrated on the Intel® Fal-
con™ 8+ UAV can be controlled via the
CTR. Several switches on the CTR are
assigned to camera controls.
(1) Push Button B1: sets the camera to
predefined angles +/- 90°, +/- 45°
and 0° when R1 (4) is pushed
simultaneously (see below for details)
(2) Push Button B2: changes the function
depending on the connected payload
(3) Push Button B3: trigger button on top
of the left control stick (S1)
(4) Rocker Switch R1: camera tilt
(5) Rocker-Switch R2: changes its
function depending on the camera
used
(6) Control Stick S2: turning the right
control stick (S2) controls the yaw
axis of the UAV.
(7) Status Display and related control
buttons
(8) ESC, LEFT, RIGHT, ENT: depending
on the payload, additional options
can be accessed via the Status
Display. Pushing ENT and selecting
Camera Options opens the respective
menu (see “Status Display” on
page 27 and see “STATUS DISPLAY”
on page 138).
For exact details regarding accessible
functions see the individual payload
descriptions.
1
2
3
4
5
6
7
8
