off the Intel® Falcon™ 8+ UAV too early, you will cut the power supply of the
camera and risk losing data.
• Keep the airplane mode of the camera switched on, to avoid radio interference
from the camera (MENU > > Airplane Mode > ON).
2.5.3.2. Camera Control By The CTR
This section describes how the Sony Alpha 7R can be operated by using the functional
elements of the CTR.

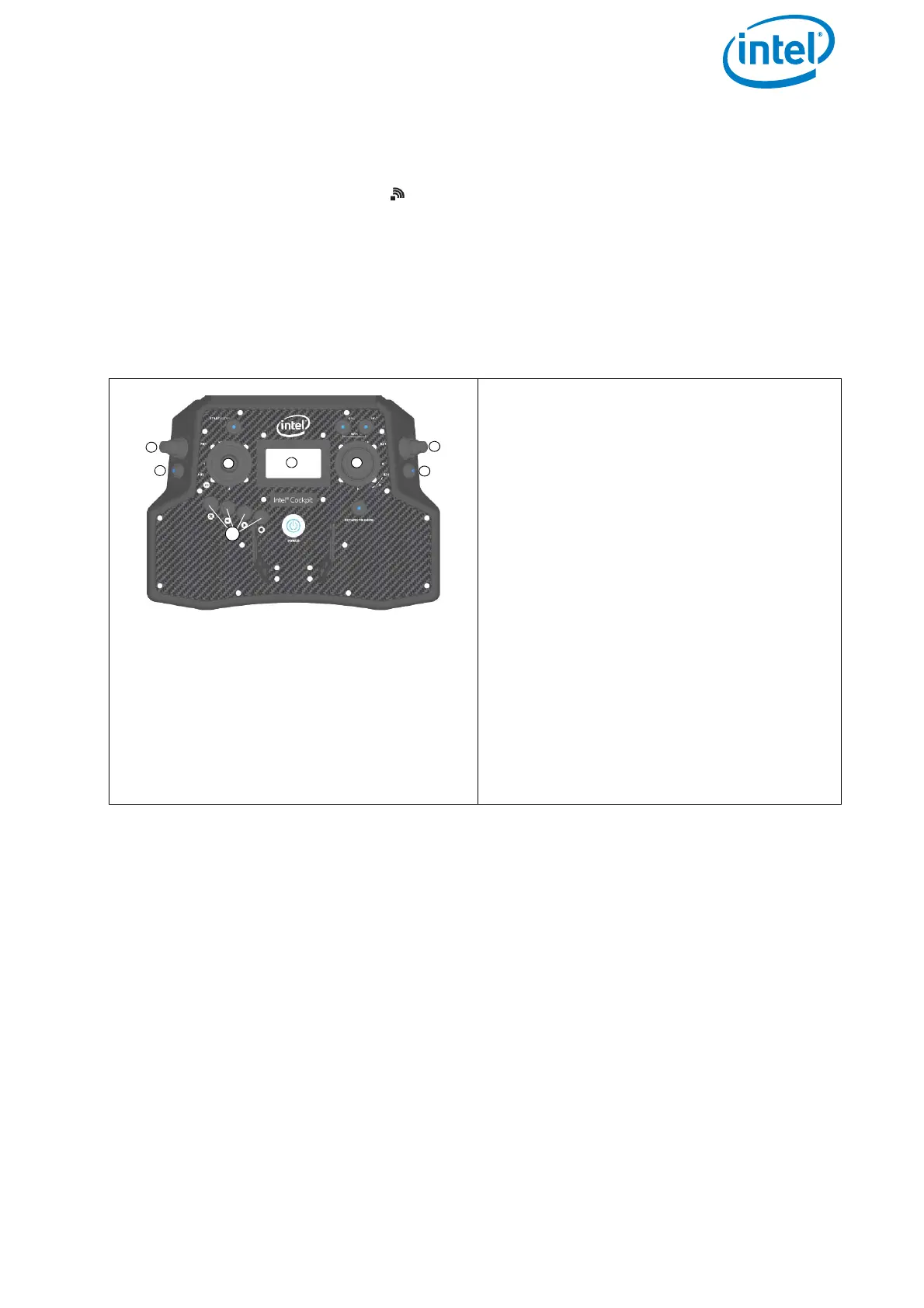

Figure 2.16: Sony Alpha 7R CTR Control Layout
Push Button B1 (1): sets the camera to
predefined angles +/-90°, +/-45° and 0°
when Rocker Switch R1 (4) is pushed
Push Button B2 (2): changes the function
depending on the connected payload
Push Button B3 (3): trigger button
Rocker Switch R1 (4): camera tilt; Dial 1
or Dial 2, depending on B2
Rocker Switch R2 (5): camera tilt; Dial 1
or Dial 2, depending on B2
Control Stick S2 (6): turning the right
control stick (S2) controls the yaw axis of
the UAV
Status Display (7): see “Camera Options
By The Status Display” on page 39
ESC, LEFT, RIGHT, ENT (8): Status Dis-
play control buttons (see “Status Dis-
play” on page 27).
1
2
3
4
5
6
8
7
