Invacare Bora - Replacing the Lifter; Seat Angle Adjustment Module

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
101
7.19.3 Replacing the lifter / seat angle adjustment module
Note
Replacement of the seat angle adjustment module is performed in the same manner.
ATTENTION: Danger of crushing!
The seat is very heavy. Danger of injury to hands and feet!
• Use proper lifting techniques
Requirements:
• 3 mm Allen key
• 5 mm Allen key
• T25 Torx wrench
• T40 Torx wrench
• Side cutting pliers
• Cable ties
• Remove legrests.
• Tilt the seat tilting completely to the rear if
possible.
• Switch the electronics OFF on the remote.
• Remove the backrest cushion.

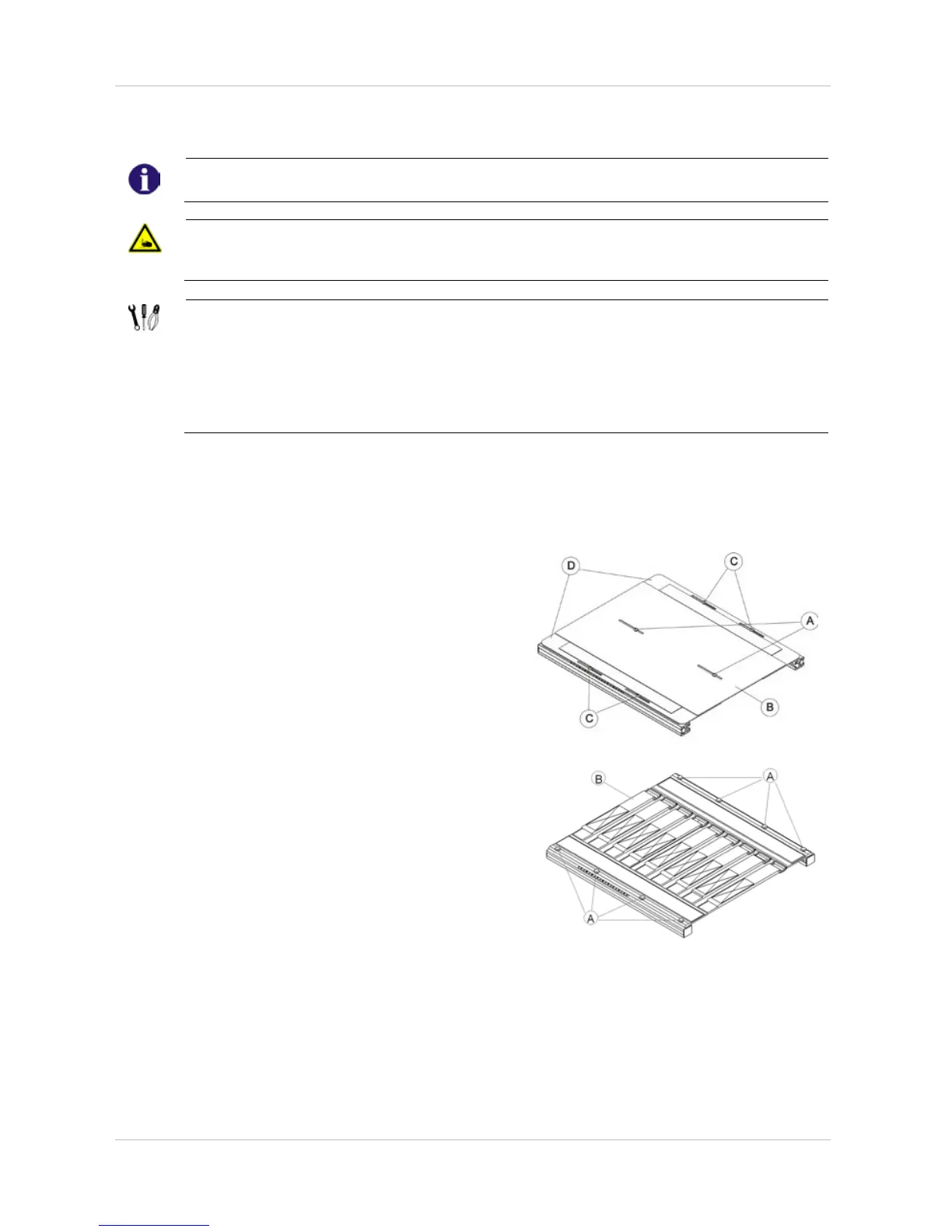

• Loosen and remove the screws, which secure
the middle seat plate (A) with a 3 mm Allen key.
• Remove the middle seat plate (B).
• Loosen and remove the screws on both sides,
which secure the lateral seat plates (C) with a
3 mm Allen key.
• Remove the lateral seat plates (D).
or
• Remove the seat cushion.
• Loosen and remove the screws on both sides,
which secure the sling seat (A) with a
T25 Torx wrench.
• Remove the sling seat (B).
