7.9 Checking the cable
The following images show checking the cable using the Shark controller as an example. The plug
positions are different for both the DX2 and VR2 controllers. The procedure for checking is
otherwise identical.
The position of the plugs is described in Chapter 4.2.

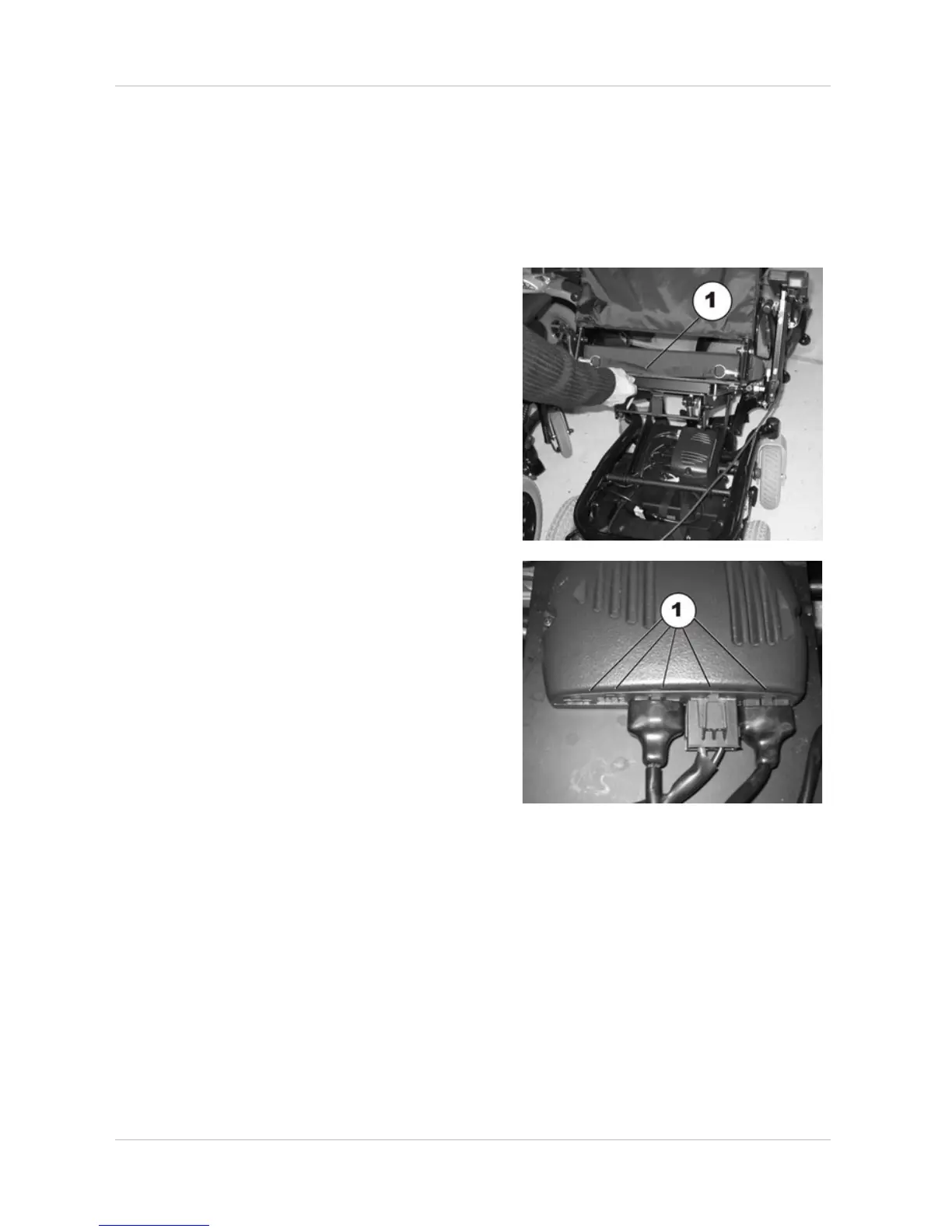

• Remove legrests.
• Release seat (1) and tilt forwards.
• Check all cables for visible damage and
crushing. Replace damaged cables.
• Pull each plug (1) carefully. The plug should
not come out of the socket.
• If the plug is loose, press the plug into the
socket with slight pressure. The plug must
engage.
• Check whether the plug is now firmly located
in the socket, otherwise repeat the previous
step.
• Remove both battery cases as described in
Chapter 7.7.1.
• Remove the covers on both battery cases as
described in Chapter 7.7.2.
