6.5 R-NET remote: Error codes and diagnostic codes

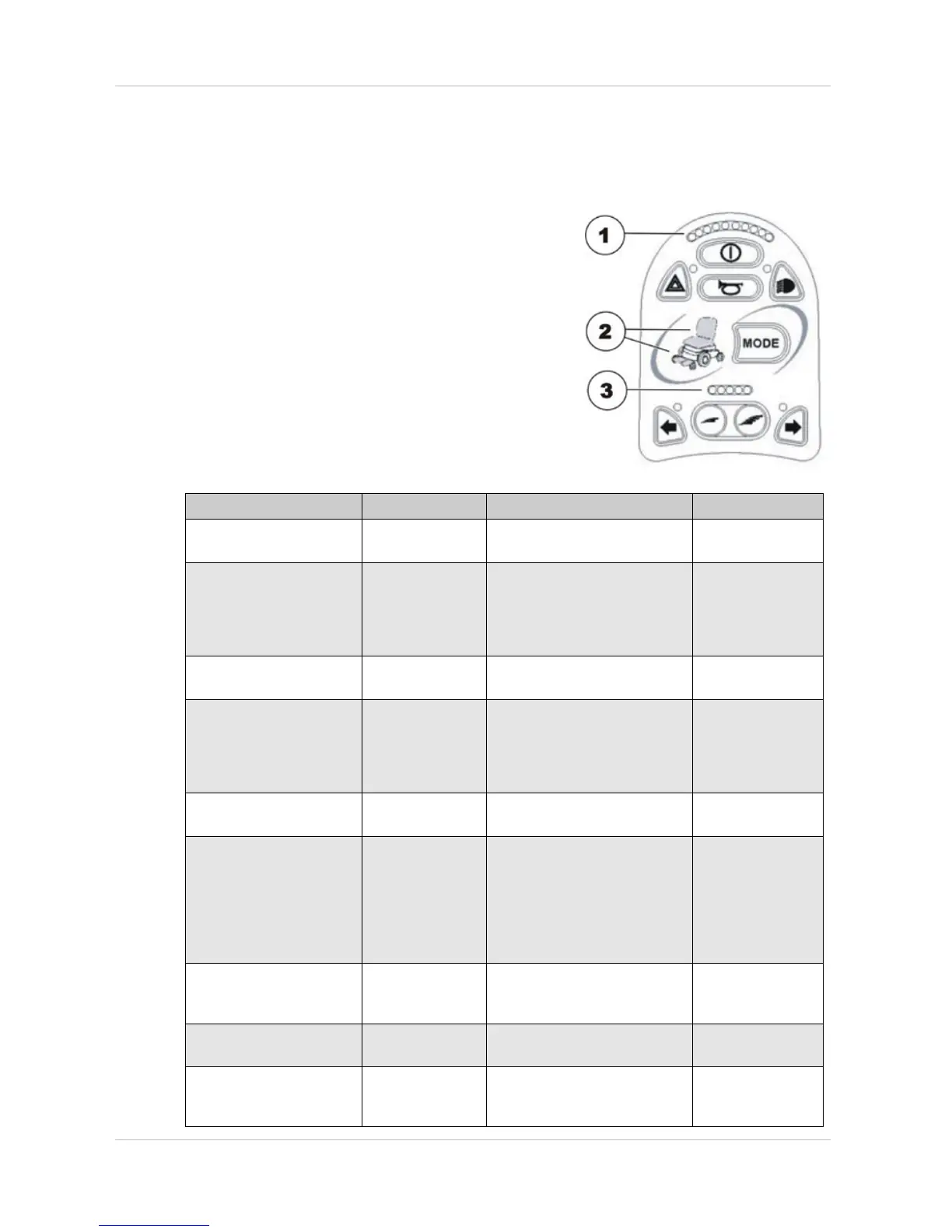

Evaluate the cause using the following blink codes. The following figure shows which LEDs are
located on the remote.
1) Battery display
2) Actuators
3) Profile indicator
Error code Possible Cause Solution Documentation
1 LED battery display
Batteries
discharged
Charge battery
Check cable to batteries See chapter 7.9.
2 LED battery display
Fault in left-hand
motor;
connection
loose/defective or
motor defective
Check connection plug, check
motor
See chapters 7.9
and 7.2
3 LED battery display
Short-circuit in
left-hand motor
Check connection plug, check
motor
See chapters 7.9
and 7.2
4 LED battery display
Fault in right-
hand
motor;
connection
loose/defective or
motor defective
Check connection plug, check
motor
See chapters 7.9
and 7.2
5 LED battery display
Short-circuit in
right-hand motor
Check connection plug, check
motor
See chapters 7.9
and 7.2
6 LED battery display
The wheelchair
has been blocked
by an external
signal, for
example because
the charger is
connected.
Remove battery charger
7 LED battery display
Fault on drive
lever
Put the drive lever in a central
position before switching the
remote on.
8 LED battery display
Fault in the
electronics
Check cable See chapter 7.9.
9 LED battery display
The parking brake
is not working
correctly.
Check parking brake
Check cable. See chapter 7.9.
