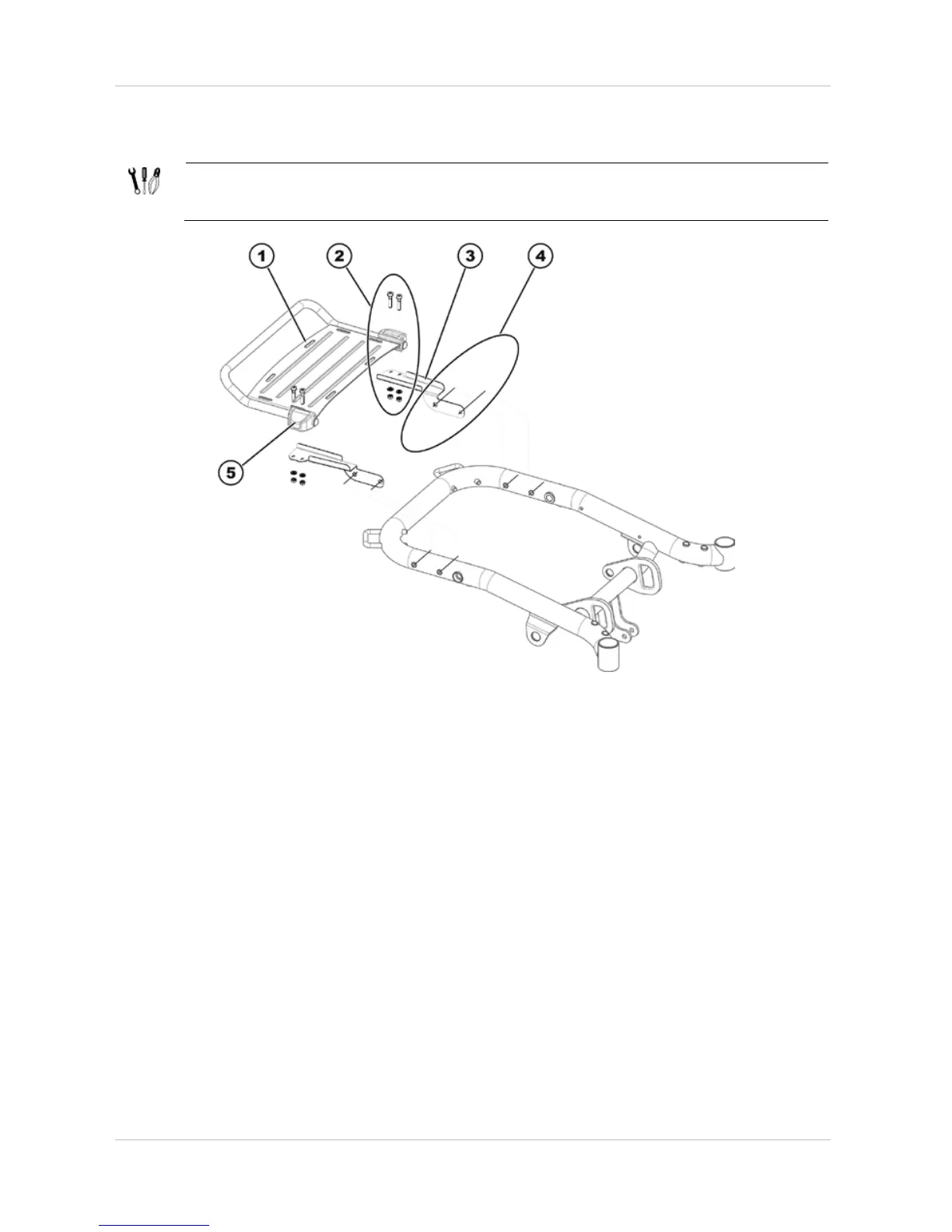

• Loosen and remove both hexagon socket head screws (4) together with the washer. The
screws are located on the wheelchair.
• Install the luggage carrier fixation bracket (3).
• Install both hexagon socket head screws (4) together with the washers, spacer sleeve, etc.
• Repeat these work steps on the other side of the wheelchair.
• Open the clamping levers (5) of the luggage carrier fixation bracket.
• Push the brackets onto the luggage carrier (1).
• Install the luggage carrier with the brackets. When tightening the screws (2), make sure that the
luggage carrier is correctly centered.
• Close both of the clamping levers.
• Make sure that the luggage carrier does not collide with the backrest or seat when adjusting the
backrest angle or seat tilt to any setting.
• If collisions can occur:
- Open the clamping levers of the luggage carrier fixation bracket.
- Push the luggage carrier slightly towards the rear.
- Close the clamping levers of the luggage carrier fixation bracket.
