7.2.1 Replacing the complete drive unit
• Loosen the six drive unit screws with the
6 mm Allen key.

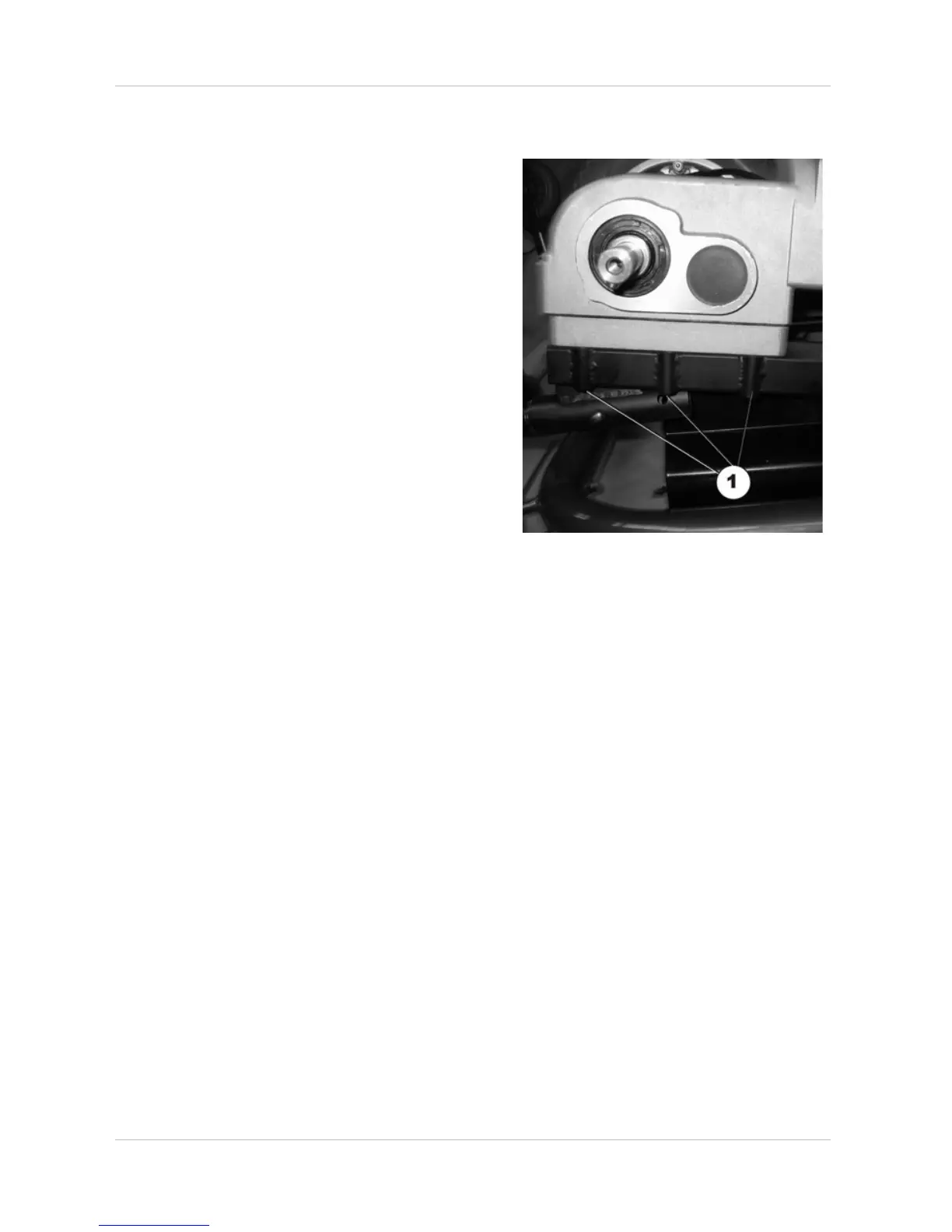

3 screws are located on the outside of the
drive unit as shown in the figure.
The other 3 screws are located on the inside
of the drive unit.
• Lift the complete drive unit up.
• The drive unit is reassembled in reverse order
to disassembly.
