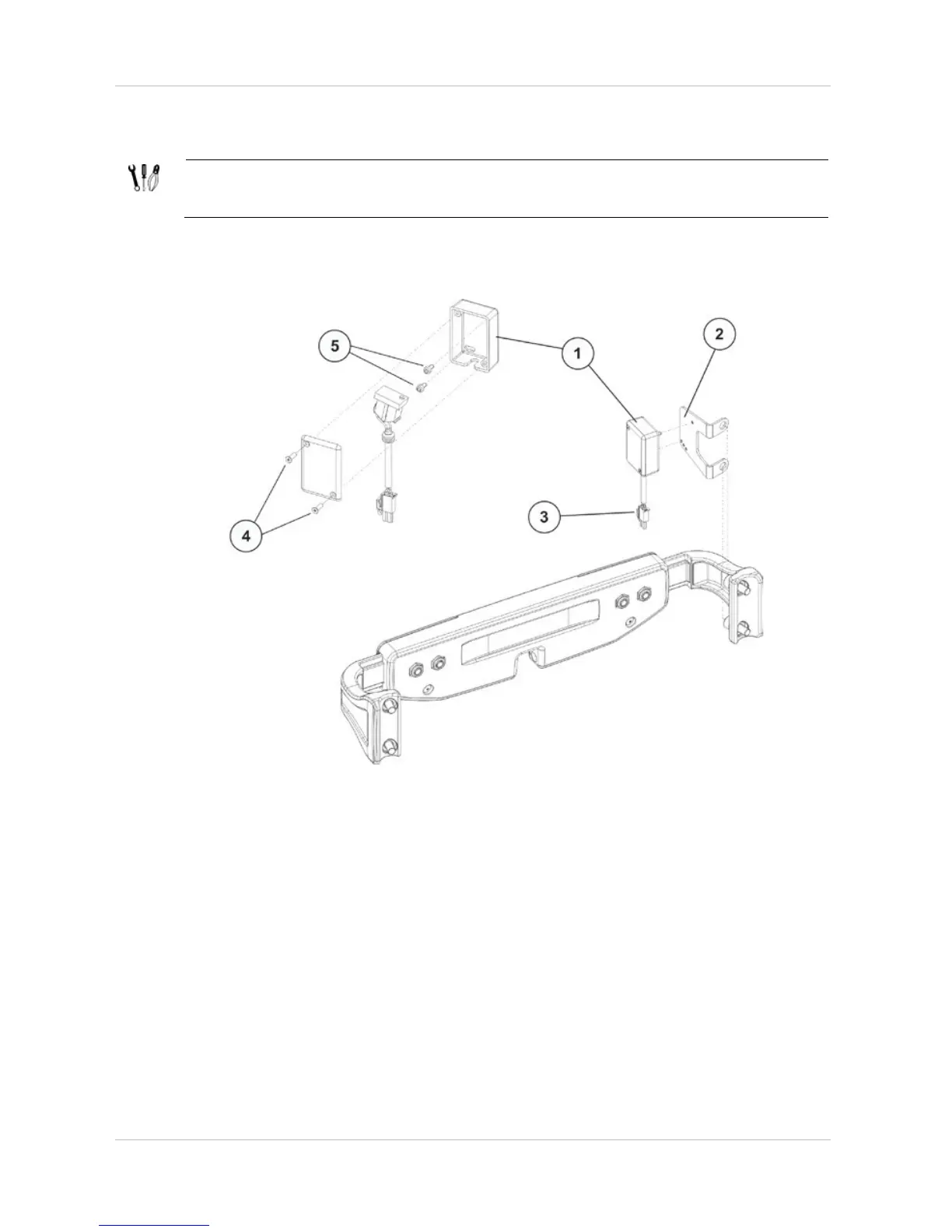

• Remove the plug (3) from the sensor (1).
• Open the cover of the sensor box by loosening and removing both Phillips screws (4).
• Loosen the two Allen screws (5) and remove the sensor (1) from mounting plate (2).
• Replace the angle sensor.
Refitting the angle sensor:
• Assemble the parts in the reverse order
