Invacare Bora - Operating Hours Counter; Replacing the Operating Hours Counter

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
57

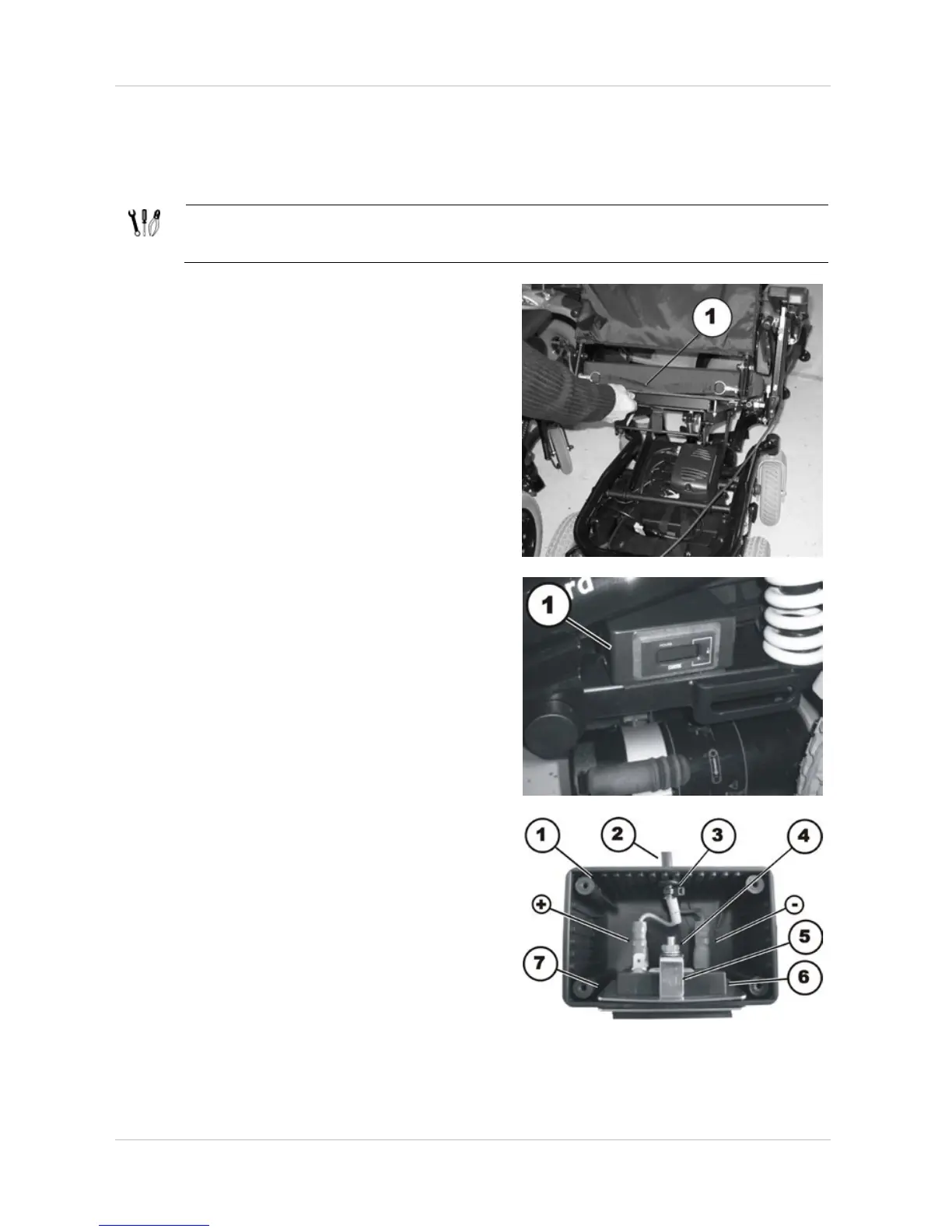

7.5 Operating hours counter
7.5.1 Replacing the operating hours counter
Requirements:
• Philipps screwdriver, size 2
• 10 mm open-end wrench
• Switch the electronics OFF.
• Remove the legrests.
• Release the seat (1) and tilt forward.
• Disconnect the remote bus cable from the
electronics module or ACT.
• Lift the seat up out of its forward mounting
and remove completely. The seat has a
heavy weight. Use proper lifting techniques.
The operating hours counter is attached to the
frame with a Velcro strip.
• Disconnect the cable of the operating hours
counter from the drive motor.
• Pull the operating hours counter off of the
frame.
• Turn the operating hours counter over.
• Loosen and remove the four Philipps head
screws of the casing.
• Disconnect the plugs (+) & (-).
• Remove the nut (4) including the locking
washer.
• Pull the operating hours counter (6) forwards
out of the casing (1). Pay attention to the
mounting bracket (5) and the retaining frame
(7).
• Replace the operating hours counter.
