Invacare Bora - ACT 2 Actuator Module; ACT 4 Actuator Module; R-NET ISM Lighting and Actuator Module

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
25

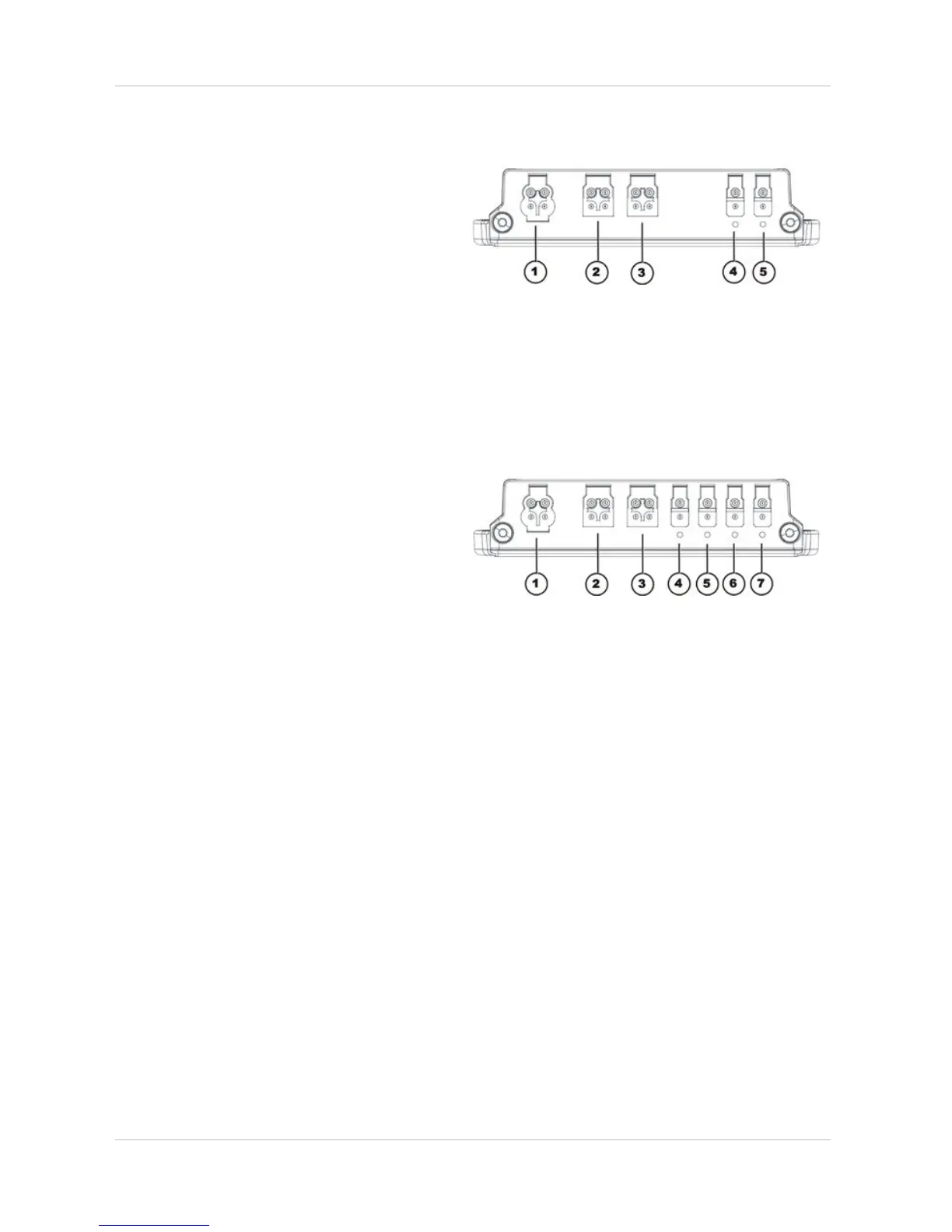

4.2.7.1 ACT 2 actuator module
Connections
1) ACI*
2) Bus cable (to remote or ACT)
3) Bus cable (to remote or ACT)
4) Adjusting motor/actuator - Channel 2
5) Adjusting motor/actuator - Channel 1
Rubber stoppers for free slots
1) Order number: 1555701
2) & 3) Order number: 1552876
4) & 5) Order number: 1555700
* The ACI connection is used for actuator limitation or speed reduction.
4.2.7.2 ACT 4 actuator module
Connections
1) ACI*
2) Bus cable (to remote or electronics
module)
3) Bus cable (to remote or electronics
module)
4) Actuator - Channel 4
5) Actuator - Channel 3
6) Actuator - Channel 2
7) Actuator - Channel 1
Rubber stoppers for free slots
1) Order number: 1555701
2) & 3) Order number: 1552876
4) to 7) Order number: 1555700
* The ACI connection is used for actuator limitation or speed reduction.
4.2.8 R-NET ISM lighting and actuator module
A range of adjusting motors, also known as actuators, can be fitted to the wheelchair. These
actuators are either connected directly to the electronics module or to a separate actuator module.
The actuator module is connected with the electronics module via a bus cable.
In addition, the lighting can be connected to the R-NET ISM. An additional lighting PCB is not then
required.
