7.2.7 Replacing the motor / gearbox coupling (SSD motor)
CAUTION: Danger of crushing!
The motor / gearbox unit is very heavy. Danger of injury to the hands!
• Pay attention to the heavy weight.
Requirements:
• 10 mm socket wrench
Uninstalling the motor / gearbox coupling:
• Uninstall the motor / gearbox unit, as described in chapter 7.2.5.

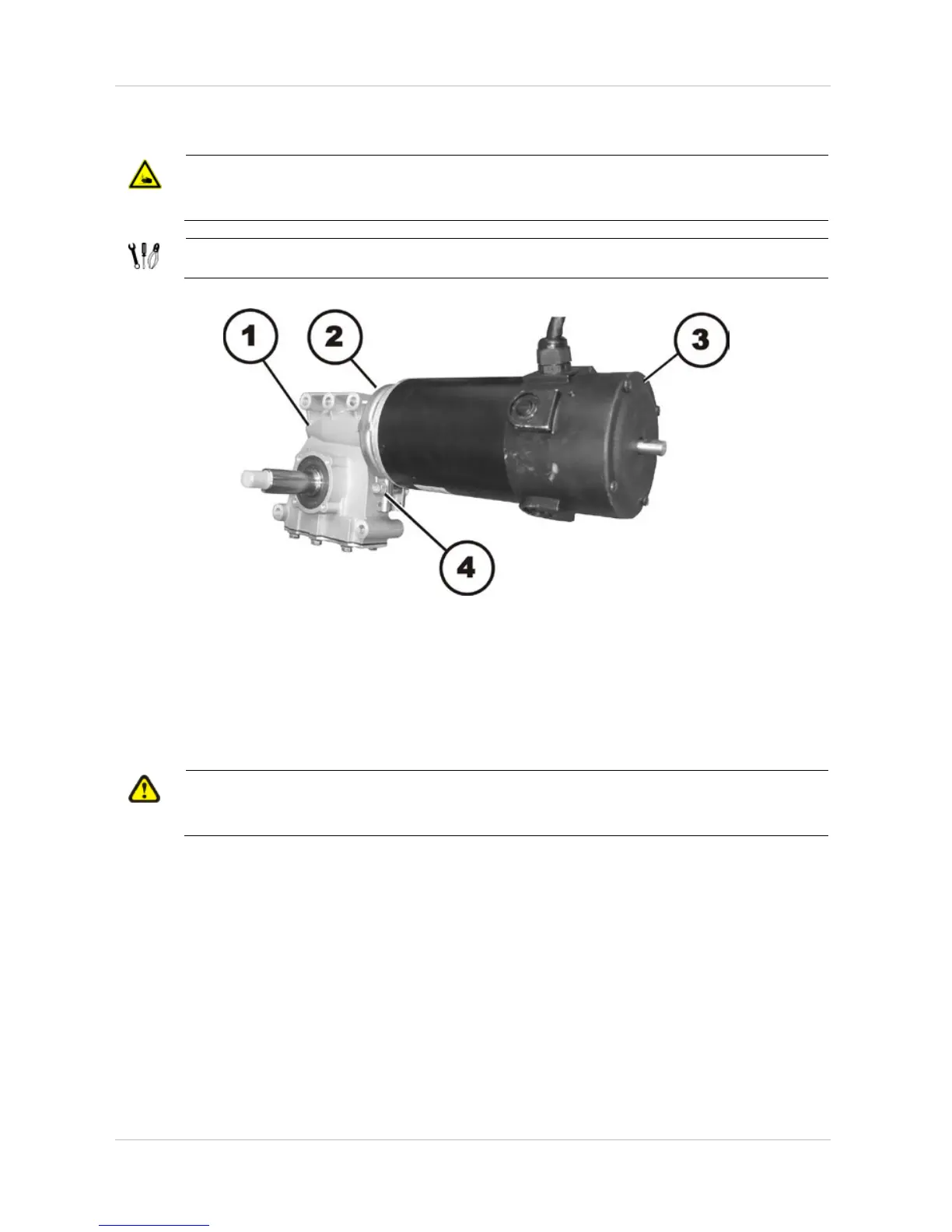

• Use the 10 mm socket wrench to loosen and remove the self-securing nut (4).
• Remove the carriage bolt, which secures the sealing ring (2).
• Carefully bend the sealing ring apart and remove it.
WARNING!
Danger of damage to the wheelchair if the coupling is not serviced correctly.
• Be careful not to damage the coupling mechanism during maintenance work.
• Carefully pull the motor (3) and the gearbox (1) apart.
• Remove the component parts of the coupling.
• If necessary replace the coupling.
