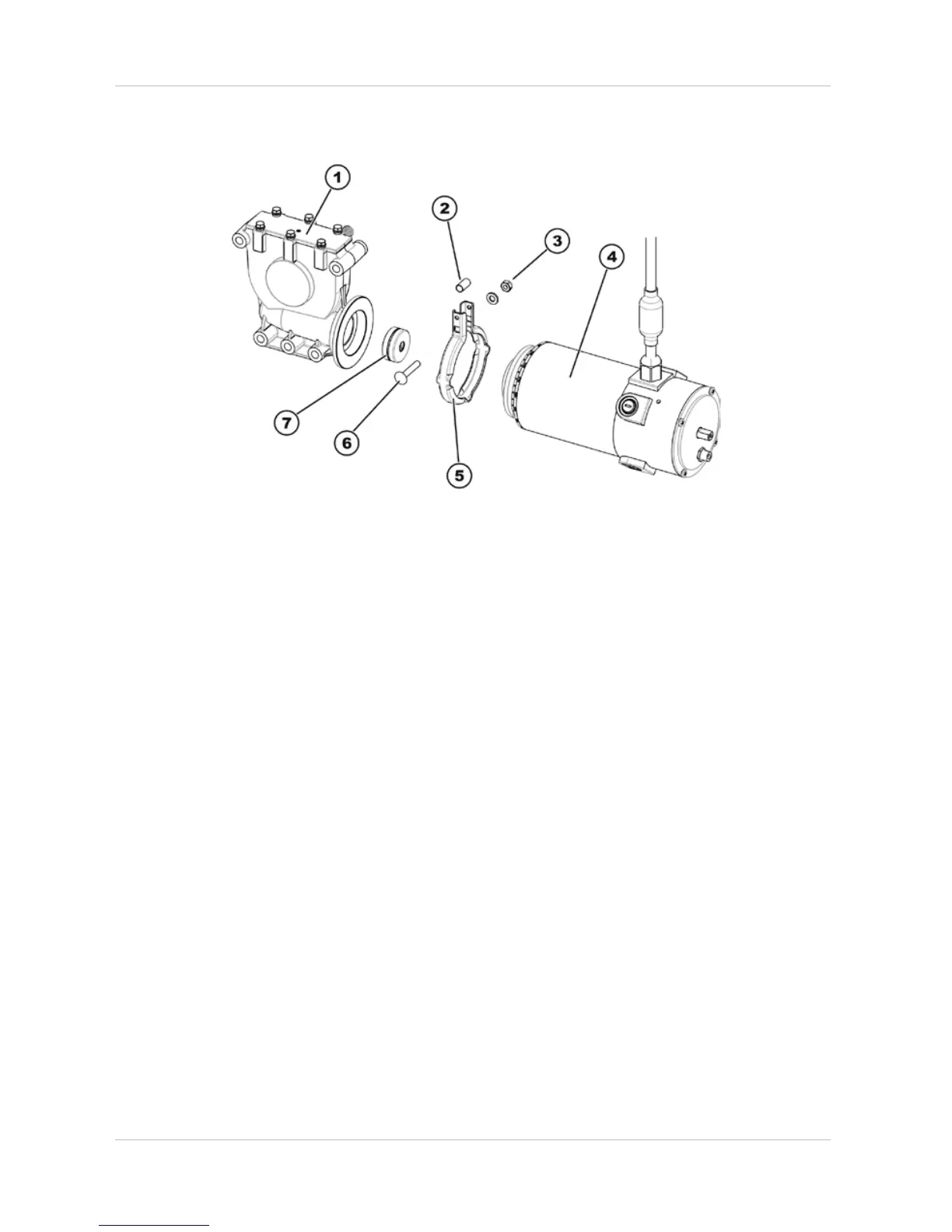

• Place the new clutch (7) on the motor axle. Pay attention to the position of the groove.
• Position the locking ring (5) on the motor (4) or the gearbox (1).
• Carefully insert the motor into the gearbox. Pay attention to the position of the groove in the
axle of the gearbox. If necessary, rotate the motor and gearbox to the correct position.
• Insert the carriage bolt through the locking ring. Do not forget the spacer sleeve (2)!
• Install the washer and the self-locking nut.
• Do not tighten the self-locking nut completely, as the motor orientation must be adjusted during
installation.
• Install the motor / gearbox unit, as described in chapter 7.2.5.
