Invacare Bora - Standard Seat

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
127
9.2.1 Standard seat
Requirements:
• 4 mm Allen wrench
• 5 mm Allen wrench
• 13 mm open-ended wrench
• Flat screwdriver
• Smal hammer
WARNING: Danger of crushing!
The seat is very heavy. Danger of injury to hands and feet!
• Pay attention to the hand and feet.
• Use proper lifting techniques.

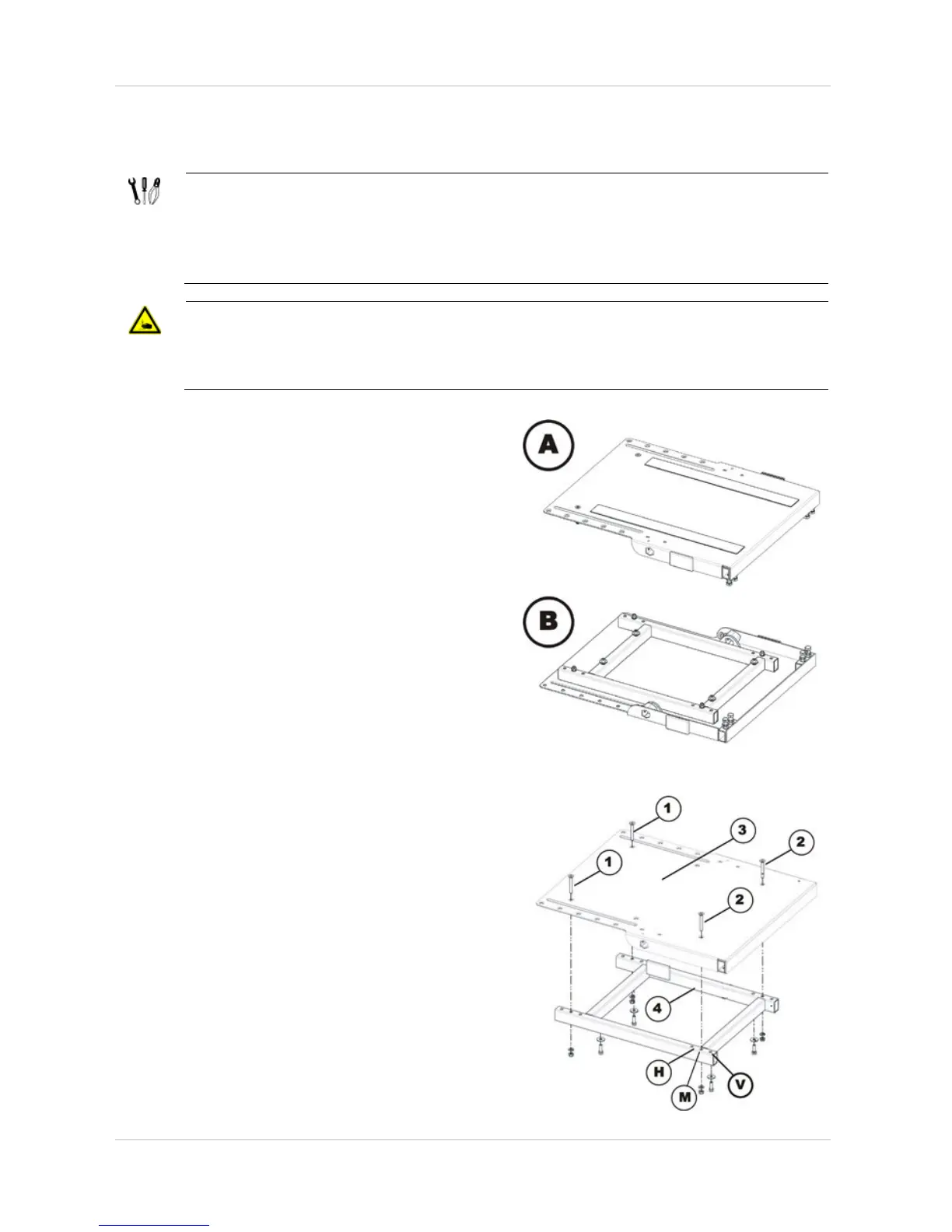

The pictures show the standard seat without
seat covering from above (A) and below (B).
• Rear bolts (1)
• Front bolts (2)
• Seat plate (3)
• Seat frame (4)
The seat plate can be fixed in three different
positions on the seat frame.
• Front fixing (V)
• Centre fixing (M)
• Rear fixing (H)
