7.14 Repairing punctures
WARNING: Injury hazard if the vehicle starts moving unintentionally during repair work!
• Switch the power supply off (ON/OFF key).
• Engage the drive.
• Before raising the vehicle, secure the wheels by blocking them with wedges.
ATTENTION: Danger of crushing to the hands and feet by the weight of the wheelchair!
• Pay attention to the hand and feet.
• Use proper lifting techniques.

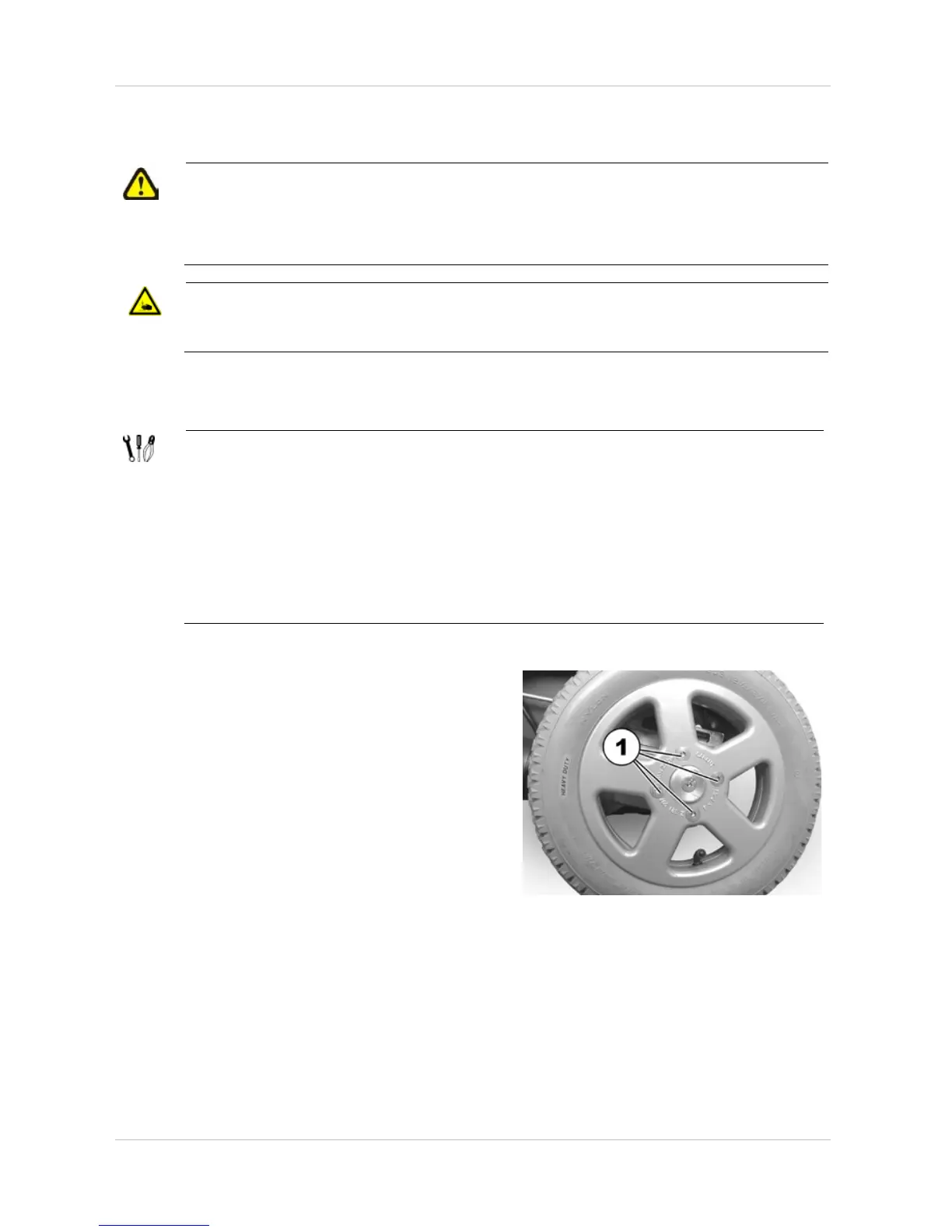

7.14.1 Repairing the rear tyre (wheel size 3.00-8")
Requirements:
• Torque wrench with
- Allen key-Bit 5 mm
- Torx-Bit R40
• Mounting kit
• wooden block (approx.12 x 12x 30 cm for propping up vehicle)
• Repair kit for tyre repair or a new inner tube.
• Talcum powder
Dismantling the wheel:
• Lift the vehicle up and place a wooden block
underneath it to keep it in a raised position.
• Remove the four countersunk head screws
TX40 (1) using the Torx bit.
• Pull the wheel from the hub
