Invacare Bora - Replacing the Jaw Clutch

SERVICE MANUAL
Invacare
®
- Bora/Spectra XTR
42

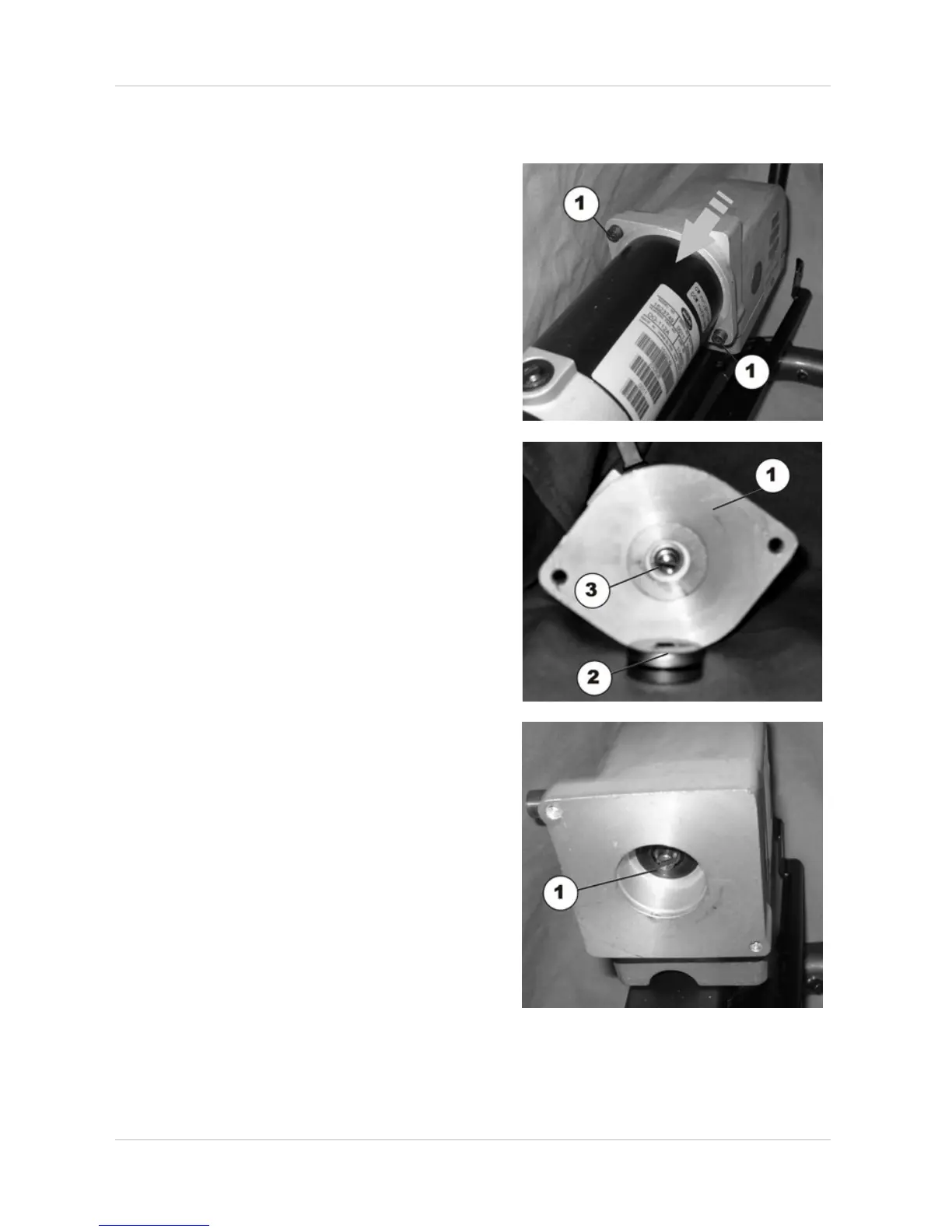

7.2.3 Replacing the jaw clutch
• Loosen the motor screw (1) with the 5 mm
Allen key.
• Remove the motor from the transmission.
• Remove the clutch (2) from the motor (1)
using the screwdriver
• Place a new clutch on the motor. Observe the
position of the groove (3) on the motor.
• The motor is reassembled in reverse order to
disassembly.
• Insert the motor carefully into the
transmission to avoid damage. Observe the
position of the groove (1) in the transmission.
• The cable must be routed so that it does not
rub or get trapped.
• Insert the motor plug into the electronics
module.
• Secure the motor cable with cable ties.
