Invacare Bora - ACS 1 60 A Electronics Module; ACS 2 PMB70; ACS 2 PMB70 L Electronics Module; ACS 2 PMA90 LG Electronics Module; VR2 Electronics Module

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
23

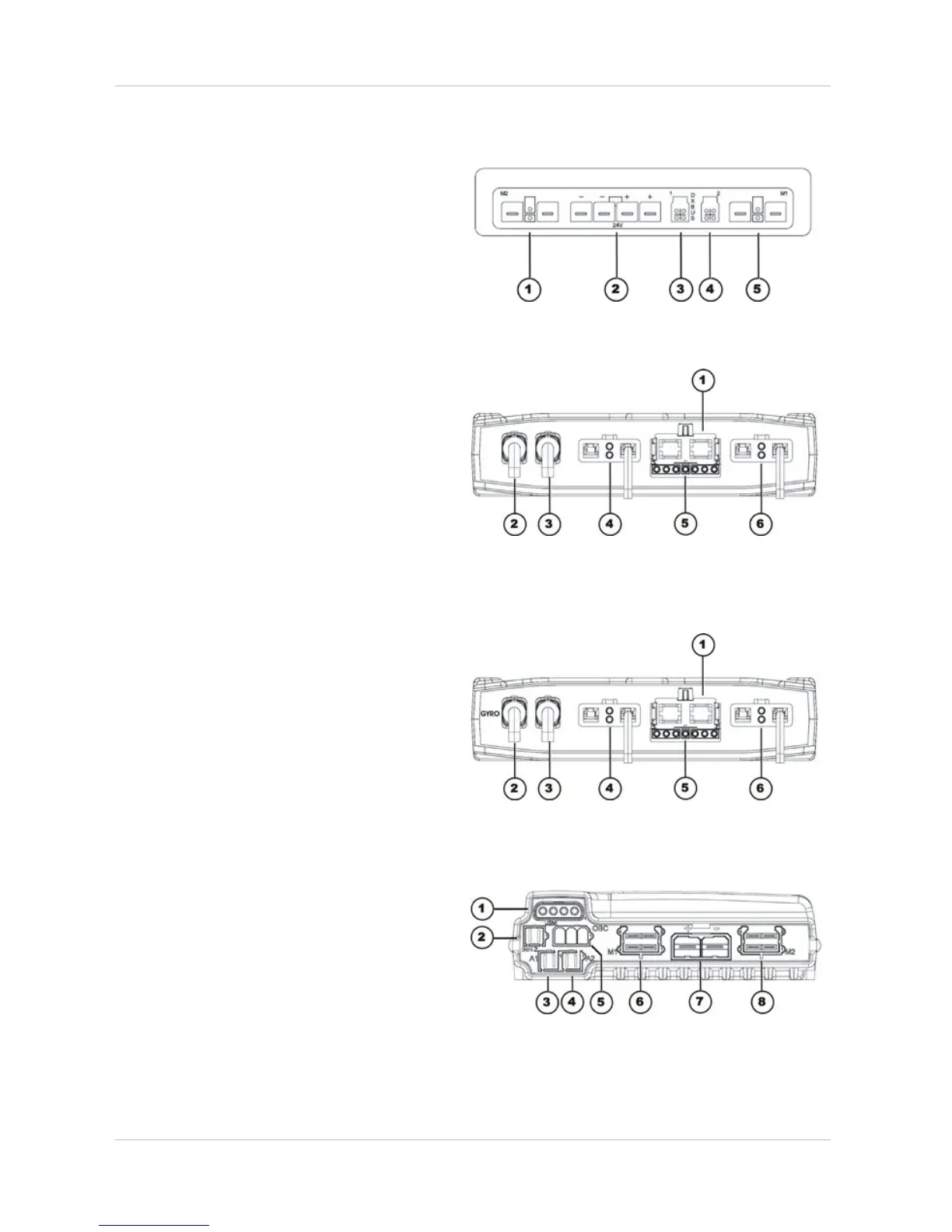

4.2.1 ACS 1 60A electronics module
Connections
1) Motor M2
2) Battery 24V
3) Bus cable (to remote or ACT)
4) Bus cable (to remote or ACT)
5) Motor M1
4.2.2 ACS 2 PMB70 / ACS 2 PMB70L electronics module
Connections
1) Battery 24V
2) Bus cable (to remote or ACT)
3) Bus cable (to remote or ACT)
4) Motor M1
5) Light
6) Motor M2
Rubber stoppers for free slots
2) & 3) Order number: 1552876
4.2.3 ACS 2 PMA90LG electronics module
Connections
1) Battery 24 V
2) Cable to G-Trac sensor (GYRO)
3) Bus cable (to remote or ACT)
4) Motor M1
5) Light
6) Motor M2
Rubber stoppers for free slots
2) & 3) Order number: 1552876
4.2.4 VR2 electronics module
Connections
1) Joystick box
2) Lock (INHIBIT 2)
3) Actuator 1
4) Actuator 2
5) On-board battery charger
6) Motor M1
7) Battery 24V
8) Motor M2
