Invacare Bora - Replacing the Backrest Actuator

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
105
7.19.5 Replacing the backrest actuator
Requirements:
• 8 mm Allen key
• open-ended spanner, 10 mm
• open-ended spanner, 13 mm

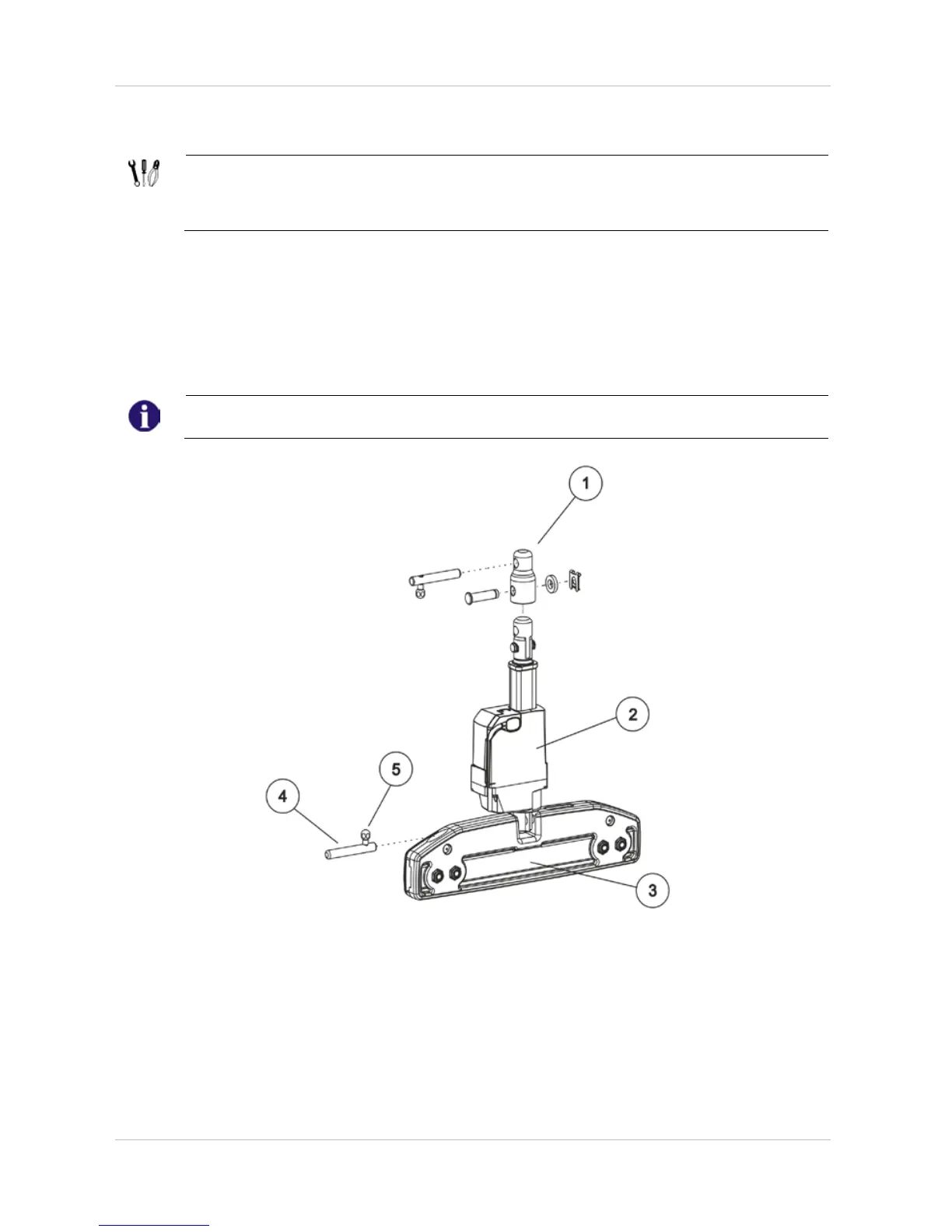

Dismantling the backrest actuator:
• Pull the cable off directly where it is connected to the actuator (2).
• Detach the bracket of the actuator at the top and bottom; to do this, slide the bolts (4) to the
side using the lever (5) and tilt the actuator (2) out of the backrest clamp (3).
• Replace actuator.
Note
To increase the angle of the backrest, you can remove the adapter (1). See chapter 7.19.6.
Refitting the backrest actuator:
• Assemble the parts in the reverse order.
