Invacare Bora - Checking and Replacing the Main Fuse

SERVICE MANUAL
Invacare
®
- Bora/Spectra XTR
70
7.8 Checking and replacing the main fuse
CAUTION: Fire hazard!
A short circuit can cause extremely high currents which can result in spark formation and
fire!
• Always use an original strip fuse with the approved amperage.
• If the main fuse has blown, first rectify the cause before fitting a new one.
CAUTION: Fire hazard!
Fitting the incorrect strip fuse causes a fire hazard!

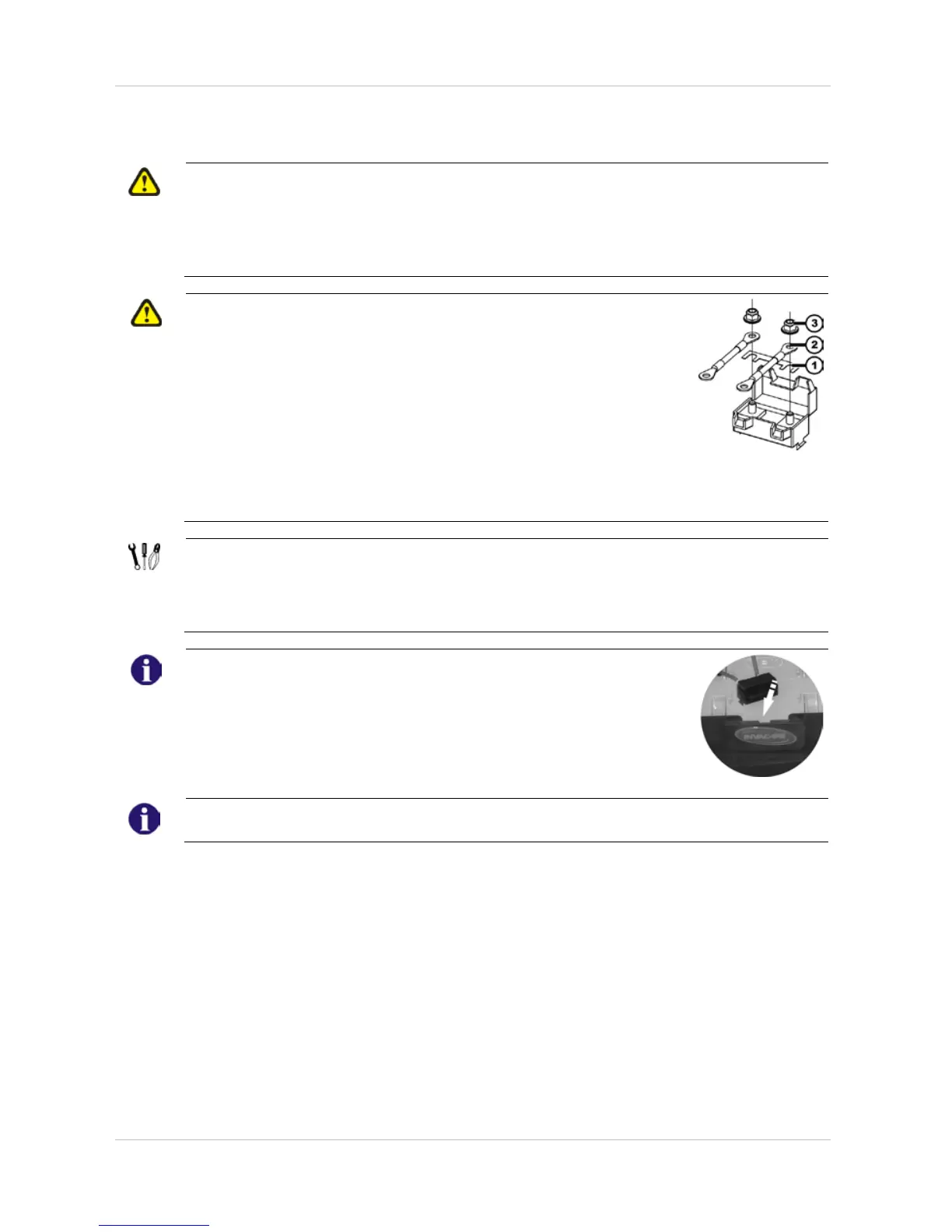

• Only fix the strip fuses in the sequence shown in the image on the right!
• Tighten the nuts with 3.3 to 3.5 Nm!
1. Strip fuse
2. Spade terminal
3. DIN 6923 nut
Requirements:
• Phillips screwdriver
• Strip fuse
• socket spanner, 8 mm
• torque wrench 0-20 Nm (or similar)
Note
A spare fuse is located behind the Invacare logo on the rear battery.
Note
If the fuseholder is damaged, you can replace this complete with the battery cables.
• Remove both battery cases as described in
Chapter 7.7.1.
• Remove the covers on both battery cases as
described in Chapter 7.7.2.
