Invacare Bora - Simple Seat

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
133
9.2.3.2 Simple seat
Requirements:
• 6 mm Allen key

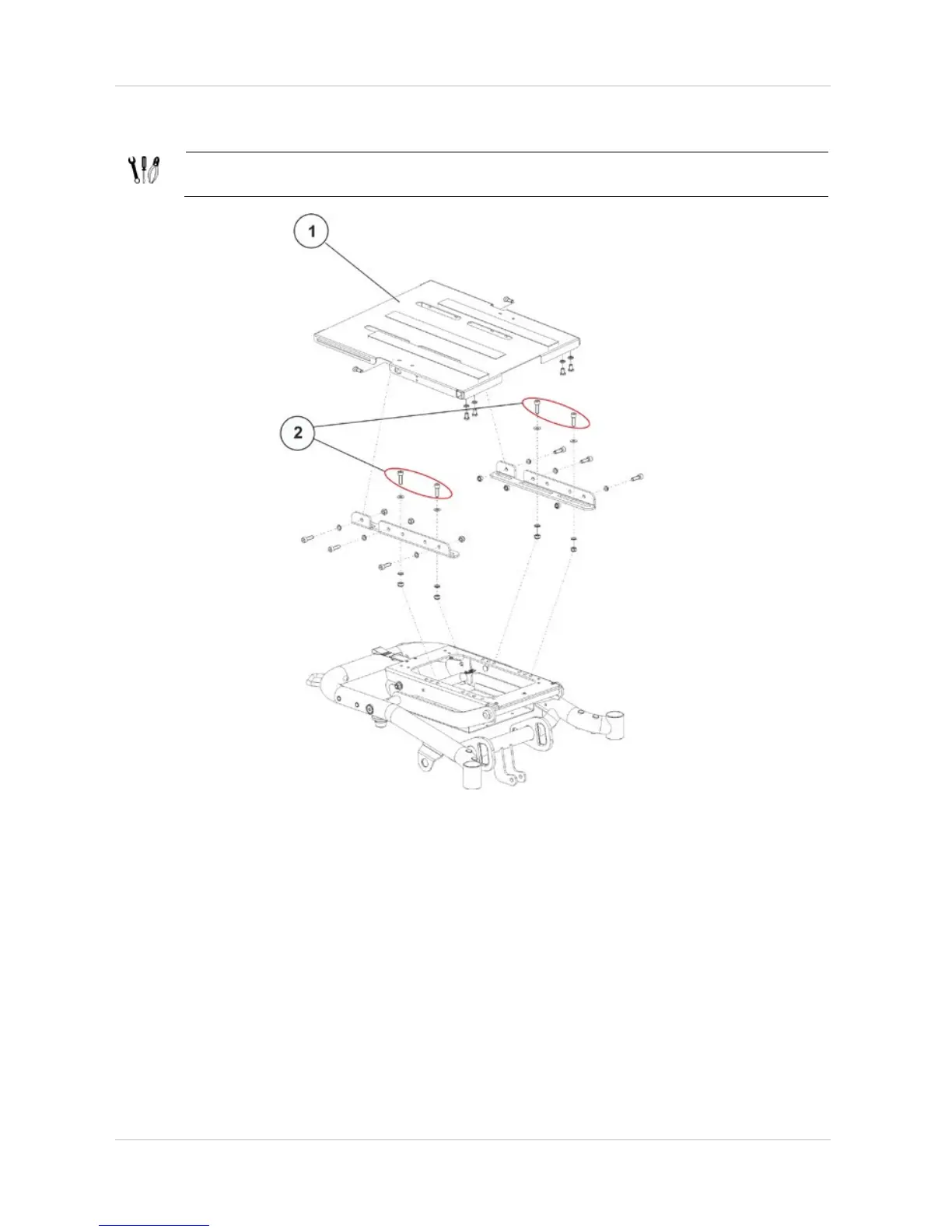

• Remove the seat plate (1) or the sling seat, see chapter 7.21.1.
• Loosen the socket head screws (2) in the front and rear, left and right – DO NOT remove.
• Shift the position of the seat frame.
• Re-tighten the screws.
• Install the seat plate again.
