7.19 Seat system Modulite
7.19.1 Replacing the tilt actuator
Note
Replacing the actuator for the seat angle adjustment in the lifter / seat tilt adjustment module is
also described.
Requirements:
• Screwdriver, flat, width 6 mm
• 13 mm jaw spanner (2x)
• Slotted screwdriver
• Remove legrests.
• Switch the electronics OFF on the remote.
• Disconnect the actuator cable from the cable
harness
Variant actuator - tilt:

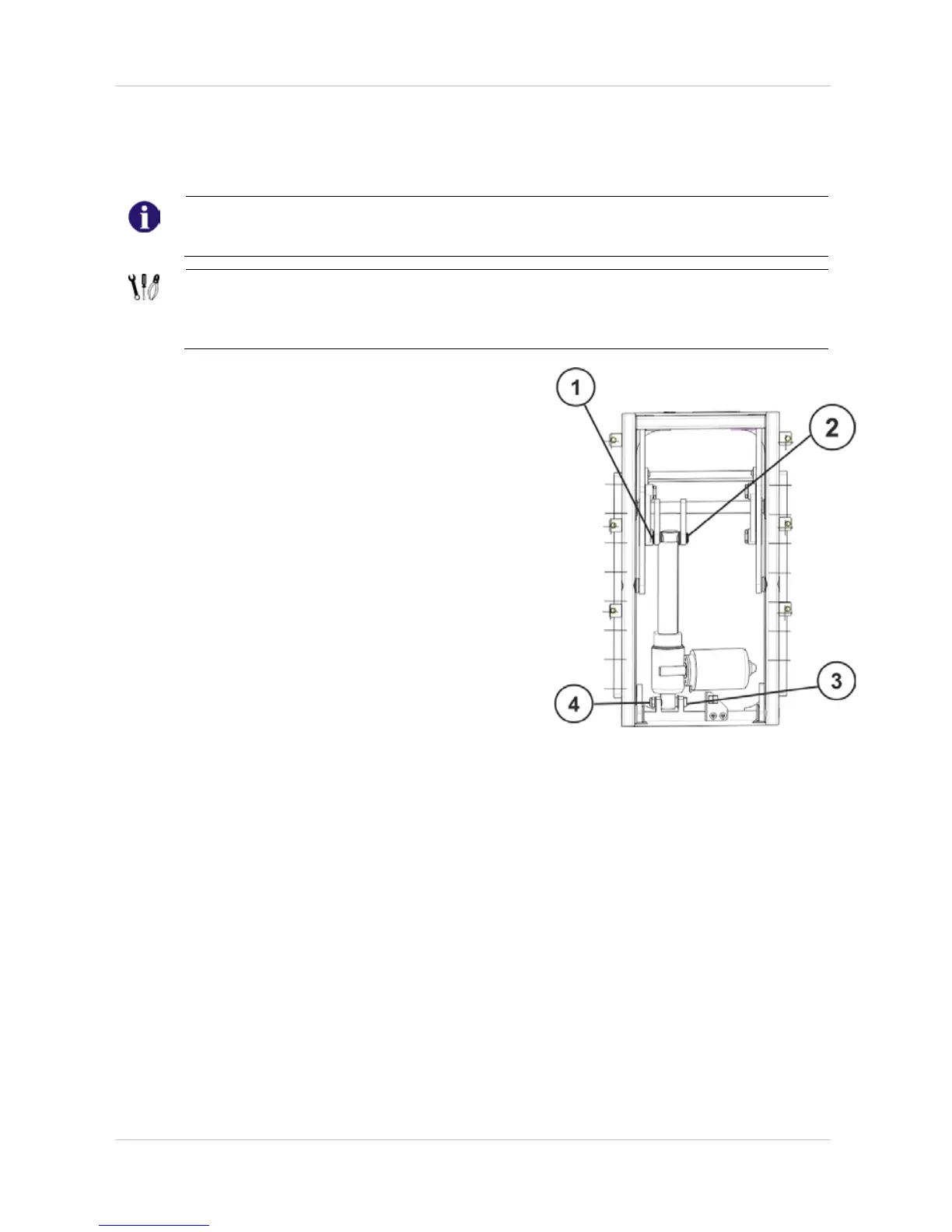

• Bottom fixing bolt (3) with nut (4) –
Loose the nut with the open-ended wrenches.
Remove the nut and bolt.
• Top fixing bolt (2) secured with snap rings (1) –
Remove a snap ring using a screwdriver and
remove the bolt.
• Pull the actuator out.
• Insert a new actuator.
• Reassembly takes place in the reverse order.
• Connect the actuator cable to the cable harness.
• To complete, check all seat tilting function
Variant seat angle adjustment actuator in the
lifter/seat angle adjustment module:
• Bottom fixing bolt (3) with slot –
Loosen the fixing bolt with a screwdriver.
Remove the bolt.
• Top fixing bolt (2) secured with snap rings (1) –
Remove a snap ring using a screwdriver and
remove the bolt.
• Pull the actuator out.
• Insert a new actuator.
• Reassembly takes place in the reverse order.
• Connect the actuator cable to the cable harness.
• To complete, check all seat tilting function.
