7.11 Lighting unit
7.11.1 Replacing front headlight completely (LED lighting unit)
Note
Replacing an individual LED is not possible. If there is a defect, replace the entire front headlight.
Requirements:
• Jaw spanner 7 mm
• Allen key 3 mm
• oblique pliers
• cable binder
The position of the plugs is described in Chapter 4.2.
• Remove legrests.

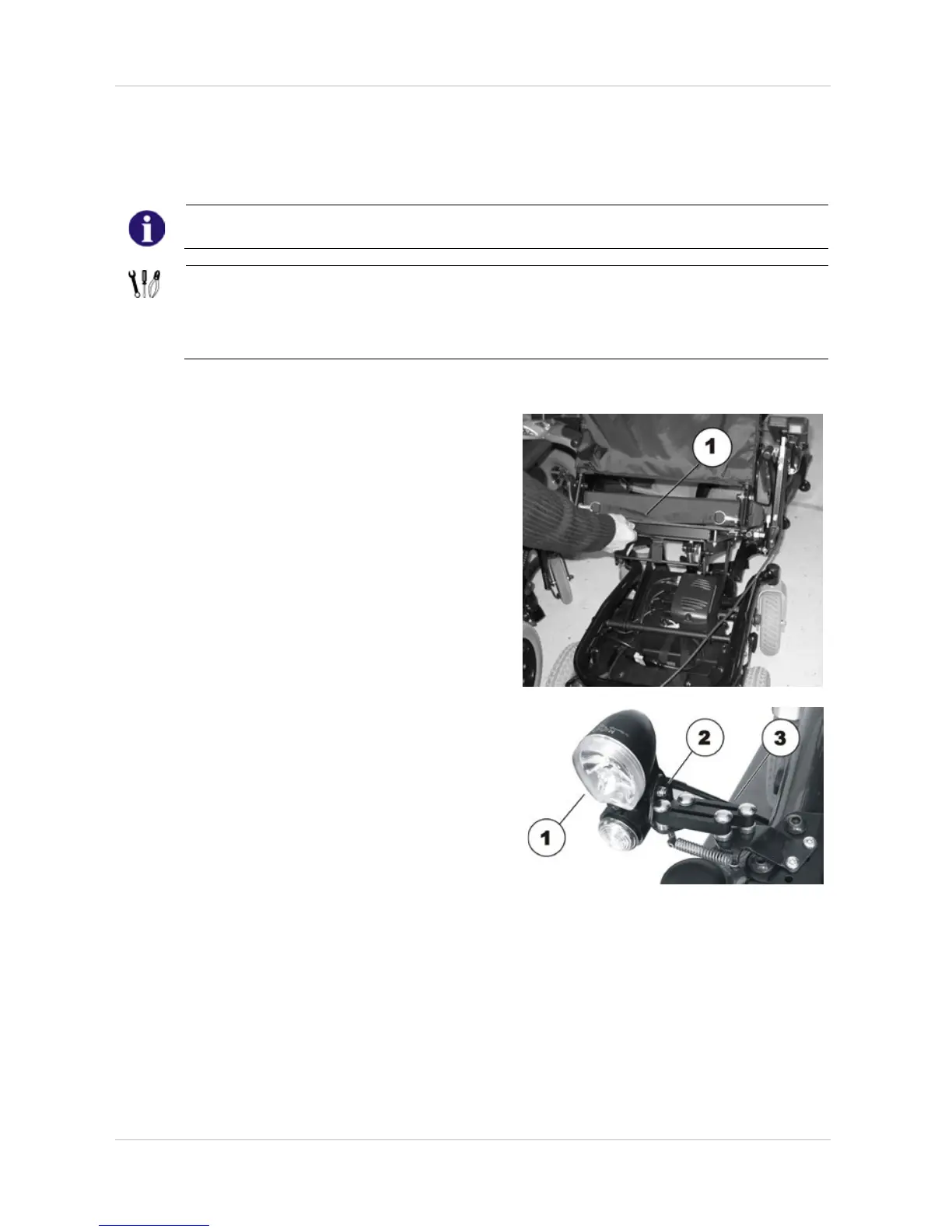

• Release seat (1) and tilt forwards.
• Disconnect the remote bus cable from the
electronics module or ACT.
• Lift the seat out of the front anchorage and
remove it. The seat has a heavy weight. Use
proper lifting techniques.
• Remove both battery cases as described in
Chapter 7.7.1.
• Remove the front headlight plug from the
lighting PCB.
• Free the cable or remove any cable ties.
• Loosen the nut (2) with a 7 mm jaw spanner
and a 3 mm Allen key.
• Remove the front headlight (1) from the lamp
holder (3).
• Reassembly takes place in the reverse order.
• To complete, check all vehicle functions.
