Invacare Bora - Wheelchair with Lifter

Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
19
4.1.2 Wheelchair with lifter

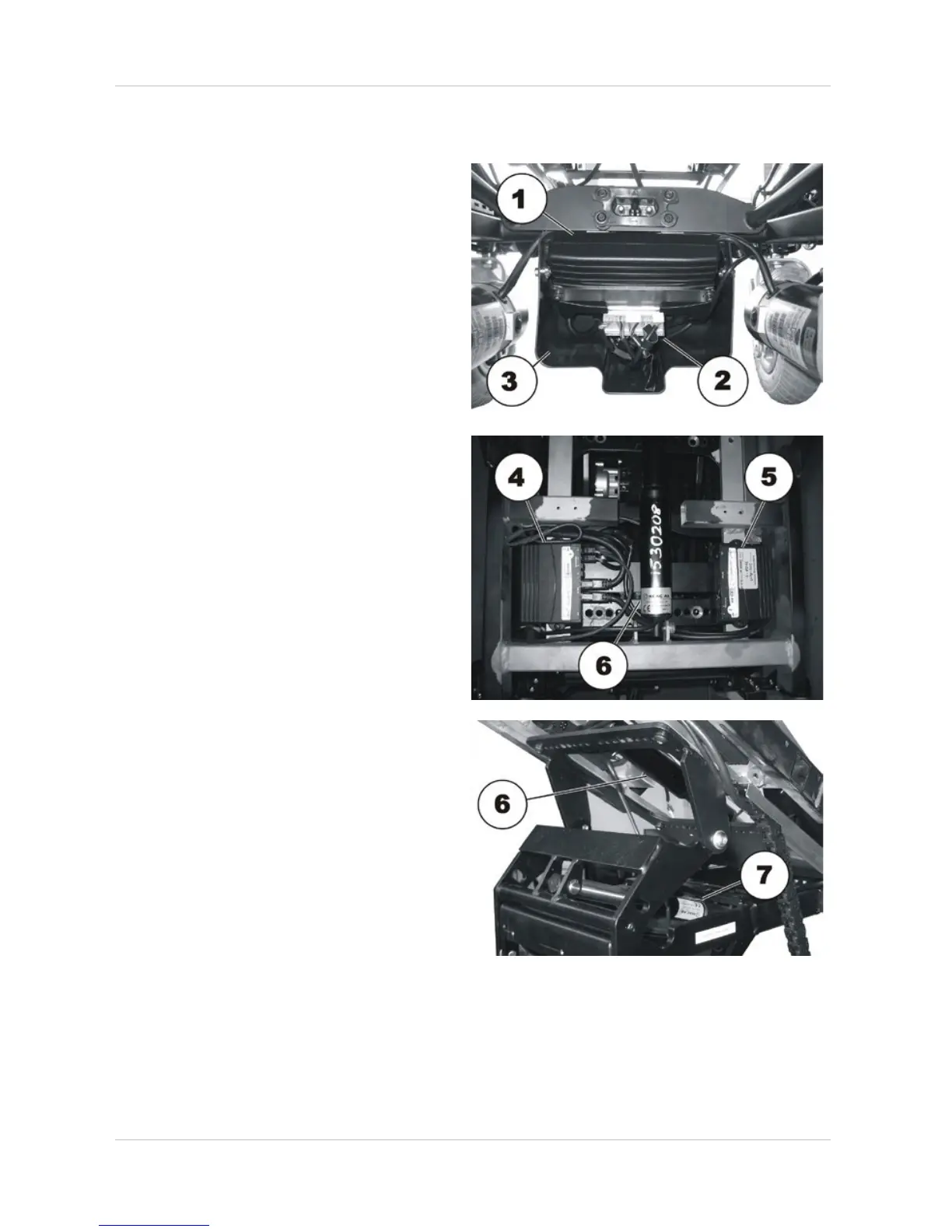

In front of the batteries under the
plastic cover:
1) Electronics module
2) Lighting PCB (optional)
3) Plastic cover
The electronics modules used are
described in Chapter 4.2.
Actuator module
4) Actuator module 1 (optional)
5) Actuator module 2 (optional)
6) Actuator motor backrest (optional)
The actuator modules are fitted under the
seat support.
Electric seat adjustment
6) Actuator motor backrest (optional)
7) Actuator motor seat tilting
