7.2.2 Replacing the motor

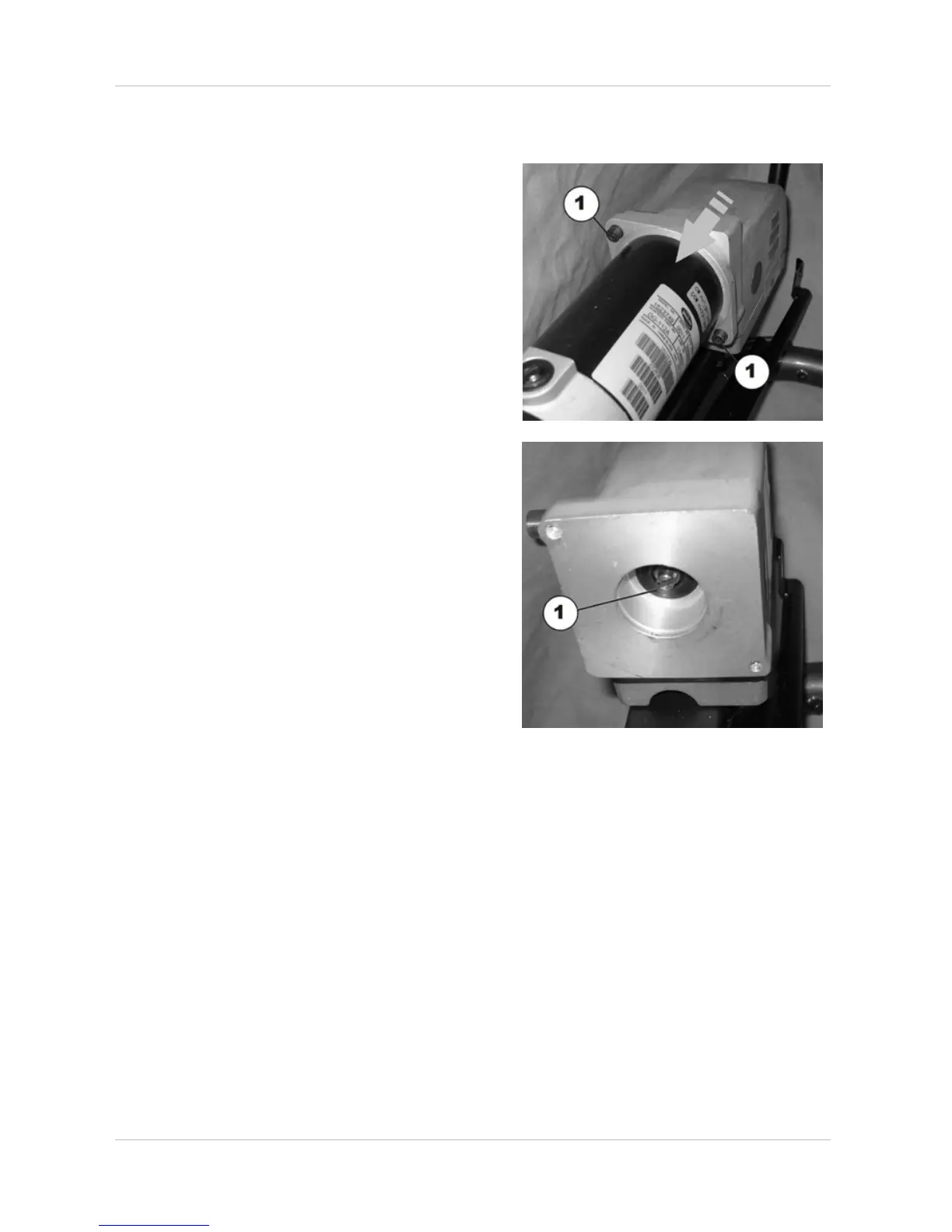

• Loosen the motor screw (1) with the 5 mm
Allen key.
• Remove the motor from the transmission.
• The motor is reassembled in reverse order to
disassembly.
• The motor must be carefully inserted into the
transmission to avoid damage. Observe the
position of the groove (1) in the transmission.
• The cable must be routed so that it does not
rub or get trapped.
• Insert the motor plug into the electronics
module.
• Secure the motor cable to the frame with
cable ties.
