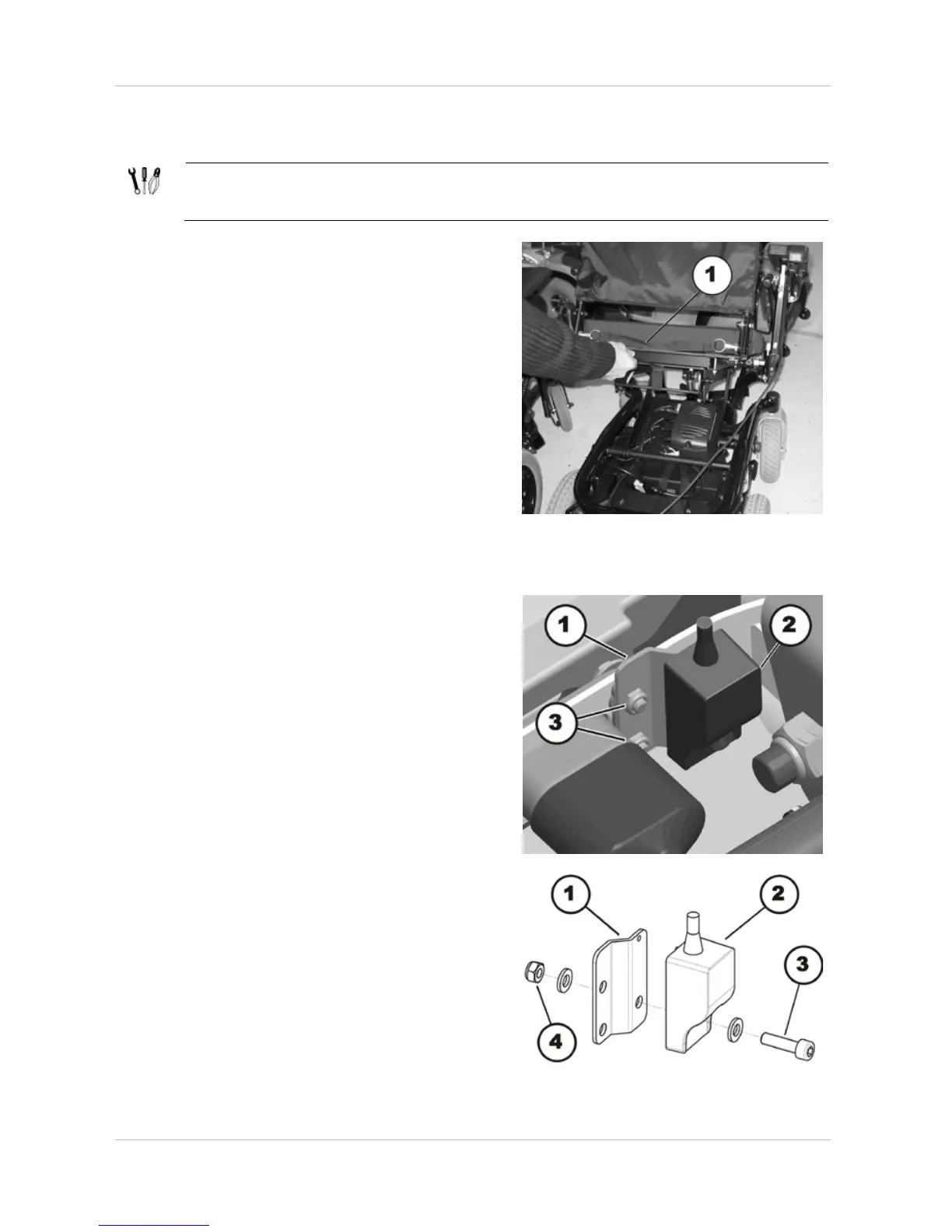

7.4 Replacing the G-Trac sensor
Requirements:
• 5 mm Allen key
• 10 mm socket wrench
• Switch the electronics OFF.
• Remove the legrests.
• Release the seat (1) and tilt forward.
• Disconnect the remote bus cable from the
electronics module or ACT.
• Lift the seat up out of its forward mounting
and remove completely. The seat has a
heavy weight. Use proper lifting techniques.
• Remove the battery boxes, as described in
chapter 7.7.1.
• Disconnect the cable of the G-Trac sensor
from the electronics module.
• Loosen and remove the nuts (3).
• Remove the G-Trac sensor holder (1)
together with the G-Trac sensor (2).
• Loosen and remove the self-locking nut (4)
and Allen screw (3), including the washers.
• Remove the G-Trac sensor (2) from the
G-Trac sensor holder (1).
• Replace the G-Trac sensor.
