7.5.2 Replacing the connecting cable of the operating hours counter
Requirements:
• Philipps screwdriver, size 2
• Side cutters
• Cable ties
• Switch the electronics OFF.
• Remove the legrests.

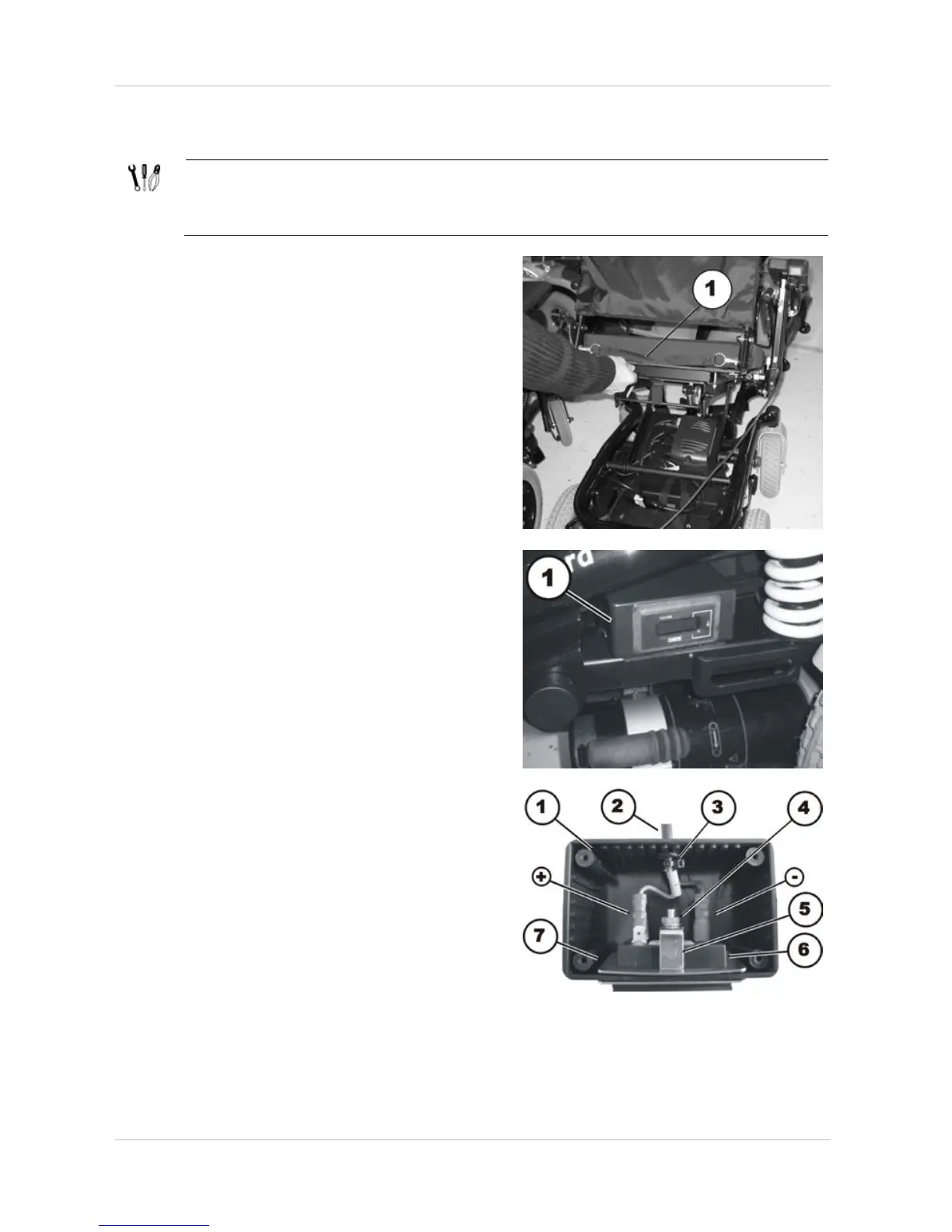

• Release the seat (1) and tilt forward.
• Disconnect the remote bus cable from the
electronics module or ACT.
• Lift the seat up out of its forward mounting
and remove completely. The seat has a
heavy weight. Use proper lifting techniques.
The operating hours counter is attached to the
frame with a Velcro strip.
• Disconnect the cable of the operating hours
counter from the drive motor.
• Pull the operating hours counter off of the
frame.
• Turn the operating hours counter over.
• Loosen and remove the four Philipps head
screws of the casing.
• Disconnect the plugs (+) & (-).
• Remove the cable ties (4).
• Carefully pull the connecting cable (2) of the
operating hours counter out of the casing (1).
• Replace the cable of the operating hours
counter.
