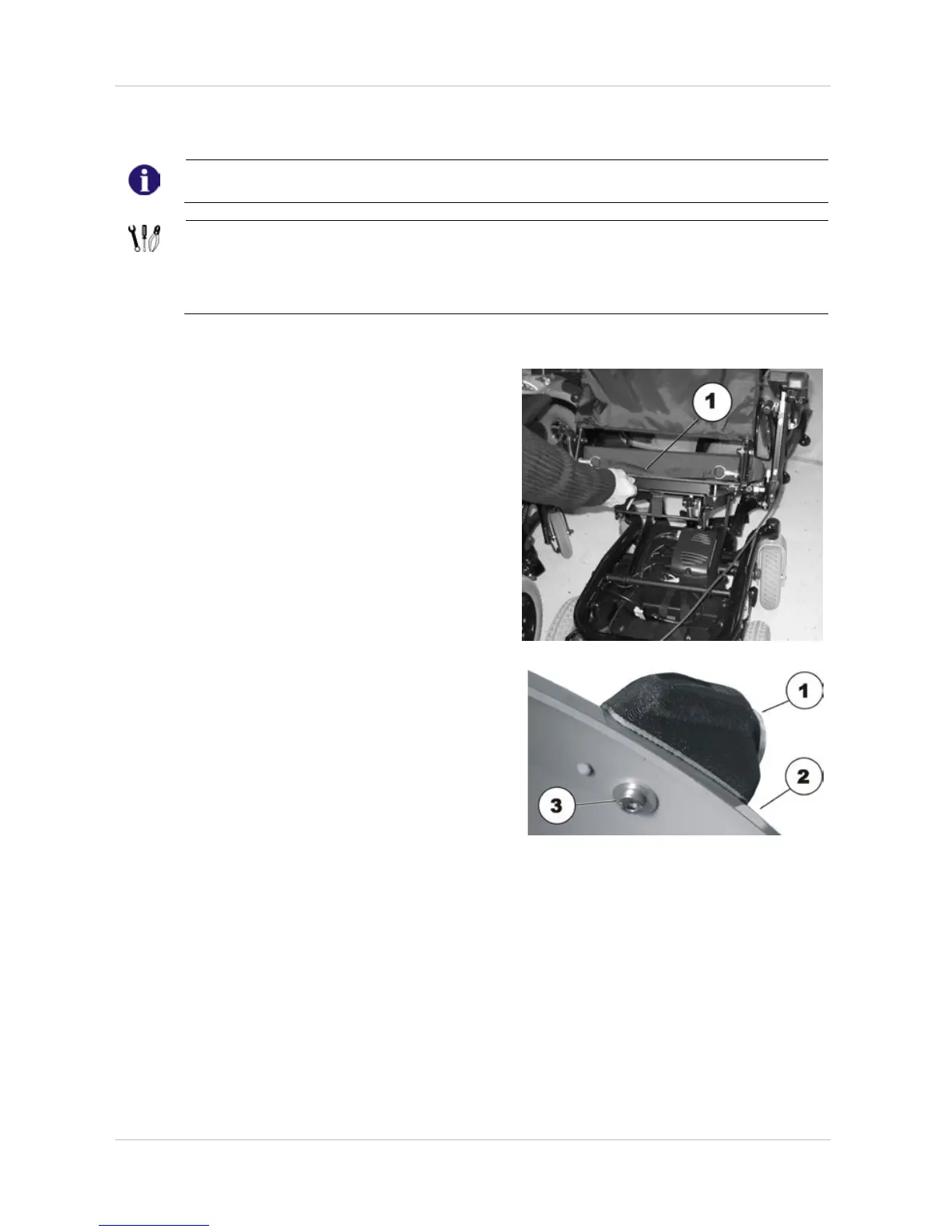

7.11.3 Replacing the rear light completely (LED lighting unit)
Note
Replacing an individual LED is not possible. If there is a defect, replace the entire rear light.
Requirements:
• Phillips screwdriver
• TX40 torx screwdriver
• oblique pliers
• cable binder
The position of the plugs is described in Chapter 4.2.
• Remove legrests.
• Release seat (1) and tilt forwards.
• Disconnect the remote bus cable from the
electronics module or ACT.
• Lift the seat out of the front anchorage and
remove it. The seat has a heavy weight. Use
proper lifting techniques.
• Remove both battery cases as described in
Chapter 7.7.1.
• Remove the drive wheel as described in
Chapter 7.15.
• Remove the rear light plug from the lighting
PCB.
• Free the cable or remove any cable ties.
• Undo the Phillips screw (1) with a Phillips
screwdriver and remove it together with the
washer.
• Remove the rear light (1) from the splash
guard and replace it.
• Reassembly takes place in the reverse order.
• To complete, check all vehicle functions.
