Invacare
®
- Bora/Spectra XTR
SERVICE MANUAL
85
Repairing the tyre:
ATTENTION: Explosion hazard!
The wheel will explode if you do not let the air out of the tyre before removing the wheel
rim!
• Always allow the air to escape completely from the wheel before you remove the rim.
• Remove valve cap.
• Exhaust the air from the tyre by pressing the
spring pin in the valve.

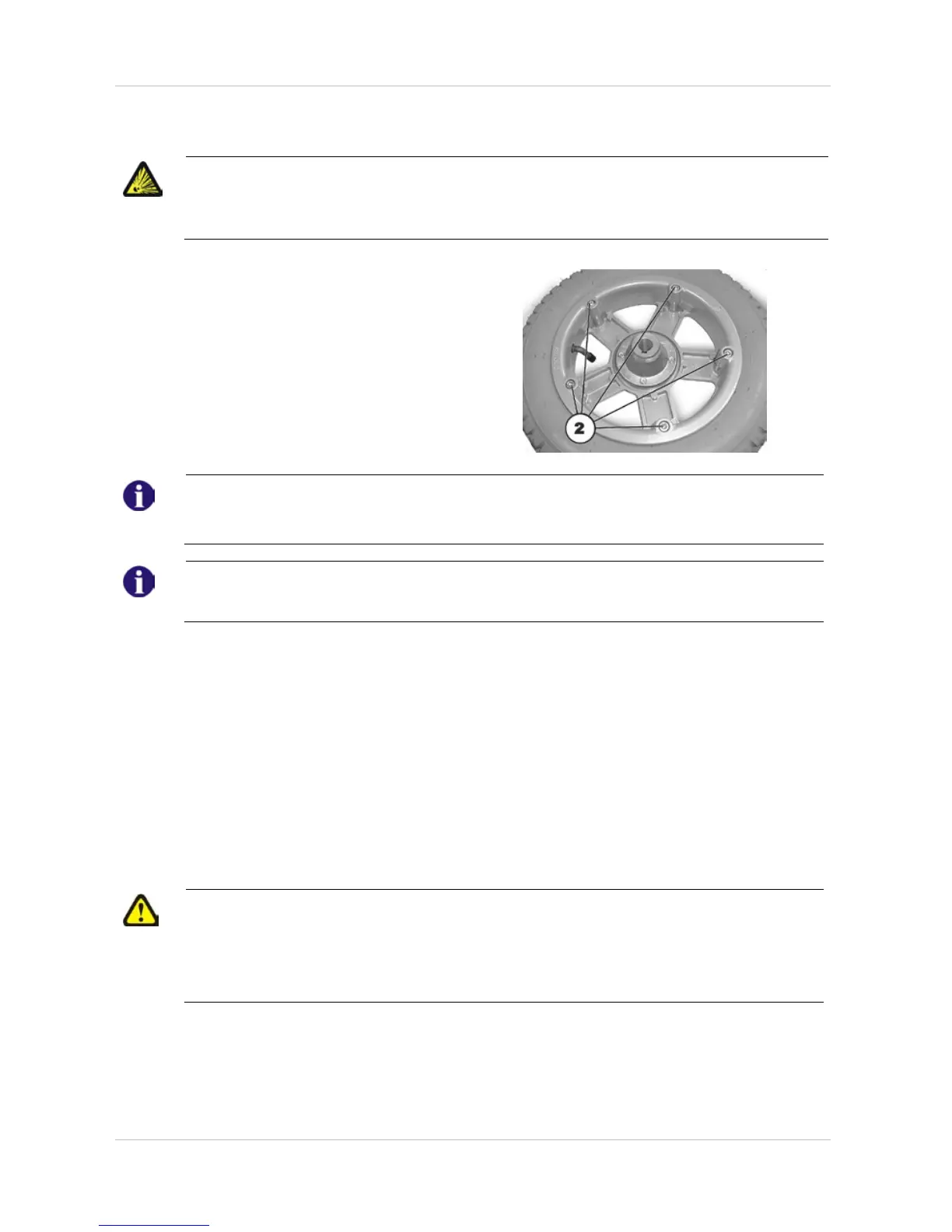

• Remove the 5 cylinder head bolts (reverse
side of the wheel, 2) using the Allen key.
• Remove the rim halves from the tyre.
• Remove the inner tube from the tyre.
• Repair inner tube and replace, or insert new.
Note
If the old inner tube is to be repaired and re-used, and has become wet during repair, you can
make replacement easier by sprinkling the inner tube with a little talcum powder.
Note
Refit the wheel in reverse order. Please ensure that the wheel is re-fitted on the same side and
in the same running direction as removed.
• Re-insert the rim halves into the tyre.
• Pump a little air into the tyre.
• Insert the socket head screws into the rim and tighten the screws to 10 Nm.
Make sure the inner tube is not crushed between the two rim halves.
• Make sure that the tyre is situated directly on the rim.
• Inflate the tyre to the recommended pressure.
• Check that the tyre is still situated directly and correctly on the rim.
• Screw the valve cap back on.
Installing the wheel:
ATTENTION: Danger of injury if the wheels come off!
If the drive wheels are insufficiently attached during assembly, they can come off during
driving.
• Tighten the TX40 countersunk screws to 30 Nm when mounting the drive wheels.
• Always use new screws with undamaged coating.
• Re-install the wheel.
• Insert the four new countersunk screws and tighten them to a torque of 30 Nm.
