SERVICE MANUAL
Invacare
®
- Bora/Spectra XTR
128

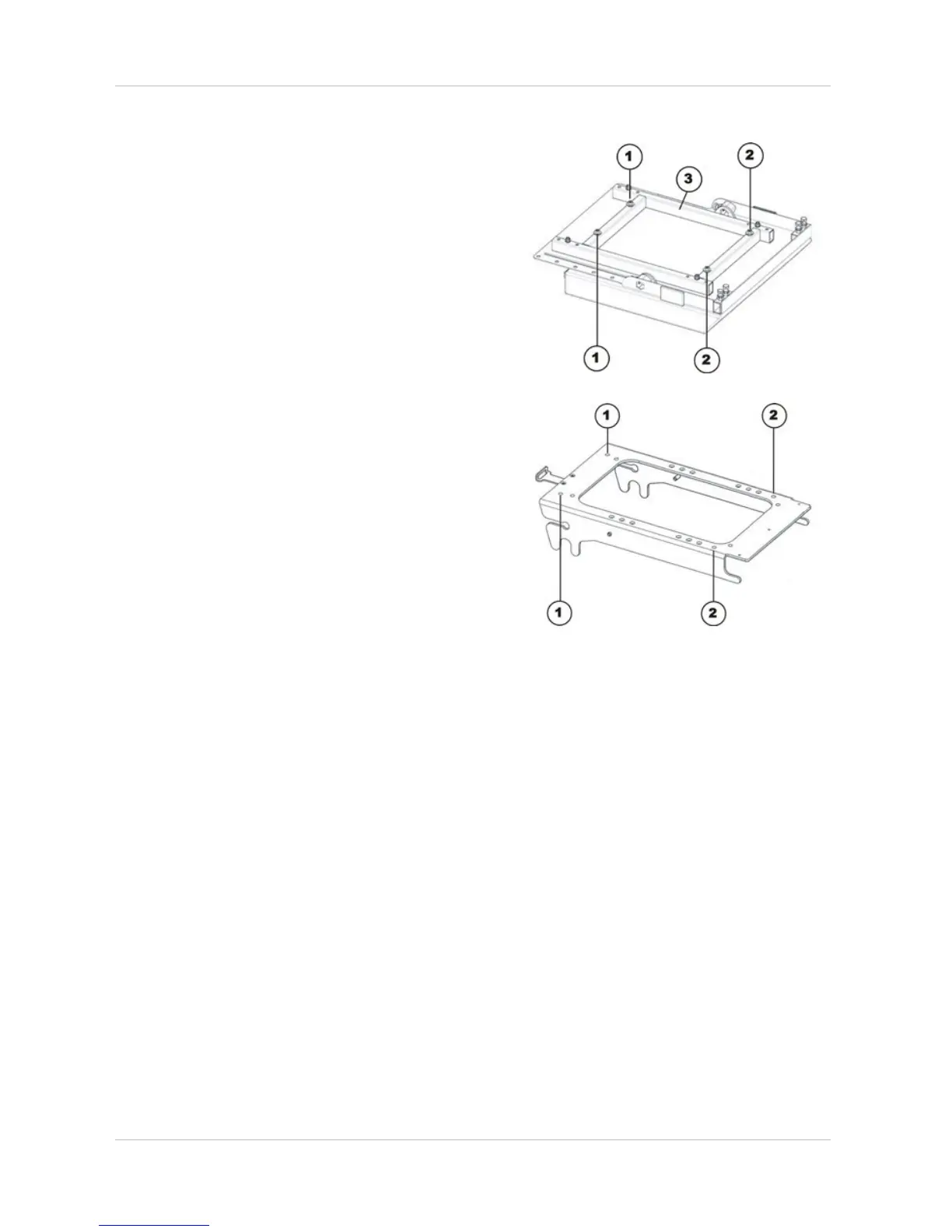

The picture shows where the drillholes for fixing
the seat frame (3) are located on the base frame.
• Rear drillholes (1)
• Front bolts (2)
The seat frame can only be fixed in one position
on the base frame.
The picture shows the seat frame with the
drillholes for the standard seat.
• Rear drillholes (1)
• Front drillholes (2)
