Note
When disassembling, take care of small parts such as screws and washers. Put all small parts
down so that they can be reassembled in the right sequence.

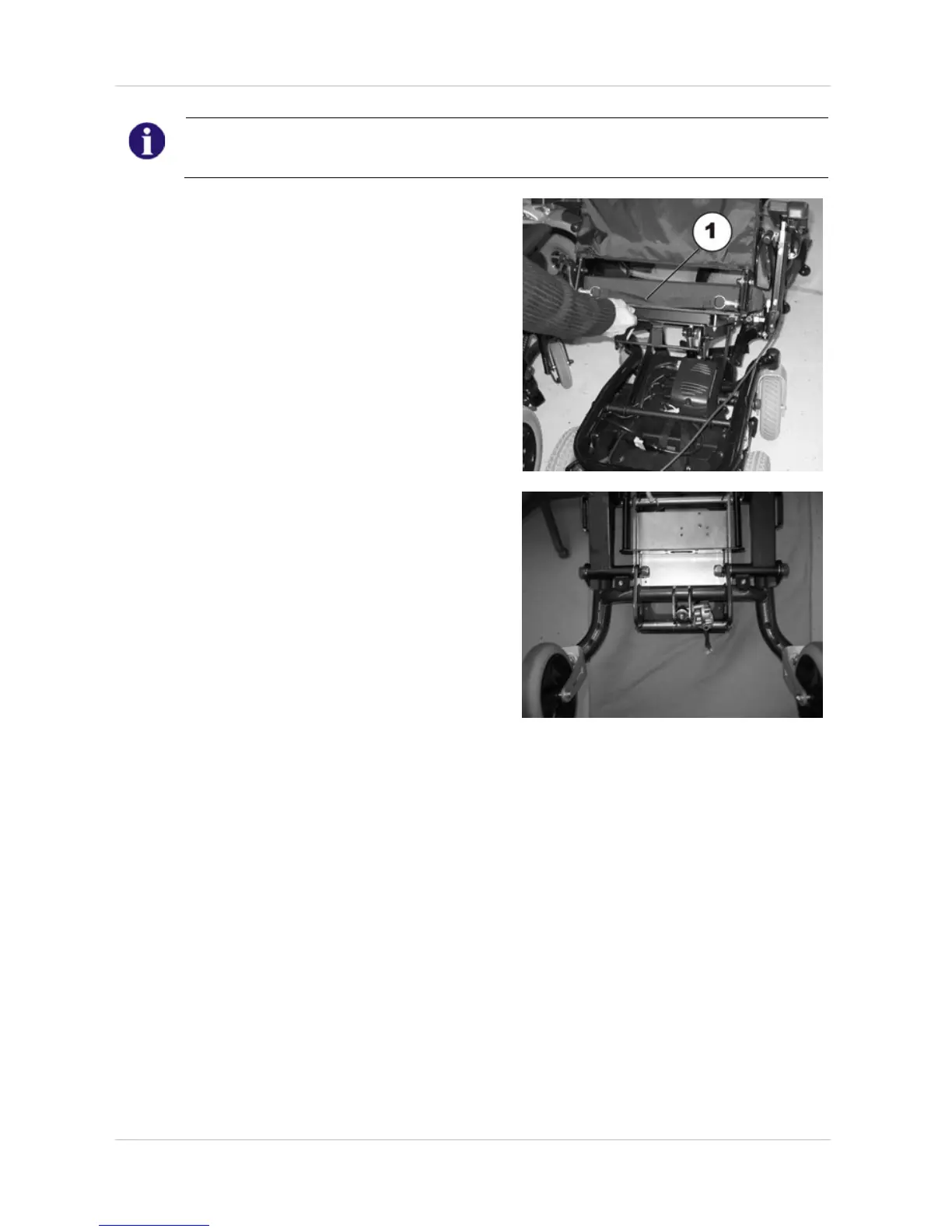

• Remove legrests.
• Release seat (1) and tilt forwards.
• Disconnect the remote bus cable from the
electronics module or ACT.
• Lift the seat out of the front anchorage and
remove it. The seat has a heavy weight. Use
proper lifting techniques.
• Remove both battery cases as described in
Chapter 7.7.1.
• Disconnect the motor plug from the motor to
be replaced from the electronics module.
• The motor cable is secured inside the frames
with cable ties. Remove the cable ties with
the oblique pliers.
• Place the vehicle upside down so that the
wheels are facing upwards. The vehicle has a
heavy weight. Use proper lifting techniques.
• Remove the wheel as described in Chapter
7.15.
