• Loosen and remove the screws of the seat
frame adjustment (A) with a T40 Torx
wrench.
• Loosen and remove the screws of the
fixation of the legrest mounting brackets
(B).

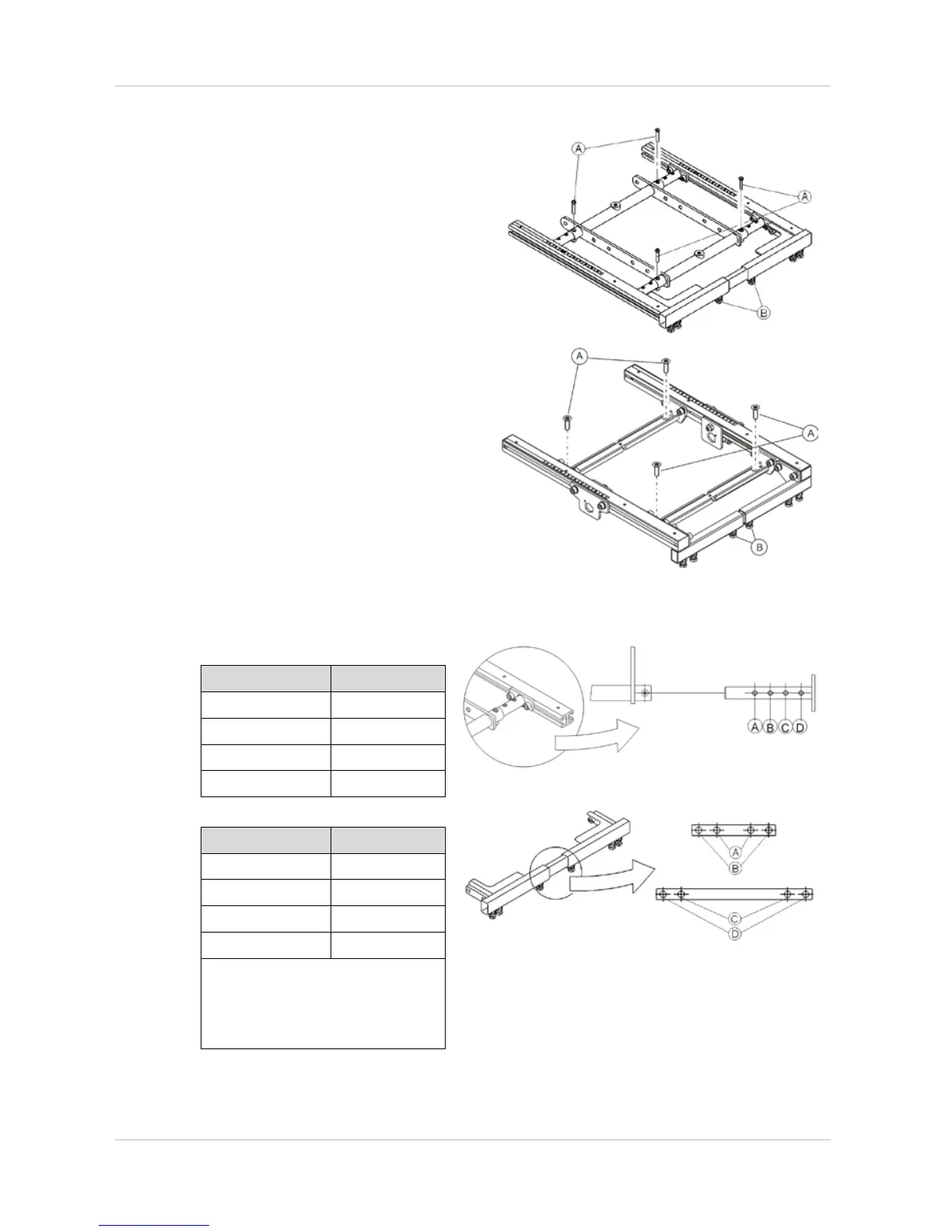

• Adjust the seat frame and the legrest fixation to the desired width according to the following
illustrations and tables:
Seat frame:
Screw position Seat width
A 530 mm
B 480 mm
C 430 mm
D 380 mm
Leg supports connection:
Screw position Seat width
A 380 mm
B 430 mm
C 480 mm
D 530 mm
Note
When switching from 430 mm to
480 mm and the other way around,
the fixation of the legrests must be
replaced.
• Reposition the screws and tighten them again.
• Install the seat plate or the sling seat.
• Reposition the seat cushion.
