SERVICE MANUAL
Invacare
®
- Bora/Spectra XTR
124

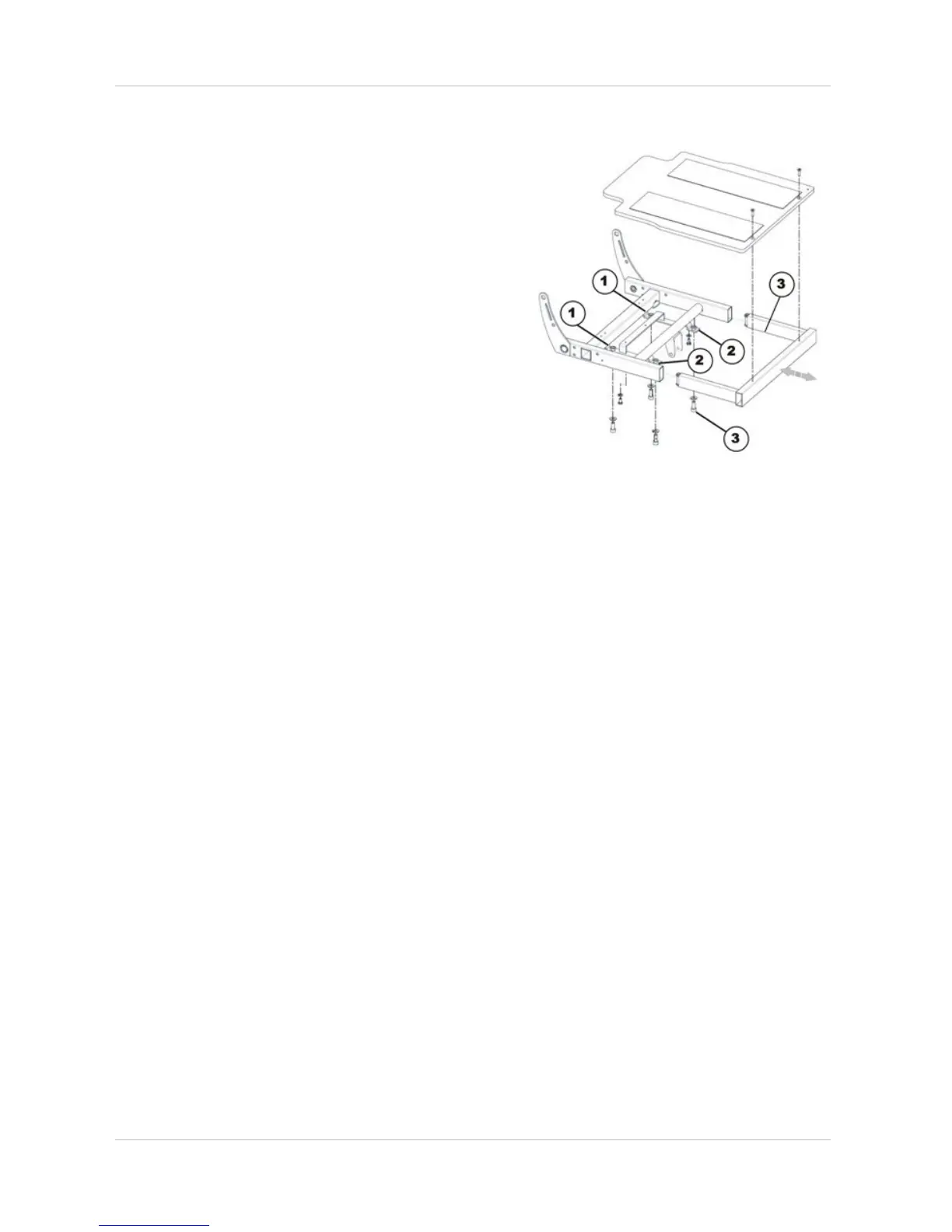

Flex2 seat
The Flex2 seat is fixed directly to the base frame.
• Rear drillholes (1)
• Front drillholes (2)
To adjust the seat depth, proceed as follows:
• Loosen screws (3)
• Push the front seat section forwards or
backwards
• Retighten the screws (3)
Modulite seate
The seat depth is adjusted by shifting the position of the backrest.
See User Manual.
