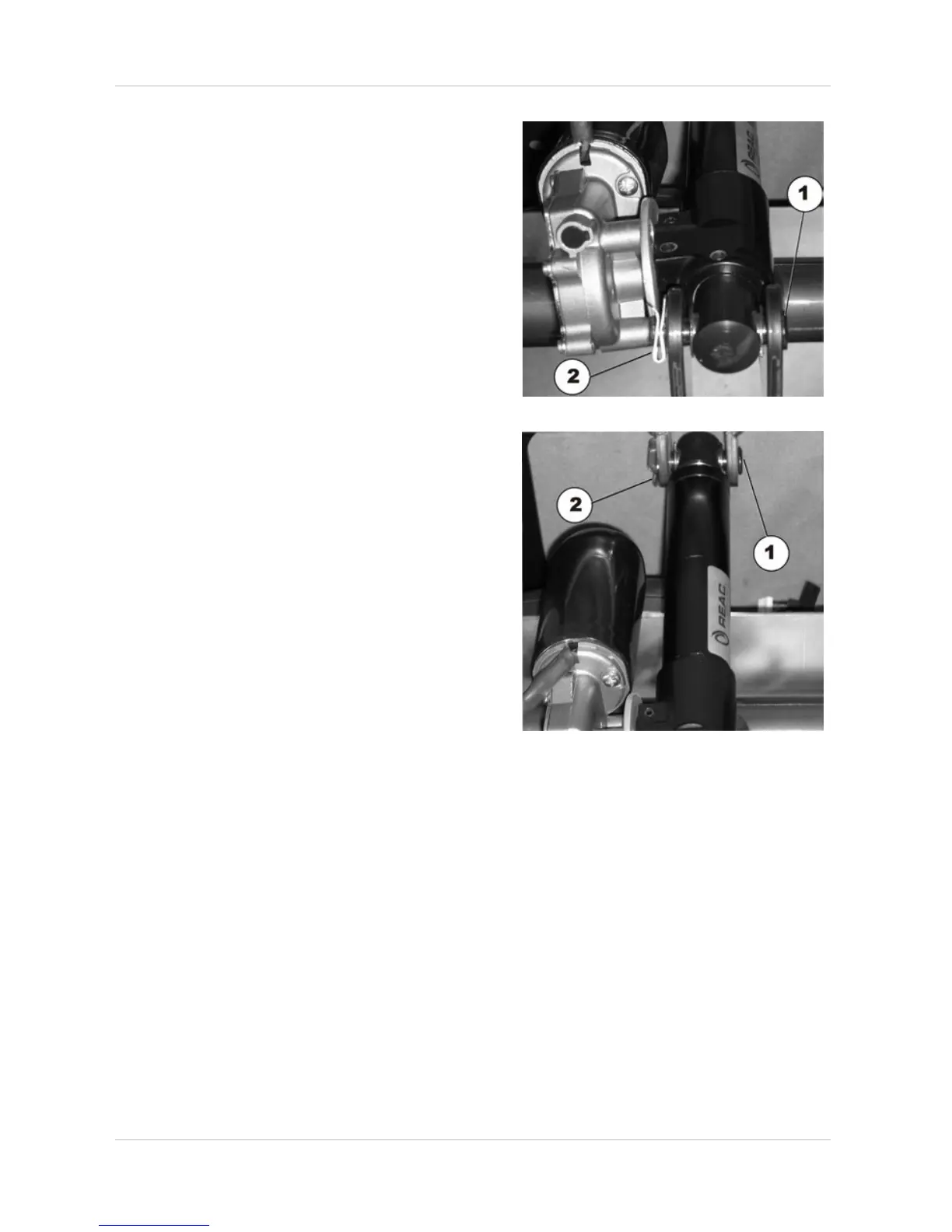

• Remove the SL fuse (2) on the bottom fixing
bolt (1) with the screwdriver.
• Pull the fixing bolt (1) out.
• Remove the SL fuse (2) on the top fixing bolt
(1) with the screwdriver.
• Pull the fixing bolt (1) out.
• Pull the adjustment spindle with adjusting
motor out.
• Insert a new adjustment spindle with adjusting
motor.
• Reinsert the fixing bolts and SL fuses. Fix the
SL fuses securely to the fixing bolt with the
hammer.
• Reinsert the adjusting motor plug into the
electronics module.
• Secure the adjusting motor cable to the frame
with cable ties. The cable must be routed so
that it does not rub or get trapped.
• To complete, check all seat tilting functions.
