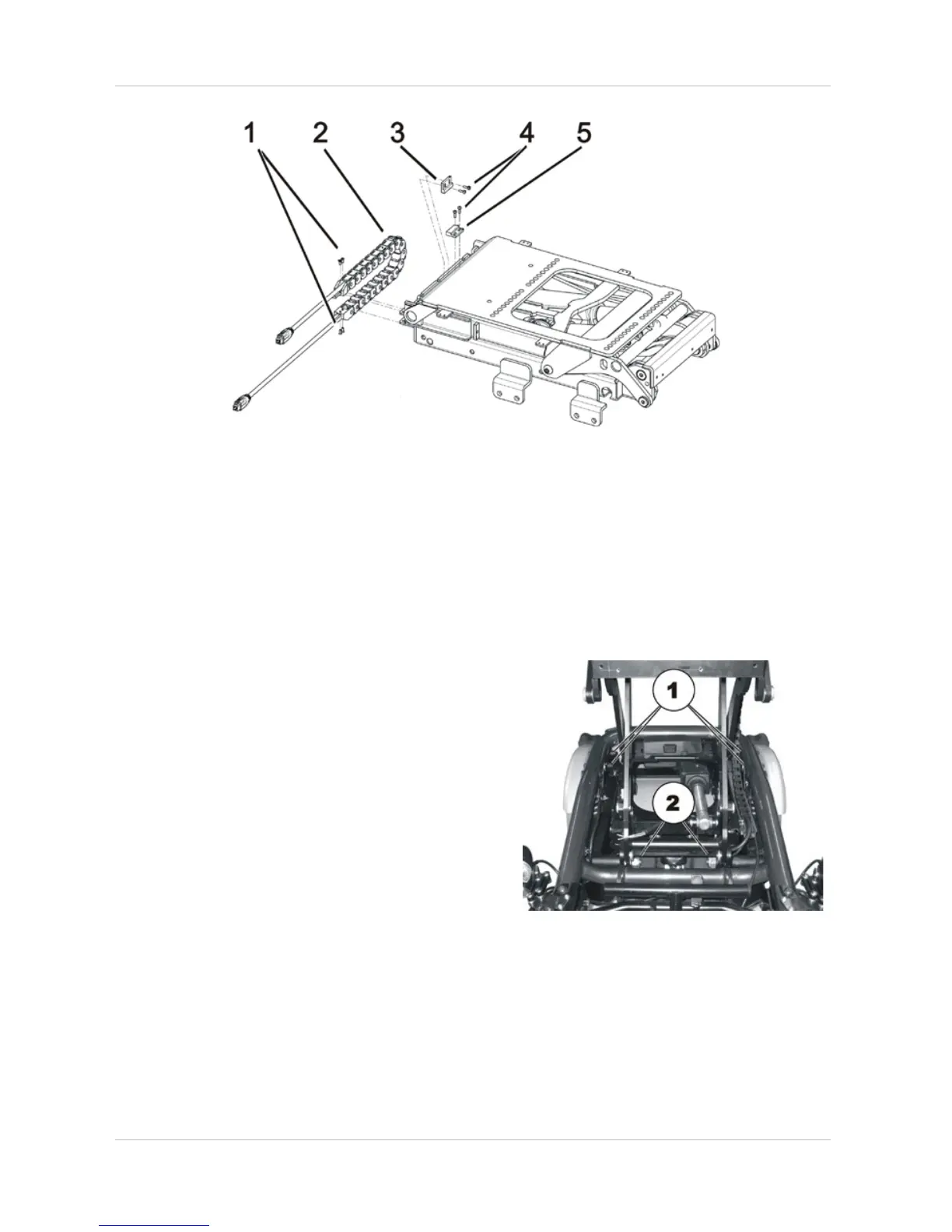

• Use the Phillips screwdriver to loosen the screws (1).
• Remove the power supply chain (2).
• Use the Phillips screwdriver to loosen the screws (4).
• Additionally the sensor (5) is secured with nuts.
Loosen the nuts while holding a 6 mm wrench against.
• Remove the magnet (3).
• Remove the sensor (5).
• Loosen the four bolts (1) with a 5 mm Allen
key and a 13 mm jaw spanner and remove.
• Loosen the two bolts (2) with a 24 mm jaw
spanner and a 24 mm ring spanner and
remove.
• Lift the lifter out of the vehicle frame and
replace.
• Reassembly takes place in the reverse order.
• To complete, check all vehicle functions.
