Goodrive200 inverters Function codes
113
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
stability of the system.
Setting range:0.0~100.0%
P09.09
Output
upper limit
of PID
These parameters are used to set the upper and
lower limit of the PID adjustor output.
100.0 % corresponds to Max. frequency or the
Max. voltage of ( P04.31)
Setting range of P09.09: P09.10~100.0%
Setting range of P09.10: -100.0%~P09.09
100.0%
○
P09.10
Output
lower limit
of PID
0.0% ○
P09.11
Feedback
offline
detection
value

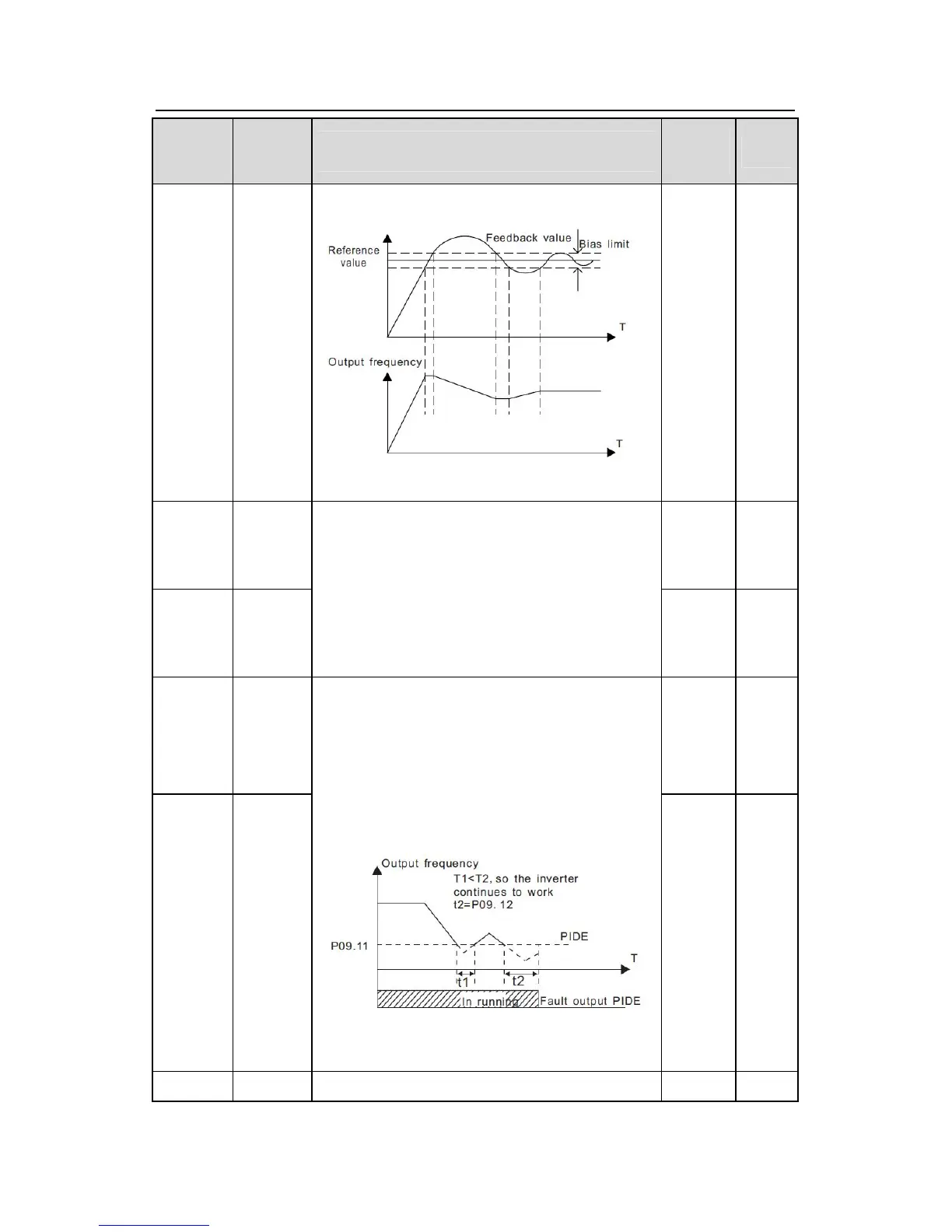

Set the PID feedback offline detection value,
when the detection value is smaller than or equal
to the feedback offline detection value, and the
lasting time exceeds the set value in P09.12, the
inverter will report “PID feedback offline fault” and
the keypad will display PIDE.
Setting range of P09.11: 0.0~100.0%
Setting range of P09.12: 0.0~3600.0s
0.0% ○
P09.12
Feedback
offline
detection
time
1.0s ○
P09.13
PID 0x0000~0x1111 0x0001
○
