Goodrive200 inverters Basic operation instruction
158

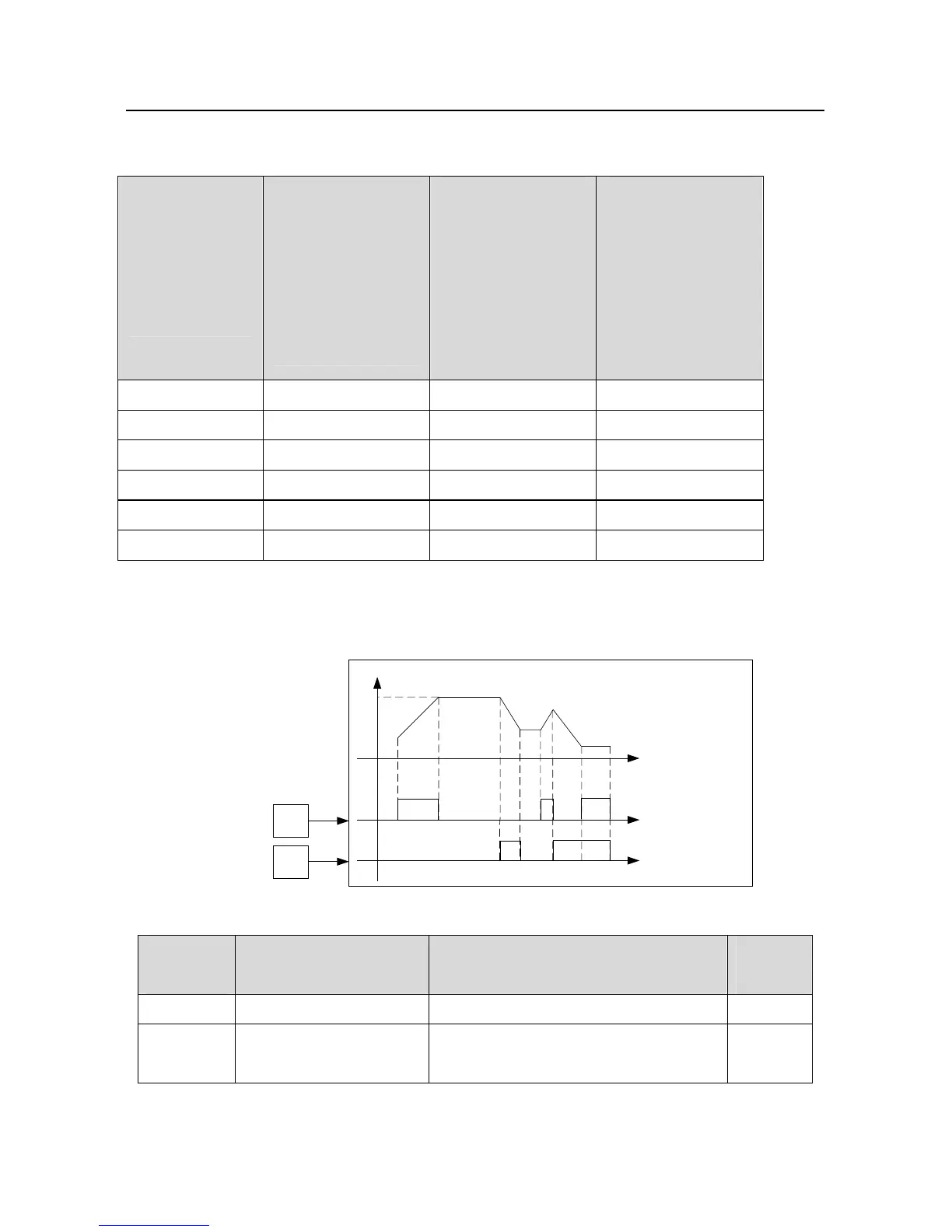

Goodrive200 series inverters support the shifting between different reference channels and the
detailed shifting rules is as below:
Current
reference
channel
P00.09
Multi-function
terminal function
13
Shifting from A
channel to B
channel
Multi-function
terminal function
14
Shifting from
combination
setting to A
channel
Multi-function
terminal function
15
Shifting from
combination
setting to B
channel
A B / /
B A / /
A+B / A B
A-B / A B
Max(A,B) / A B
Min(A,B) / A B
Note: “/” means the multi-function terminal is invalid under the current reference channel.
When select multi-function terminal UP (10) and DOWN (11) to set the internal assistant frequency,
P08.44 and P08.45 can be set to increase or decrease the set frequency quickly.
Sx
Sy
Up terminal function selection=10
DOWN terminal function
selection=11
UP terminal state
DOWN terminal state
T
F
T
T
UP terminal frequency increasing integral rate P08.44
DOWNterminal frequency increasing integral rate P08.45
Relative parameters list:
Function
code
Name
Detailed instruction of parameters Default
value
P00.03 Max. output frequency
P00.04~400.00Hz 50.00Hz
P00.04
Upper limit of the running
frequency
P00.05~P00.03 50.00Hz
