Goodrive200 inverters Function codes
56
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
frequency
of DC
braking
braking when running frequency reaches starting
frequency determined by P1.09.

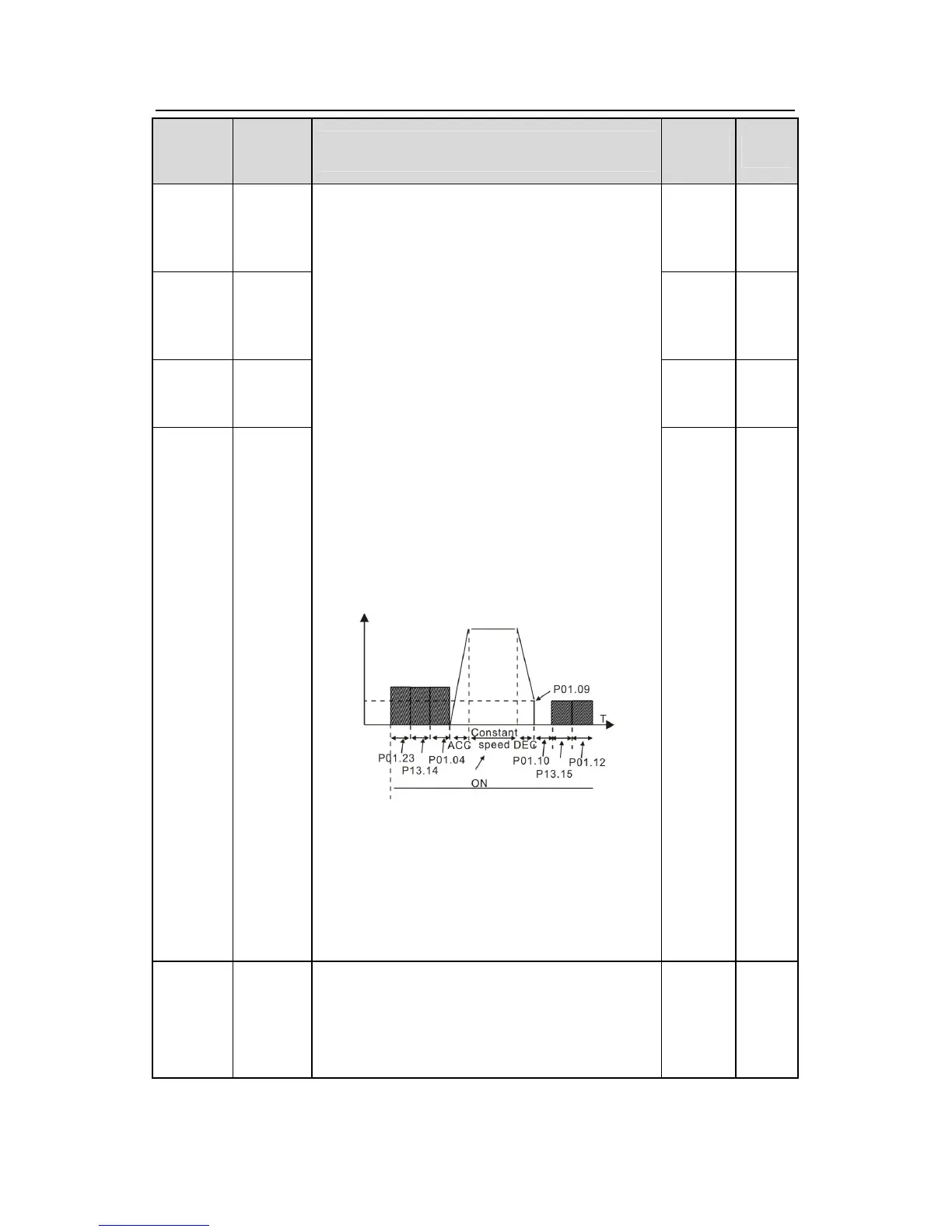

Waiting time before DC braking: Inverters block
the output before starting the DC braking. After
this waiting time, the DC braking will be started
so as to prevent over-current fault caused by DC
braking at high speed.
DC braking current：The value of P01.11 is the
percentage of rated current of inverter. The
bigger the DC braking current is, the greater the
braking torque is.
DC braking time: The retention time of DC brake.
If the time is 0, the DC brake is invalid. The
inverter will stop at the set deceleration time.
Setting range of P01.09: 0.00Hz~P00.03
(the Max. frequency)
Setting range of P01.10: 0.00~50.00s
Setting range of P01.11: 0.0~100.0%
Setting range of P01.12: 0.00~50.00s
P01.10
Waiting
time before
DC braking
0.00s ○
P01.11
DC braking
current
0.0%
○
P01.12
DC braking
time
0.00s
○
P01.13
Dead time
of
FWD/REV
rotation
During the procedure of switching FWD/REV
rotation, set the threshold by P01.14, which is as
the table below:
0.0s ○
