Goodrive200 inverters Function codes
77
Function
code
Name
Detailed instruction of parameters
Default
value
Modify

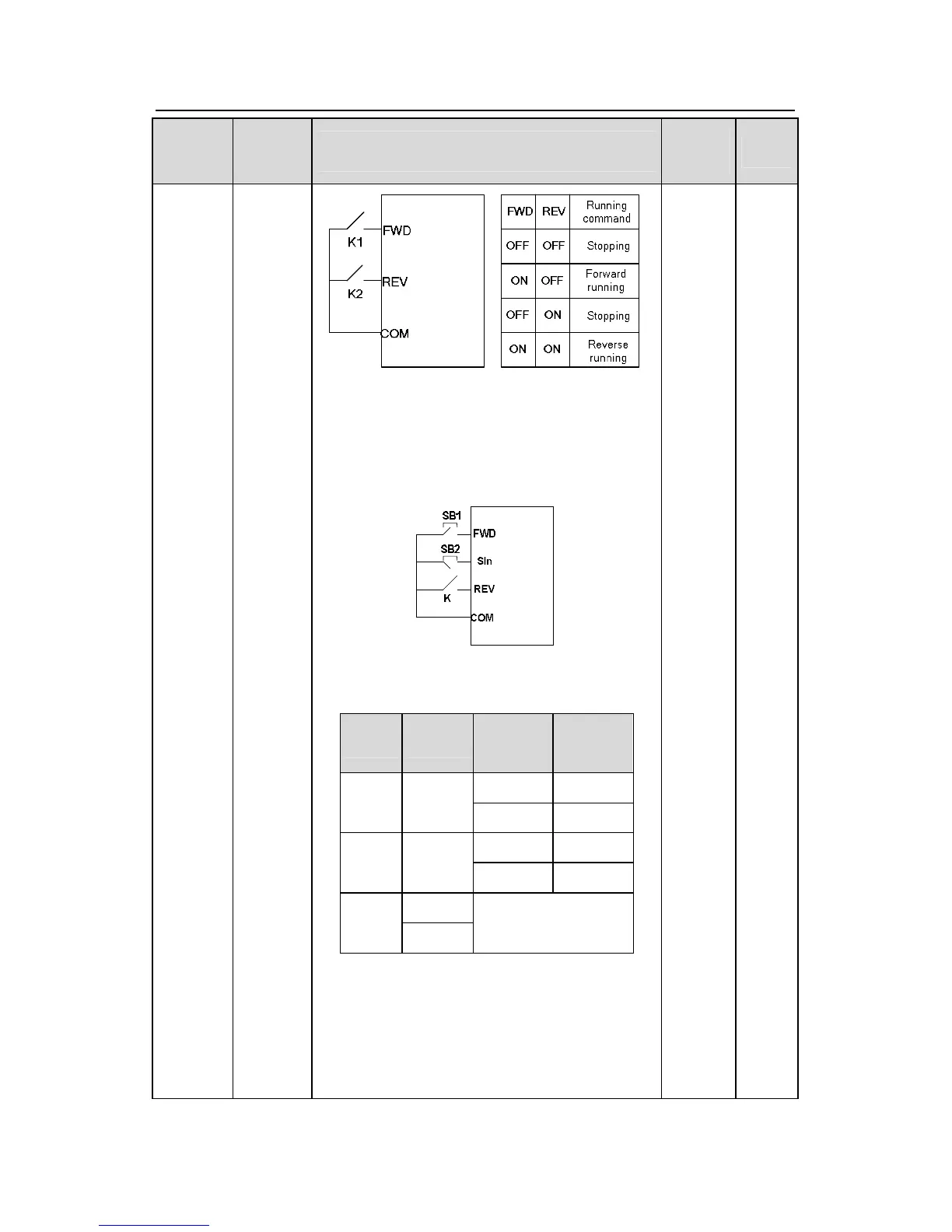

2:3-wire control 1; Sin is the enabling terminal on
this mode, and the running command is caused
by FWD and the direction is controlled by REV.
Sin is natural closed.
The direction control is as below during
operation:
Sln REV
Previous
direction
Current
direction
ON OFF→ON
Forward
Reverse
Reverse
Forward
ON ON→OFF
Reverse
Forward
Forward
Reverse
ON→
OFF
ON
Decelerate to stop
OFF
3:3-wire control 2; Sin is the enabling terminal on
this mode, and the running command is caused
by SB1 or SB3 and both of them control the
running direction.NC SB2 generates the stop
command.
